ICX-FieldHawk-U USB / Networked Real-Time Spectrum Analyzer

A compact, FPGA-based real-time spectrum analyzer family that balances RF performance, cost, and size. USB models connect over a single Type-C cable for both power and data; networked models add Gigabit Ethernet. Coverage runs from 9 kHz to 4.5, 6.3, 8.5, or 40 GHz depending on model, with up to 100 MHz of analysis bandwidth, sweep speed beyond 1 THz/s, and a unified API across the whole range.

SA/NX Product Manual · V1.0 / dc-51306202 · Berkeley Nucleonics Corporation
ICX-FieldHawk-U USB real-time spectrum analyzer
Branding & verification notes. This Product Manual covers the Berkeley Nucleonics ICX-FieldHawk-U family of compact USB and networked real-time spectrum analyzers. The analysis software is SpecICX. Model designators in the specification tables are the manufacturer series codes carried through unchanged: SAN / SAM / SAE are the USB-connected models, and NXN / NXM / NXE are their Gigabit-Ethernet equivalents. All specification values, units, and tolerances are reproduced exactly from the source manual, with light reordering for readability only. Items to confirm, marked "verify": the BNC document and revision identifier against the source V1.0 / dc-51306202 (verify); the antenna part numbers under Options 34 and 35 if BNC assigns ANT-series codes such as ANT-100G (verify); and the SpecICX release build strings quoted under Test Conditions (verify they carry to BNC release builds).

1Overview

The ICX-FieldHawk-U family delivers excellent RF performance in a compact, integration-ready package while holding cost down. The instruments suit space- and cost-constrained applications, from automated test racks to distributed monitoring nodes. A single software environment, SpecICX (SAStudio4), drives the whole range, and one unified API spans every model.

Well-balanced performance, cost, and size

The SAN, SAM, NXN, and NXM products share a compact design that delivers strong RF performance while holding cost efficiency. Their miniaturization allows easy integration into automated test systems, preserving RF performance such as spectrum purity while reducing deployment and operational costs. That balance makes them particularly suited to space- and cost-constrained work.

USB and Ethernet ports

The SAN and SAM series feature USB connectivity supporting USB 3.0 and 2.0 interfaces. The NXN and NXM series offer Ethernet connectivity compatible with 1000M/100M networks.

A wide range of models

The SAN and NXN series focus on cost efficiency, with three frequency options: 4.5, 6.3, and 40 GHz. The SAM and NXM series prioritize performance, with 6.3 and 8.5 GHz options. The mix of interface types, frequency ranges, and cost points delivers an optimized choice for a wide variety of applications.

Unified API

All series and models use one consistent API, so hardware can migrate across the family with no code changes. The API supports C/C++, C#, Python, MATLAB, Qt, and LabVIEW on both Windows and Linux.

Rich standard measurement functions

A broad set of advanced measurements ships standard. They include channel power, occupied bandwidth, X dB bandwidth, harmonic measurement, SEM, AM and FM demodulation, and automatic phase noise analysis.

2Model Family

The family spans economy and performance tiers across four frequency points, with a USB model and an Ethernet model at each position. The diagram below maps every model to its interface, performance tier, and maximum frequency.

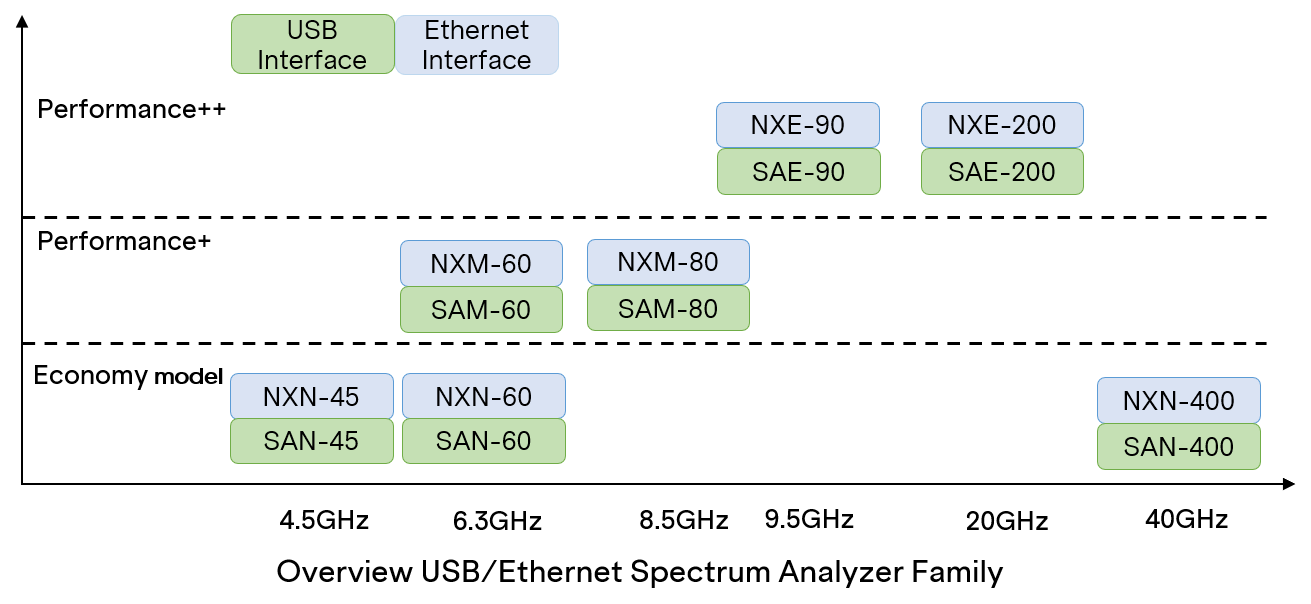

USB and Ethernet spectrum analyzer family by performance tier and maximum frequency
Figure 2-1. Model family overview. Green blocks are USB models (SAN/SAM/SAE); blue blocks are the Ethernet equivalents (NXN/NXM/NXE).
TierFrequencyUSB modelEthernet model
Economy9 kHz to 4.5 GHzSAN-45NXN-45
Economy9 kHz to 6.3 GHzSAN-60NXN-60
Economy9 kHz to 40 GHzSAN-400NXN-400
Performance+9 kHz to 6.3 GHzSAM-60NXM-60
Performance+9 kHz to 8.5 GHzSAM-80NXM-80
Performance++9.5 GHz tierSAE-90NXE-90
Performance++20 GHz tierSAE-200NXE-200
Detailed specifications below are published for the SAN-45, SAN-60, SAM-60, SAM-80, and SAN-400 models and their NX equivalents. The SAE/NXE performance++ models appear in the family overview; their full specifications are tracked separately. (verify SAE/NXE detailed specs against the published BNC datasheet.)

3Operating Modes

SpecICX offers seven main operating modes: Standard Spectrum Analysis, IQ Streaming, Power Detection Analysis, Real-time Spectrum Analysis, Phase Noise Measurement, Digital Demodulation (option), and Harmonics Analysis.

Standard Spectrum Analysis

This mode provides a wide range of measurement functions, including full-span spectrum sweep, channel power, OBW, ACPR, IM3, and SEM. It also supports spectrum recording and playback. Combined with auxiliary tools such as signal tracking, peak table, and amplitude correction, it delivers a one-stop platform for comprehensive spectrum checks.

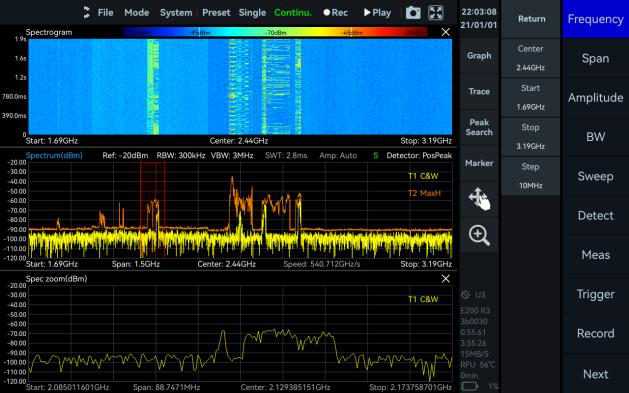

Standard Spectrum Analysis mode in SpecICX
Figure 3-1. Standard Spectrum Analysis mode.

IQ Streaming

This mode supports up to 100 MHz of analysis bandwidth and allows IQ data acquisition through multiple trigger methods. It provides IQ time-domain waveform display, spectrum and spectrogram views, AM and FM demodulation, and digital down conversion (DDC).

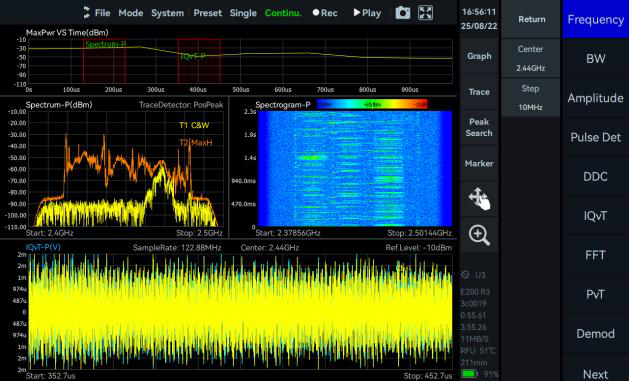

IQ Streaming mode in SpecICX
Figure 3-2. IQ Streaming mode.

Power Detection Analysis

This mode enables detection and analysis of time-domain signals within the analysis bandwidth. It suits applications focused on in-band power-versus-time relationships, such as pulse signal measurements.

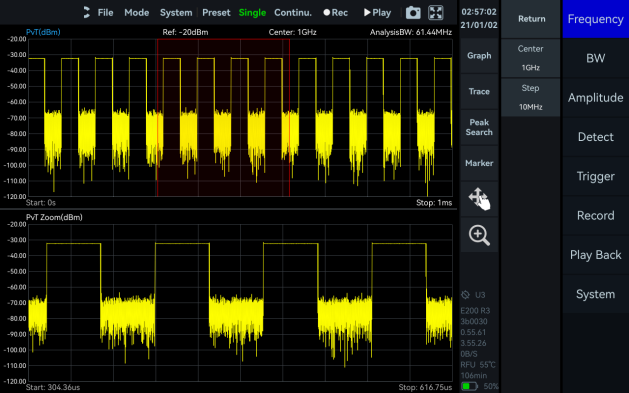

Power Detection Analysis mode in SpecICX
Figure 3-3. Power Detection Analysis mode.

Real-time Spectrum Analysis

This mode is powered by a high-speed FPGA-based FFT engine. It features strictly gapless and overlap-free FFT, achieving true real-time monitoring across the full bandwidth.

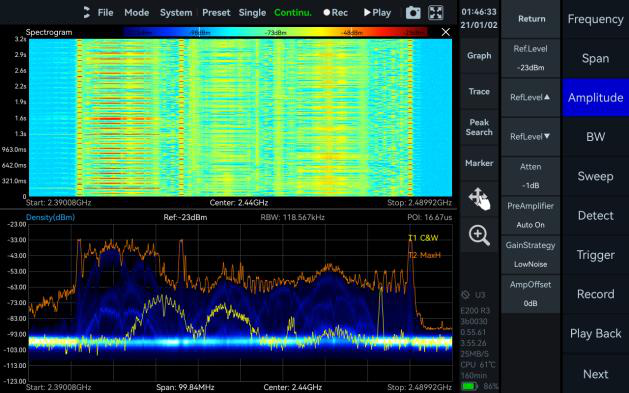

Real-time Spectrum Analysis mode in SpecICX
Figure 3-4. Real-time Spectrum Analysis mode.

Digital Demodulation (option)

This mode supports 2ASK, 2FSK, 4FSK, GMSK, BPSK, QPSK, 8PSK, 16QAM, 64QAM, 128QAM, and 256QAM signals.

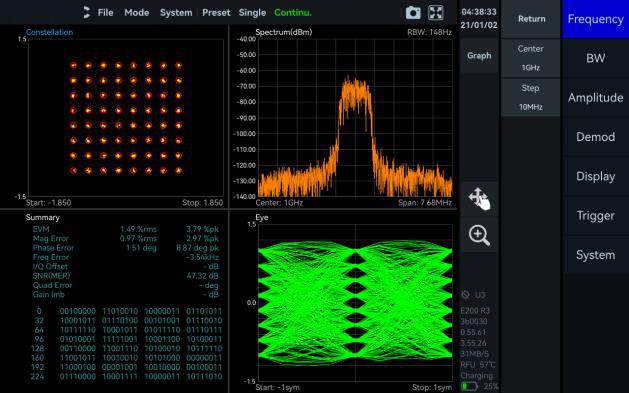

Digital Demodulation mode in SpecICX showing constellation and eye diagram
Figure 3-5. Digital Demodulation mode (option), constellation and eye diagram.

Harmonics Analysis

This mode supports detection and measurement of up to 10 harmonic components, including harmonic peaks, harmonic channel power, and total harmonic distortion.

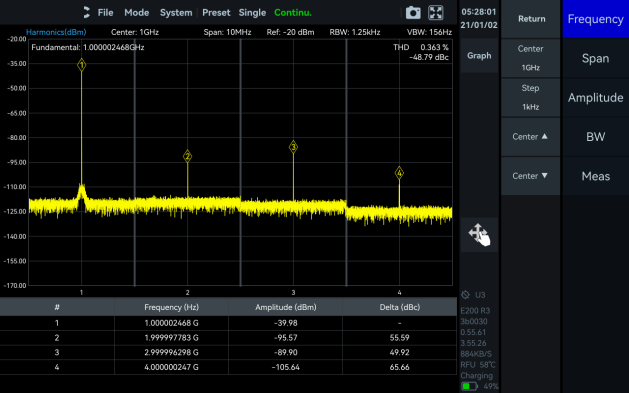

Harmonics Analysis mode in SpecICX
Figure 3-6. Harmonics Analysis mode.

Phase Noise Measurement

This mode supports offset ranges from 1 Hz to 10 MHz for evaluating carrier phase stability. A built-in automatic carrier search function locates the target carrier quickly, with no manual adjustment.

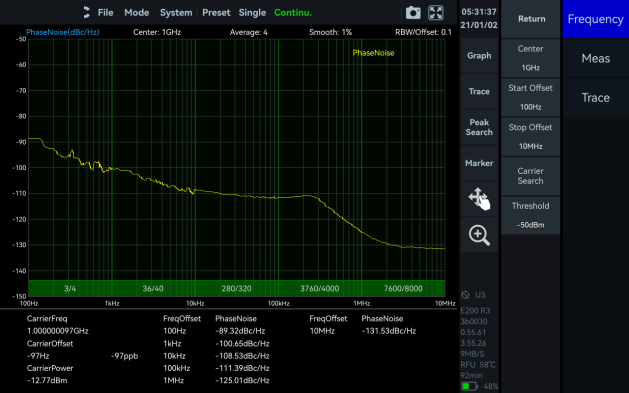

Phase Noise Measurement mode in SpecICX
Figure 3-7. Phase Noise Measurement mode.

4Measurement Functions

The analyzer ships with a comprehensive set of standard measurement functions in SpecICX. The screenshots below show each function in use.

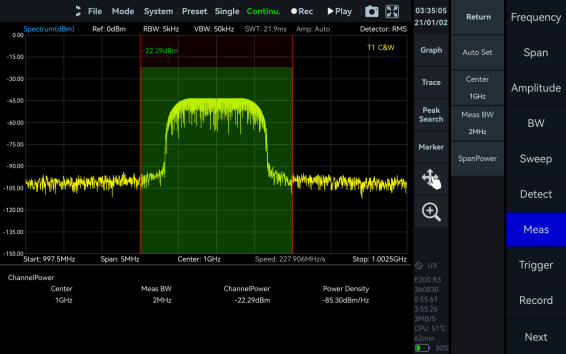

Channel Power measurement in SpecICX
Figure 4-1. Channel Power.

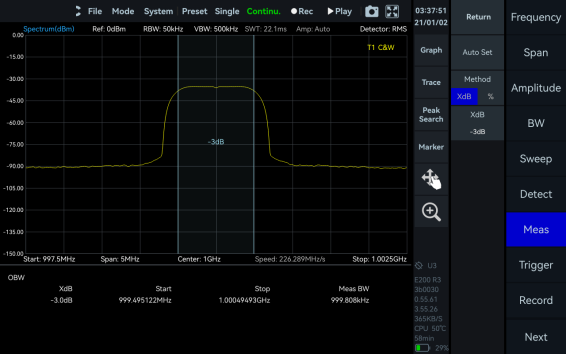

Occupied Bandwidth measurement in SpecICX
Figure 4-2. OBW (Occupied Bandwidth).

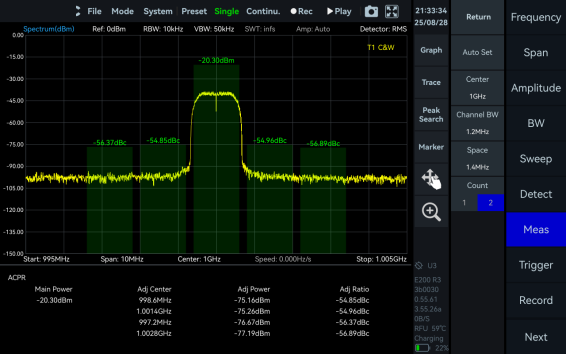

Adjacent Channel Power Ratio measurement in SpecICX
Figure 4-3. ACPR.

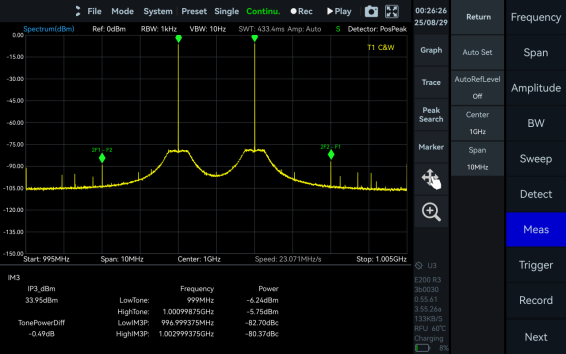

Third-order intermodulation measurement in SpecICX
Figure 4-4. IM3.

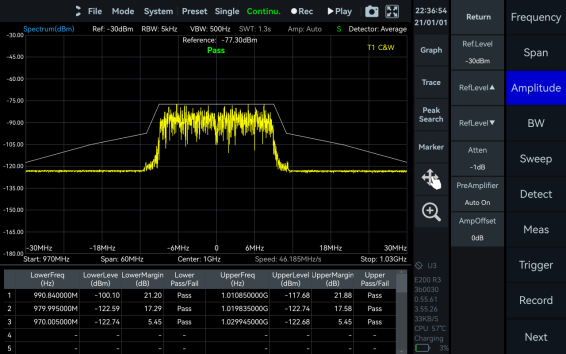

Spectrum Emission Mask measurement in SpecICX
Figure 4-5. SEM.

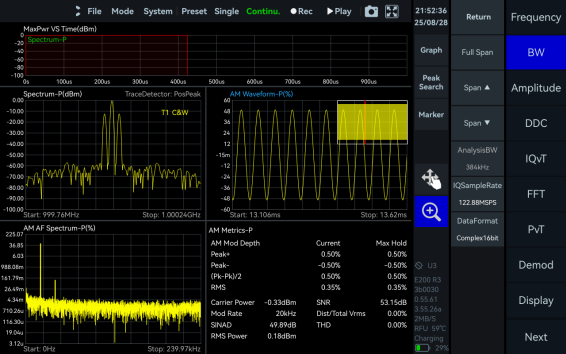

AM Demodulation in SpecICX
Figure 4-6. AM Demodulation.

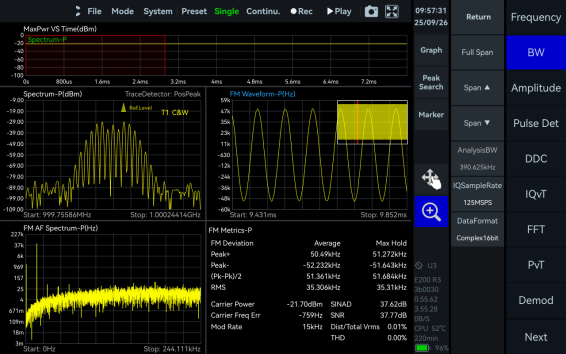

FM Demodulation in SpecICX
Figure 4-7. FM Demodulation.

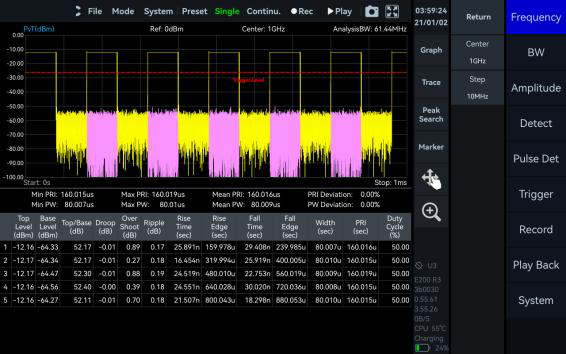

Pulse Detection in SpecICX
Figure 4-8. Pulse Detection (option).

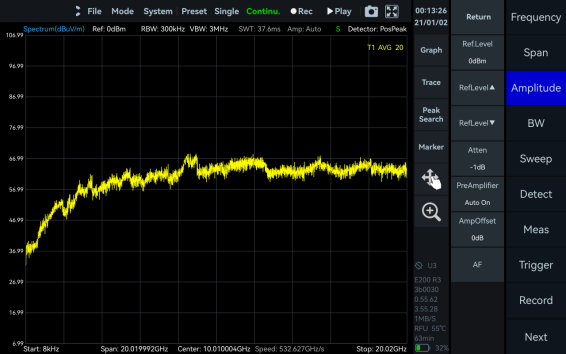

Antenna Factor correction in SpecICX
Figure 4-9. Antenna Factor.

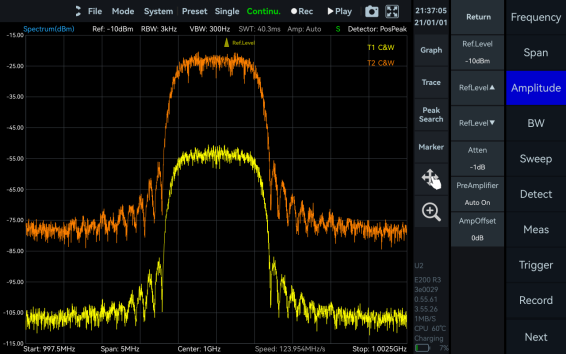

Amplitude Offset correction in SpecICX
Figure 4-10. Amplitude Offset.

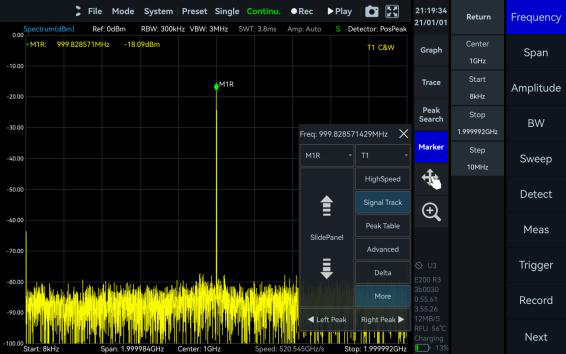

Signal Track in SpecICX
Figure 4-11. Signal Track.

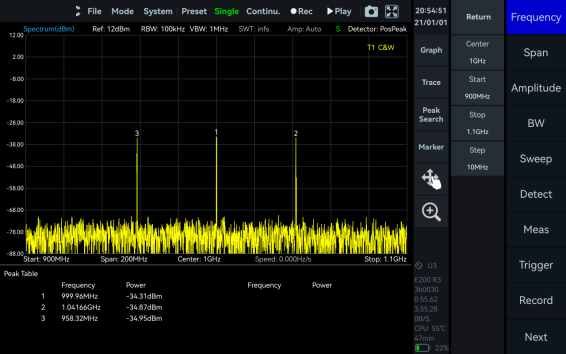

Peak Table in SpecICX
Figure 4-12. Peak Table.

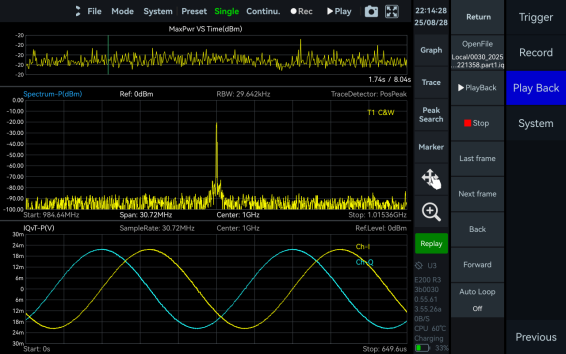

Data Record and Playback in SpecICX
Figure 4-13. Data Record and Playback.

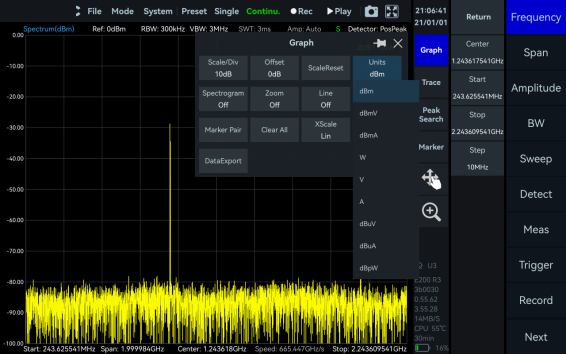

Multiple Unit Display in SpecICX
Figure 4-14. Multiple Unit Display.

5Frequency

ModelFrequency range
SAN-45 / NXN-459 kHz to 4.5 GHz
SAN-60 / NXN-609 kHz to 6.3 GHz
SAM-60 / NXM-609 kHz to 6.3 GHz
SAM-80 / NXM-809 kHz to 8.5 GHz
SAN-400 / NXN-4009 kHz to 40 GHz
ParameterConditionSpecification
Reference clock—Internal or external
Frequency accuracy
TCXO (std.)—< 1 ppm, manual correction is available
OCXO (opt01)—< 1 ppm, manual correction is available
GNSS disciplined OCXO (opt 23/06)—< 0.05 ppm, when locked to GNSS
Aging and temperature stability
TCXO (std.)—< 1 ppm/year, < 1 ppm
OCXO (opt01)—< 1 ppm/year, < 0.15 ppm
GNSS disciplined OCXO (opt 23/06)—< 1 ppm/year, < 0.05 ppm

6Spectrum Purity

SSB Phase Noise (dBc/Hz)

OffsetSAN-45 / NXN-45SAN-60 / NXN-60SAM-60 / NXM-60SAM-80 / NXM-80SAN-400 / NXN-400
Carrier frequency1 GHz | 4.5 GHz1 GHz | 6.3 GHz1 GHz | 6.3 GHz1 GHz | 8.5 GHz1 GHz | 40 GHz
1 kHz-103.4 | -93.5-105.2 | -91.2-107.5 | -92.7-110.3 | -93.5-99.0 | -78.4
10 kHz-111.3 | -100.3-110.4 | -99.3-114.2 | -99.7-120.0 | -100.5-107.5 | -85.7
100 kHz-109.3 | -98.5-110.5 | -97.4-112.5 | -98.6-120.1 | -100.8-107.7 | -85.1
1 MHz-129.5 | -121.9-130.1 | -119.9-132.8 | -120.1-131.4 | -116.9-122.7 | -100.8

Residual Response (dBm)

RBW = 1 kHz, PosPeak detector.

Spur reject functionSAN-45 / NXN-45
enhanced		SAN-60 / NXN-60
enhanced		SAM-60 / NXM-60
enhanced		SAM-80 / NXM-80
enhanced		SAN-400 / NXN-400
bypass
Reference level (R.L.)0 dBm | -50 dBm0 dBm | -50 dBm0 dBm | -50 dBm0 dBm | -50 dBm0 dBm | -50 dBm
100 kHz to 100 MHz-85 | -110-90 | -110-101 | -123-99 | -122-72 | -103
100 MHz to 4.5 GHz-85 | -110-90 | -110-87 | -116-88 | -119-72 | -103
4.5 GHz to 6.3 GHz– | –-90 | -110-87 | -116-88 | -119-72 | -103
6.3 GHz to 8.5 GHz– | –– | –– | –-84 | -113-72 | -103
8.5 GHz to 10 GHz– | –– | –– | –– | –-72 | -103
10 GHz to 20 GHz– | –– | –– | –– | –-91 | -115
10 GHz to 40 GHz– | –– | –– | –– | –-85 | -105

Image Rejection (dBc), Typical

BandSAN-45 / NXN-45, SAN-60 / NXN-60,
SAM-60 / NXM-60, SAM-80 / NXM-80		SAN-400 / NXN-400
Spur reject functionstandardbypassstandardbypass
90 MHz to 4.5 / 6.3 / 8.5 GHz> 90> 35> 90> 80
8.5 GHz to 33 GHz––> 90No rejection
33 GHz to 40 GHz––> 58No rejection

IF Rejection (dBc), Typical

ParameterSpecification
SAN-45/NXN-45, SAN-60/NXN-60, SAM-60/NXM-60, SAM-80/NXM-80Low IF architecture
SAN-400 / NXN-400
8.2 to 21.75 GHz> 68
Other bands> 90
Local oscillator related spurious< -65 dBc. Center frequency × (N/M) × 125 MHz, N, M = 1, 2, 3, 4, 5…

IIP3 / IIP2 (dBm)

ModelCarrier frequencyR.L. = 20 dBmR.L. = 0 dBmR.L. = -20 dBm
SAN-45 / NXN-45
1 GHz1 GHz47.4 / 85.835.1 / 85.510.0 / 66.3
4.5 GHz4.5 GHz45.6 / 98.026.1 / 91.66.9 / 19.4
SAN-60 / NXN-60
1 GHz1 GHz46.6 / 86.029.6 / 85.810.5 / 67.3
6.3 GHz6.3 GHz42.9 / 109.524.6 / 98.53.9 / 17.1
SAM-60 / NXM-60
1 GHz1 GHz51.0 / 84.940.1 / 85.110.0 / 66.4
6.3 GHz6.3 GHz43.4 / 65.925.3 / 94.64.7 / 17.7
SAM-80 / NXM-80
1 GHz1 GHz49.6 / 87.535.6 / 84.311.5 / 67.4
8.5 GHz8.5 GHz41.0 / 57.425.5 / 44.82.4 / 34.2
SAN-400 / NXN-400
1 GHz1 GHz40.3 / 75.527.4 / 45.38.7 / 25.2
40 GHz40 GHz31.7 / 88.610.3 / 86.14.8 / 66.6

7Amplitude & DANL

Amplitude

ParameterSAN-45/NXN-45, SAN-60/NXN-60,
SAM-60/NXM-60, SAM-80/NXM-80		SAN-400 / NXN-400
Display rangeDANL to 23 dBmDANL to 20 dBm
Reference level (R.L.)-50 dBm to +23 dBm-50 dBm to +20 dBm
Amplitude accuracy9 kHz to 4.5 / 6.3 / 8.5 GHz: ±2.0 dB9 kHz to 9.5 GHz: ±2.0 dB
9.5 GHz to 40 GHz: ±3.0 dB
Max. input power (CW)23 dBm, 30 MHz to 4.5/6.3/8.5 GHz and the preamplifier is off
10 dBm, 9 kHz to 30 MHz or preamplifier is on		23 dBm, 50 MHz to 40 GHz and the preamplifier is off
10 dBm, 9 kHz to 50 MHz or preamplifier is on
VSWR30 MHz to 4.5/6.3/8.5 GHz: < 2.5:190 MHz to 16 GHz: < 2.0:1
16 GHz to 40 GHz: < 3.0:1
Max. DC voltage±10 VDC
IF in-band flatness±2.0 dB
RF preamplifiersAutomatically turn on or forcibly turn off

Display Average Noise Level (DANL), dBm/Hz

RBW = 1 kHz.

Reference level (R.L.)SAN-45 / NXN-45SAN-60 / NXN-60SAM-60 / NXM-60SAM-80 / NXM-80SAN-400 / NXN-400
R.L. =-20 dBm | -50 dBm-20 dBm | -50 dBm-20 dBm | -50 dBm-20 dBm | -50 dBm-20 dBm | -50 dBm
9 kHz to 1 MHz-134.6 | -150.3-136.4 | -147.9-135.9 | -148.5-141.4 | -151.7-136.0 | -145.8
1 MHz to 30 MHz-140.2 | -162.6-139.7 | -162.3-140.7 | -162.8-154.2 | -161.6-153.7 | -158.0
30 MHz to 3.0 GHz-153.2 | -163.5-152.7 | -164.8-152.1 | -163.9-150.8 | -167.1-153.7 | -158.0
3.0 GHz to 4.5 GHz-155.2 | -162.7-157.1 | -163.5-151.3 | -162.0-155.6 | -164.7-154.1 | -159.9
4.5 GHz to 6.3 GHz– | –-151.9 | -160.4-151.3 | -162.0-155.6 | -164.7-154.1 | -159.9
6.3 GHz to 8.5 GHz– | –– | –– | –-144.0 | -157.2-154.1 | -159.9
8.5 GHz to 19 GHz– | –– | –– | –– | –-154.1 | -159.9
19 GHz to 40 GHz– | –– | –– | –– | –-145.2 | -149.3

8Standard Spectrum Analysis

ParameterSAN-45/NXN-45, SAN-60/NXN-60,
SAM-60/NXM-60, SAM-80/NXM-80		SAN-400 / NXN-400
RBW0.1 Hz to 2.5 MHz0.1 Hz to 10 MHz
VBW0.1 Hz to 10 MHz0.1 Hz to 10 MHz
DetectorPosPeak, NegPeak, Sample, Average, RMS, MaxPower
Data chartSpecICX software provides spectrum, spectrogram, and historical trace
MeasurementsChannel power, OBW, X dB bandwidth, Adjacent channel power ratio, IM3

Sweep Speed

ModelRBW = 250 kHz, FPGA
spur reject = bypass		RBW = 250 kHz, FPGA
spur reject = standard		RBW = 50 kHz, FPGA
spur reject = bypass		RBW = 1 kHz, CPU
spur reject = bypass
SAN-45186.0 GHz/s86.9 GHz/s79.0 GHz/s5.7 GHz/s
NXN-45152.5 GHz/s73.8 GHz/s70.8 GHz/s3.5 GHz/s
SAN-60444.5 GHz/s209.4 GHz/s157.3 GHz/s6.2 GHz/s
NXN-60285.7 GHz/s132.3 GHz/s132.9 GHz/s3.5 GHz/s
SAM-60793.3 GHz/s382.7 GHz/s242.2 GHz/s5.9 GHz/s
NXM-60354.4 GHz/s178.2 GHz/s178.2 GHz/s3.5 GHz/s
SAM-80822.1 GHz/s359.2 GHz/s230.8 GHz/s5.8 GHz/s
NXM-80355.8 GHz/s178.2 GHz/s178.2 GHz/s3.5 GHz/s
SAN-4001.1 THz/s584.6 GHz/s215.6 GHz/s4.3 GHz/s
NXN-400657.4 GHz/s330.8 GHz/s166.3 GHz/s3.4 GHz/s

9IQ Recording

ParameterSAN-45 / NXN-45SAN-60 / NXN-60SAM-60/NXM-60,
SAM-80/NXM-80,
SAN-400/NXN-400
IQ sample rateMax: 7.8125 MSPSMax: 31.25 MSPSMax: 125 MSPS
Support decimation factor2n (n = 0 to 8)2n (n = 0 to 10)2n (n = 0 to 12)
Burst recording bandwidthMax: 6.25 MHzMax: 25 MHzMax: 100 MHz
ParameterSAN-45/NXN-45SAN-60, SAM-60, SAM-80, SAN-400,
NXM-60/NXM-80, NXN-60/NXN-400
Continuous recording bandwidthMax: 25 MHzMax: 50 MHz / Max: 6.25 MHz
External trigger responseMaximum frequency response: 500 times/sec
Note. The built-in memory depth is 128 Mbytes.

10Detection Analysis

ParameterSAN-45 / NXN-45SAN-60 / NXN-60SAM-60/NXM-60,
SAM-80/NXM-80,
SAN-400/NXN-400
Lowest time resolution128 ns32 ns8 ns
Max. analysis bandwidth6.25 MHz25 MHz100 MHz
DetectorPosPeak, NegPeak, Sample, Average, RMS, MaxPower

11Real-Time Spectrum Analysis

ParameterSpecification
FFT analysisFFT engine is implemented in FPGA. Frame compression and trace detection are supported. No missing samples between FFT frames.
Formulas. FFT frame update rate = 109 ns / (N × D × Lowest time resolution). POI = 2 × N × D × Lowest time resolution. N is the FFT points (2048, 1024, 512, 256, 128, 64, 32); D is the decimate factor (1, 2, 4, 8…).
ParameterSAN-45 / NXN-45SAN-60 / NXN-60SAM-60/NXM-60,
SAM-80/NXM-80,
SAN-400/NXN-400
POI
N = 2048, D = 1524.288 µs131.072 µs32.768 µs
N = 32, D = 18.192 µs2.048 µs0.512 µs
FFT refresh rate
N = 2048, D = 13,814 times/sec15,258 times/sec61,035 times/sec
N = 32, D = 1244,140 times/sec976,562 times/sec3,906,250 times/sec
Max. analysis bandwidth6.25 MHz25 MHz100 MHz

12RBW

ParameterSAN-45 / NXN-45SAN-60 / NXN-60SAM-60/NXM-60,
SAM-80/NXM-80,
SAN-400/NXN-400
Flat-top window920 kHz to 3.59 kHz3.68 MHz to 3.59 kHz14.73 MHz to 3.59 kHz
B-Nuttall window488 kHz to 1.90 kHz1.95 MHz to 1.90 kHz7.81 MHz to 1.90 kHz
Window type9 grades11 grades13 grades
Window functionB-Nuttall, Flat-top, LowSideLobe
Amplitude resolution0.75 dB

13General

ParameterUSB models
SAN-45, SAN-60, SAN-400, SAM-60, SAM-80		Ethernet models
NXN-45, NXN-60, NXN-400, NXM-60, NXM-80
PowerType-C, 5V 2A supply capacity, voltage range 4.75 to 5.25 V, ripple less than 200 mVppType-C, 12V 2A supply capacity, voltage range 9 to 12 V, ripple less than 200 mVpp
DataType-C, USB3.0 (USB2.0 bandwidth limited). Requires 5V 0.9A power supplyRJ45 1000 Mbps × 1, 100 Mbps × 1
GNSS typeExternalInternal
GNSS 1PPS Synchronization Accuracy
Std. / Opt21Opt21, ±100 nsStd., ±100 ns
Opt22 / Opt05Opt22, ±75 nsOpt05, ±75 ns
opt23 / Opt06opt23, ±50 nsOpt06, ±50 ns
Packaging and accessoriesFlash disk × 1, USB 3.0 cable × 2, Power adapter × 1Flash disk × 1, USB 2.0 cable × 1, Power adapter × 1
System requirementsWindows 11/10/8/7 (x86, x64, AArch64), only NX series support AArch64. Debian 12/11/10 (x64, AArch64). Ubuntu 24.04/22.04/20.04/18.04 (x64, AArch64).
Operating / Storage temperature (Ambient)
T0 class (std.)0 to 50 °C / -20 to +70 °C
T1 class (opt40)-20 to +65 °C / -40 to +85 °C
T2 class (opt41)-40 to +65 °C / -40 to +85 °C
Operating Relative Humidity
Ambient Temp.: 0 to 40 °C5 to 75%
Ambient Temp.: > 40 °C5 to 45%

14Input & Output

ParameterSAN-45, SAN-60,
SAM-60, SAM-80		NXN-45, NXN-60, NXN-400,
NXM-60, NXM-80		SAN-400
External trigger inputType-C, 3.3VCMOS, high impedanceMMCX(F), 3.3VCMOS, high impedanceIntegrated in AUXIO, 3.3VCMOS, high impedance
Trigger outputType-C, 3.3VCMOSMMCX(F), 3.3VCMOSIntegrated in AUXIO, 3.3VCMOS
ParameterSAN-45/NXN-45, SAN-60/NXN-60,
SAM-60/NXM-60, SAM-80/NXM-80		SAN-400NXN-400
RF inputSMA(F), Impedance 50 Ω2.92 mm(F), Impedance 50 Ω
RF outputSMA(F), Impedance 50 Ω–
Reference clock inputMCX (F), amplitude ≥ 1.5 Vpp, impedance 330 ΩMMCX (F), amplitude ≥ 1.5 Vpp, impedance 330 Ω
Reference clock outputUnavailableIntegrated in AUXIO, 3.3 V CMOS programmable on/off
IF outputUnavailableMMCX (F), maximum output power -25 dBm, impedance 50 Ω, 307.2 MHz ± 50 MHz

15Size, Weight & Power

Model groupSizeWeightPower consumption
SAN-400139 × 68 × 31 mm< 420 g10 to 14 W
SAN-45 / SAN-60 / SAM-60 / SAM-80156 × 62 × 22 mm< 305 g9 to 12 W
NXN-45 / NXN-60 / NXN-400 / NXM-60 / NXM-80167 × 117 × 30 mm< 665 g13 to 16 W

16Test Conditions

Specifications apply under the following conditions:

  1. Warm-up. Start up and warm up for 10 minutes.
  2. Temperature. Ambient temperature 25 °C (core temperature 50 °C).
  3. Mode. Standard spectrum analysis mode, spurious rejection standard on.
  4. Cooling. Necessary heat dissipation is provided to keep ambient and core temperature within the rated range at the same time.
  5. Sweep speed and DANL test conditions. MCU: 0.55.57, FPGA: 0.55.22, API: 0.55.61 (verify these build strings carry to BNC release builds).

17Options

CodeDescriptionType
01Built-in OCXO reference clockBuilt-in hardware
02Built-in signal generatorBuilt-in hardware
05Internal high precision GNSSBuilt-in hardware
06Build-in GNSS disciplined reference clockBuilt-in hardware
20AUXIO IO Expansion boardAccessory
21External GNSSAccessory
22External high precision GNSSAccessory
23External GNSS disciplined OCXO reference clockAccessory
34External omnidirectional antenna, 400 MHz to 8000 MHz, Gain < 2 dBiAccessory
35External active directional antenna, frequency range 0.5 to 10 GHz, Gain: < 5 dBi (amp off); < 25 dBi (amp on)Accessory
40T1 temperature classBuilt-in hardware
41T2 temperature class, only available for coreBuilt-in hardware
71Basic digital demodulationSoftware
72Pulse detectionSoftware
Berkeley Nucleonics directional and omnidirectional antennas pair with the ICX-FieldHawk-U for geolocation and direction-finding work. See the ANT-100G antenna summary. (verify antenna part numbers and gain figures against the published BNC datasheet.)

18Built-in Signal Generator (opt02)

ParameterSAN-45/NXN-45, SAN-60/NXN-60, SAM-60/NXM-60, SAM-80/NXM-80
Frequency range100 kHz to 6.3 GHz, step 10 Hz
Power range-50 dBm to 0 dBm, step 0.25 dB
VSWR30 MHz to 6.3 GHz: < 2.0:1
Non-harmonic spurs< -50 dBc

Harmonics

Frequency rangeSecond harmonicThird harmonic and above
100 kHz to 30 MHz< -10 dBc< -10 dBc
30 MHz to 1.6 GHz< -10 dBc< -10 dBc
1.6 GHz to 3 GHz< -20 dBc< -20 dBc
3 GHz to 3.2 GHz< -20 dBc< -20 dBc
3.2 GHz to 6.3 GHz< -20 dBc< -20 dBc

Leakage to receiver

Frequency rangeLeakage
100 kHz to 30 MHz> 90 dBc
30 MHz to 3 GHz> 80 dBc
3 GHz to 6.3 GHz> 70 dBc

19Packaging & Contact

USB models ship with a flash disk, two USB 3.0 cables, and a power adapter. Networked models ship with a flash disk, one USB 2.0 cable, and a power adapter. The whole family runs on SpecICX across Windows and Linux, with a unified API and standard support for integration work.

Contact Berkeley Nucleonics. For quotes, demonstrations, options, and antenna pairings such as the ANT-100G, reach the team at info@berkeleynucleonics.com or 800-234-7858.
