Model 588B User Manual

1. Introduction

This manual is a reference designed to familiarize you with the Berkeley Nucleonics Corporation 588B series pulse generator and is arranged so that you can easily find the information you are looking for. Generally, each topic has its own section and no section assumes that you have read anything else in the manual.

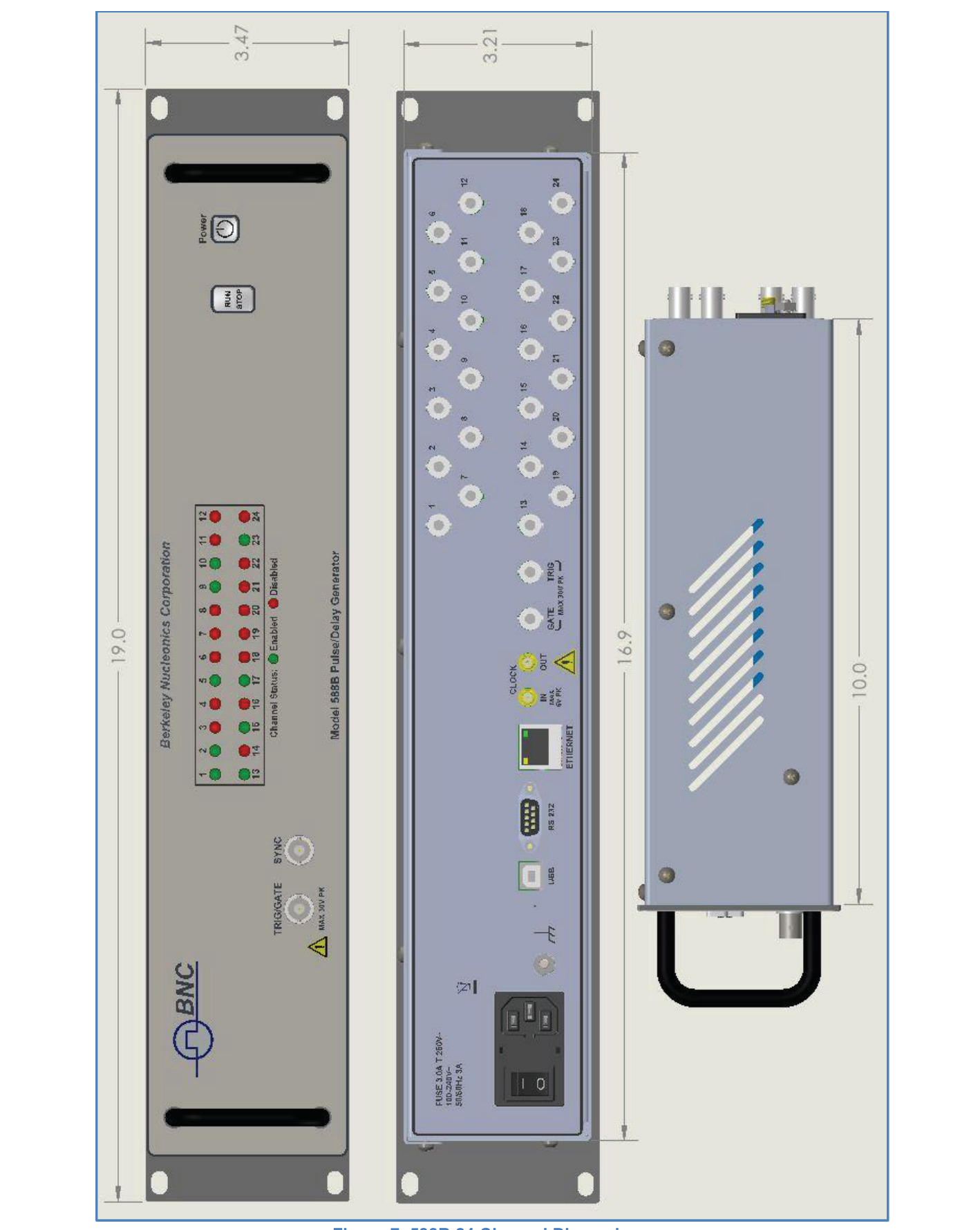

Rack Mount Models

Technical Support

For questions or comments about operating the 588B our technical staff can be reached via one of the following methods:

• Phone – (415) 453-9955
• Fax – (415) 453-9956
• Internet – www.berkeleynucleonics.com

Warranty

In addition to a 30-day money back guarantee, the 588B has a two-year limited warranty from the date of delivery. This warranty covers defects in materials and workmanship. Berkeley Nucleonics Corporation will repair or replace any defective unit. Contact us for information on obtaining warranty service.

Package Contents

The box you receive should contain the following:

• 588B Pulse Generator
• AC Power Cord*
• User’s Manual and GUI on USB

Contact Berkeley Nucleonics Corporation (415) 453-9955 if any parts are missing.

2. Safety Issues

Normal use of test equipment presents a certain amount of danger due to electrical shock because it may be necessary for testing to be performed where voltage is exposed.

An electrical shock causing 10 milliamps of current to pass through the heart will stop most human heartbeats. Voltage as low as 35 V_DC or 35 V_RMS AC should be considered dangerous and hazardous, as it can produce a lethal current under certain conditions. Higher voltages pose an even greater threat because such voltage can easily produce a lethal current. Your normal work habits should include all accepted practices that will prevent contact with exposed high voltage and steer current away from your heart in case of accidental contact with a high voltage. You will significantly reduce the risk factor if you know and observe the following safety precautions:

• If possible, familiarize yourself with the equipment being tested and the location of its high-voltage points. However, remember that high voltage may appear at unexpected points in defective equipment.
• Do not expose high voltage needlessly. Remove housing and covers only when necessary. Turn off equipment while making test connections in high-voltage circuits. Discharge high-voltage capacitors after shutting down power.
• When testing AC powered equipment, remember that AC line voltage is usually present on power input circuits, such as the on-off switch, fuses, power transformer, etc.
• Use an insulated floor material or a large, insulated floor mat to stand on, and an insulated work surface on which to place equipment. Make certain such surfaces are not damp or wet.
• Use the time-proven “one hand in the pocket” technique while handling an instrument probe. Be particularly careful to avoid contact with metal objects that could provide a good ground return path.
• Never work alone. Someone should always be nearby to render aid if necessary. Training in CPR first aid is highly recommended.

3. System Overview

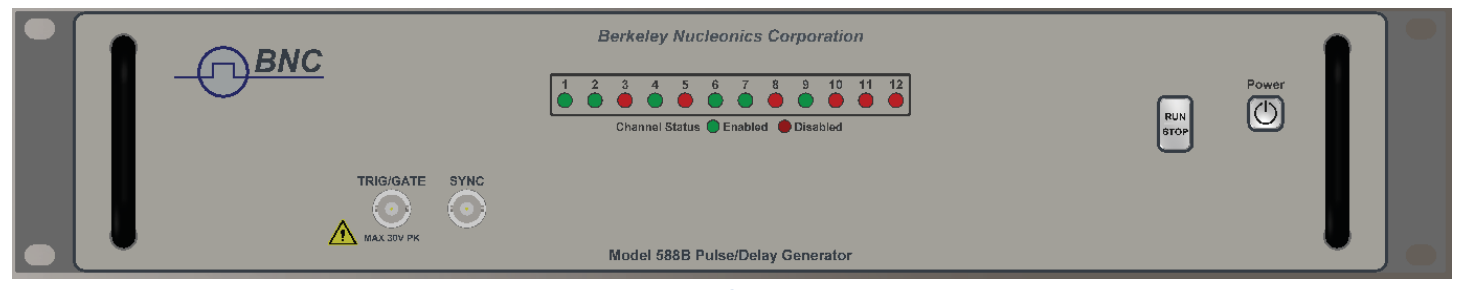

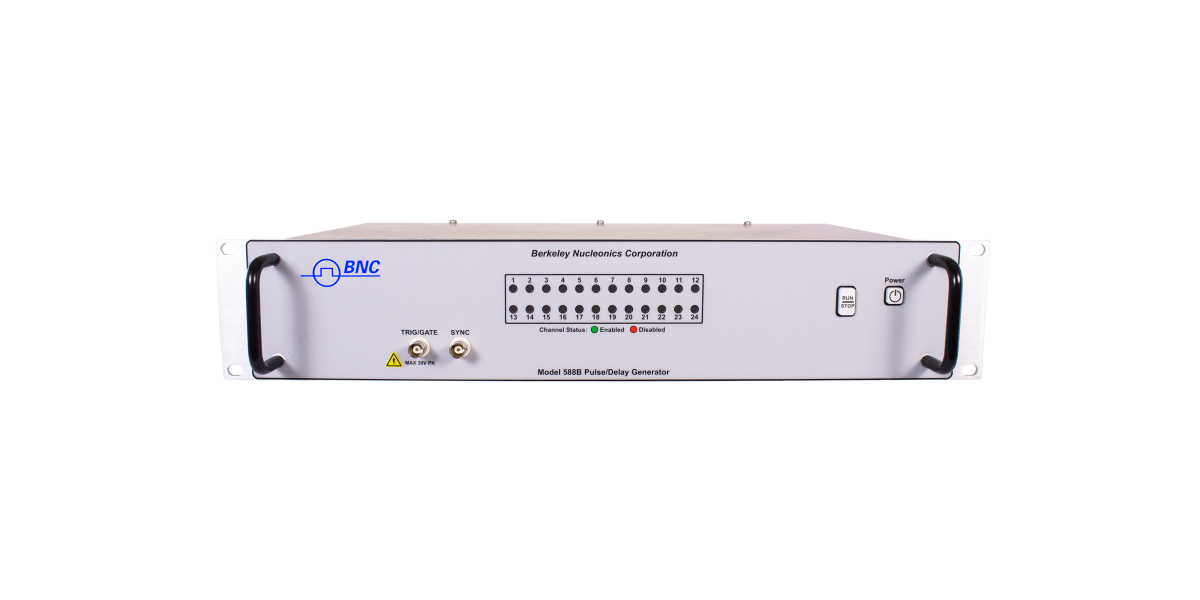

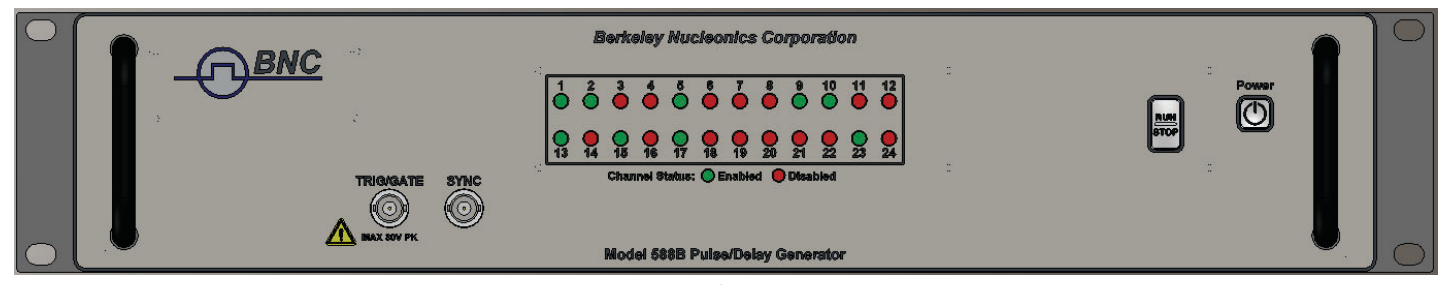

588B Front Panel

Front Panel Layout

An array of LEDs provides channel status, green indicates the channel is enabled, red indicates the channel is disabled. On power up all the LEDs will be green for 1 second and then red for 1 second to confirm operation. Error messages are indicated by blinking LEDs.

The power button and the Run button are on the right side of the front panel. On the left is a general-purpose Trigger / Gate input. The input range is 0.5v to 30v. In addition, a switch closure may be used, allowing the use of a foot switch or safety interlock.

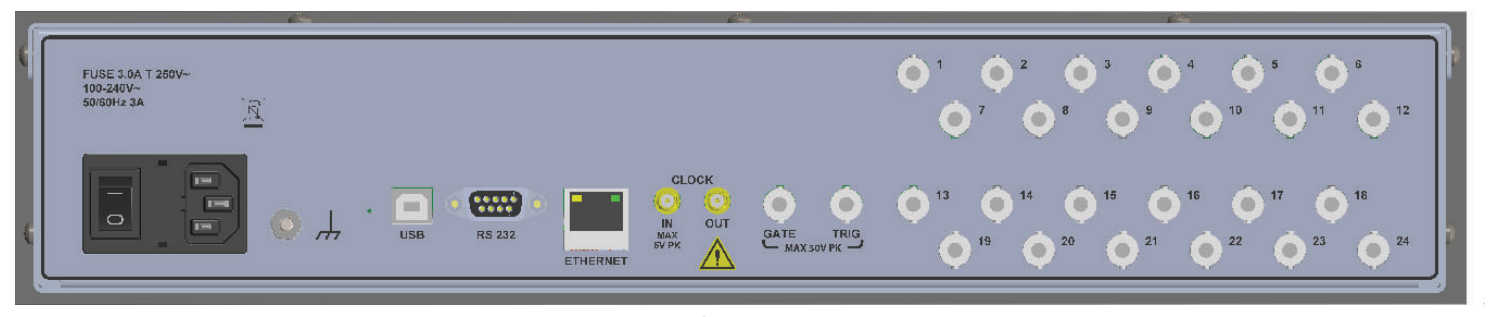

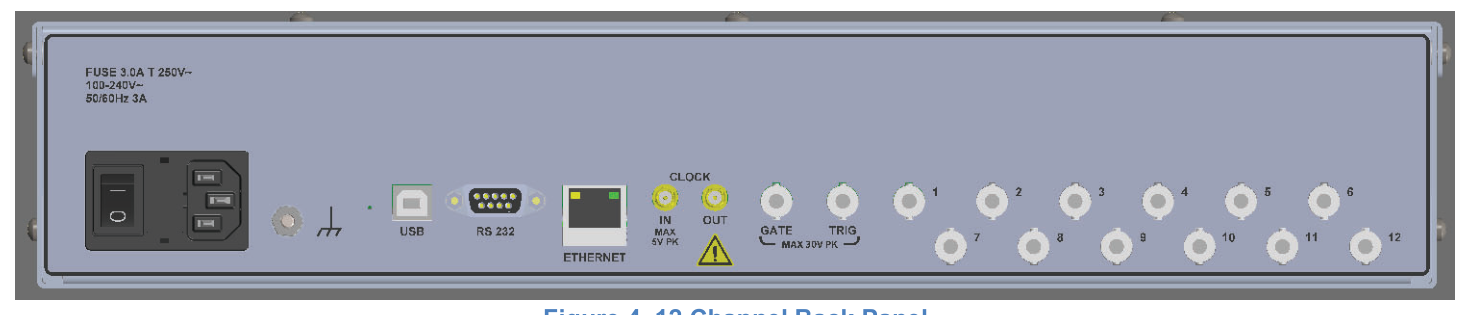

588B Rear Panel

Rear Panel Layout

The channel outputs are available from an array of BNCs. There is a BNC trigger input and a BNC Gate input. The input range is 0.5v to 30v for both inputs. In addition, a switch closure may be used, allowing the use of a foot switch or safety interlock. A pair of SMA connector provide for the input of a reference oscillator and the output of the internal system T₀ pulse or a synthesized oscillator output. The unit provides three communication ports, RS232, USB & Ethernet. The power entry modules provide a power on/off switch and accepts 100 to 240VAC at 50Hz or 60Hz.

4. Pulse Concepts and Pulse Generator Operations

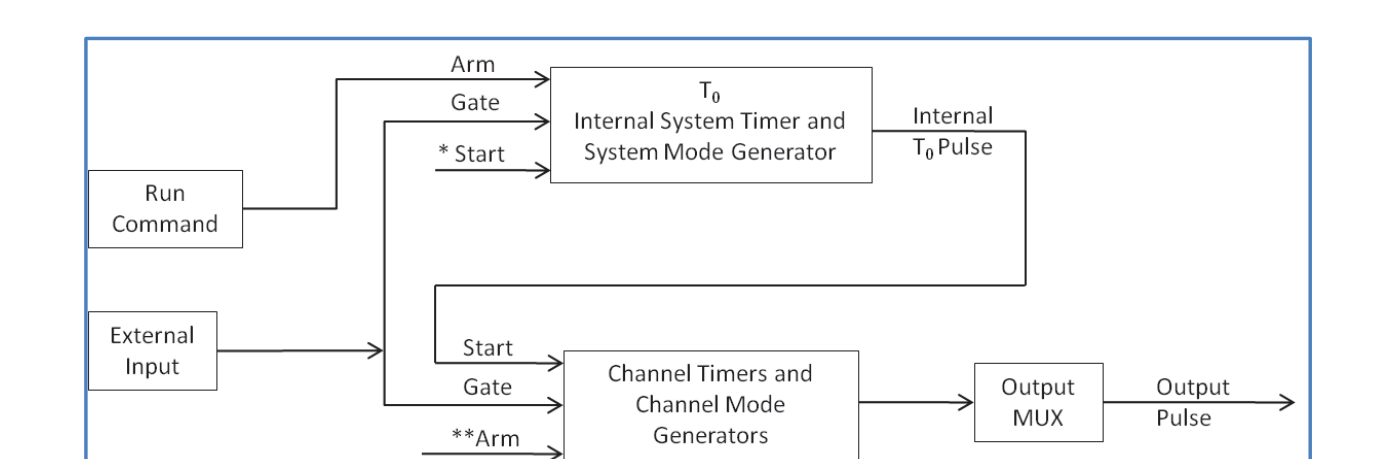

Counter Architecture Overview

*Start source is:

• RUN button in Internal Modes
• External input in External Trigger modes
• *TRG command via Serial access

**Channels are armed by the RUN button. In single shot and burst modes channels may be rearmed by pressing the RUN button again.

System Timer Functions

The system timer generates the internal T₀ pulse which is used as the Start pulse for the channel timers. The system timer functions as a non-retriggerable, multi-vibrator pulse generator. This means that once started, depending on the mode, the timer will produce pulses continuously. Before pulses can be generated, the timer must be armed and then receive a start pulse. Arming the counter is done by pressing the Run/Stop key or using the comm commands. With external trigger disabled, the Run/Stop key also generates the start command for the counter. With external trigger enabled, the external trigger provides the start pulse. In either case, once started, the counter operation is determined by the System Mode Generator. Standard modes include:

• Continuous – Once started T₀ pulses are generated continuously.
• Single Shot – One T₀ pulse is generated for each start command.
• Burst – ‘n’ T₀ pulses are generated for each start command.
• Duty Cycle – Once started T₀ pulses cycle on and off continuously.

The T₀ pulse is distributed to all of the start inputs of the Channel Timers and Mode Generators.

Channel Timer Functions

The Channel Timer functions as a non-retriggerable, delayed, one shot pulse generator. This means that the timer will only generate one delayed pulse for every start pulse received. Once the channel timer has started counting, additional start pulses will be ignored until the pulse has been completed (non-retriggerable). The start pulse for each channel is provided by the internal T₀ pulse generated by the internal system timer. Whether or not a pulse is generated for each T₀ pulse is determined by the Channel Mode Generator. Standard modes include:

• Normal – A pulse is generated for each T₀ pulse.
• Single Shot – One pulse is generated for the first T₀ pulse, after which the output is inhibited.
• Burst – ‘n’ number of pulses are generated for the first T₀ pulse, after which the output is inhibited.
• Duty Cycle – ‘n’ number of pulses are generated for each T₀ pulse after which the output is inhibited for ‘m’ number of pulses. The cycle is then repeated for each subsequent T₀ pulse.

Different modes may be selected for each output, allowing a wide variety of output combinations. Each output may also be independently disabled or gated (using the external gate input).

Digital Output Multiplexer

The outputs of each of the Channel Timers are routed to a set of multiplexers. This allows routing of a number (up to 5) Channel Timers to each of the output ports.

In the normal mode of operation bit 0 is the only bit enabled (bit pattern: 00001, command parameter 1), thus the output of the n^th channel timer is routed to the n^th output channel connector. Note that the channel routed to bit 3 (parameter = 8) is channel 2 for all outputs and the channel routed to bit 4 (parameter = 16), 12 or 24, depends on the system channel size. Using the MUX function with the channel modes allows a number of complex functions, such as double pulsing, modulating pulsewidths as shown in the following examples.

Channel Multiplexer Bit Assignments

MUX Application Examples

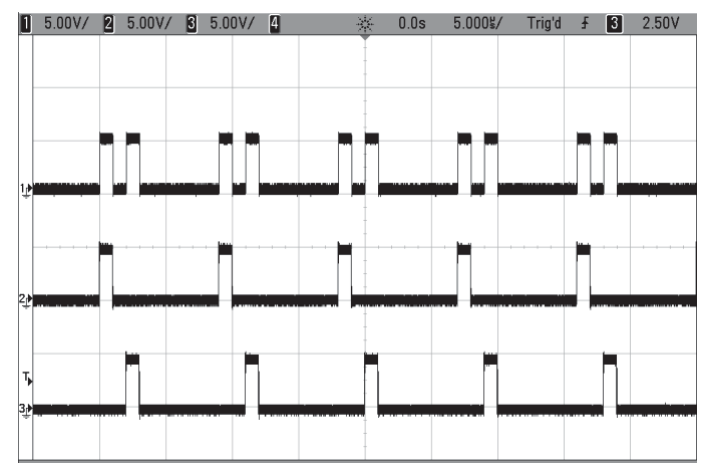

Ex. 1: Double Pulse – A double pulse waveform can be generated, as shown in the figure, by using the MUX function to combine two channels.

• Scope Ch 1: Channel 1 output after combining channel 1 and channel 3 (mux code: 3).
• Scope Ch 2: Channel 1 output before combining channel 3 (mux code: 1).
• Scope Ch 3: Channel 3 output delayed as necessary to generate the required second pulse (mux code: 1).

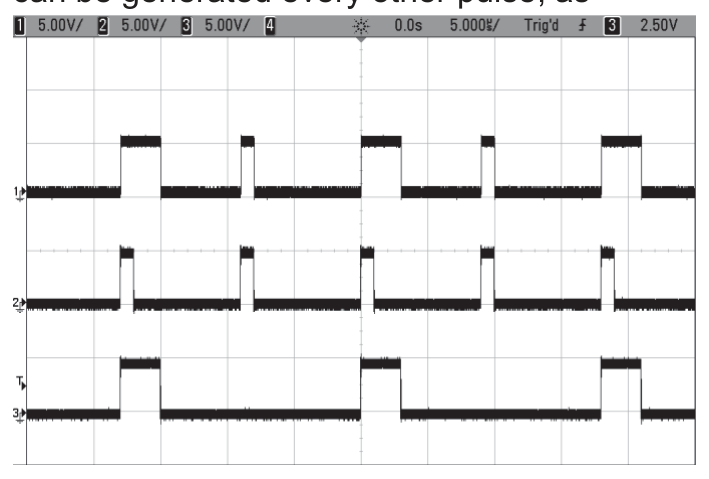

Ex. 2: Alternating Pulsewidth – An extended pulse can be generated every other pulse, as shown in the figure, by using the MUX function to combine two channels.

• Scope Ch 1: Channel 2 output after combining channel 2 and channel 4 (mux code: 3).
• Scope Ch 2: Channel 2 output before combining channel 4 (mux code: 1).
• Scope Ch 3: Channel 4 output extended as necessary to generate the required second pulse (mux code: 1). The channel is in duty cycle mode (1 on, 1 Off) to generate the alternating pattern.

Channel Gate Function

The outputs of each of the Channel can be gated by one of two channel timers as defined below:

Command: :PULSe n:CONTROL GATA | GATB | INHB

In the gated mode, output of the gated channels only occurs when the gate is high (active high mode). The gate A timer (4) is common to all channels. The gate B timer (12 or 24) depends on the model, 12 or 24 channels, respectively. In the inhibit mode, output of the gated channels is inhibited when the gate is high (active low mode).

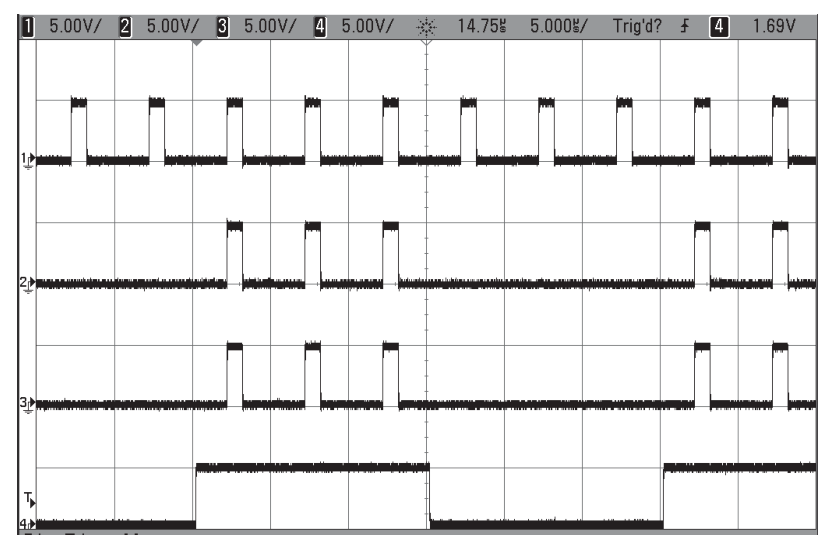

Gate A Mode

• Scope Ch 1: Ch 1 – Normal Mode
• Scope Ch 2: Ch 2 – Gate A (GATA) Enabled
• Scope Ch 3: Ch 3 – Gate A (GATA) Enabled
• Scope Ch 4: Ch 4 – Normal Mode (extended delay & width)

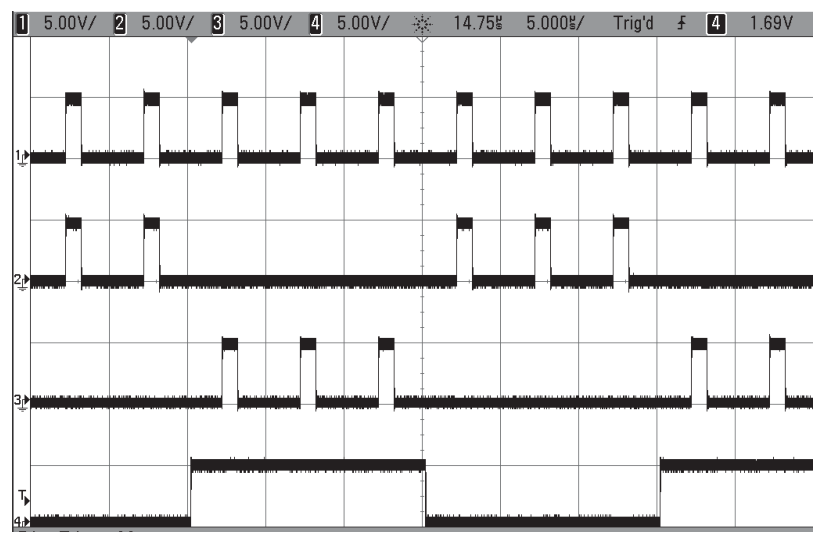

Gate B & INHIBIT B Mode

• Scope Ch 1: Ch 1 – Normal Mode
• Scope Ch 2: Ch 2 – Inhibit B (INHB) Enabled
• Scope Ch 3: Ch 3 – Gate B (GATB) Enabled
• Scope Ch 4: Ch 12 – Normal Mode (extended delay & width)

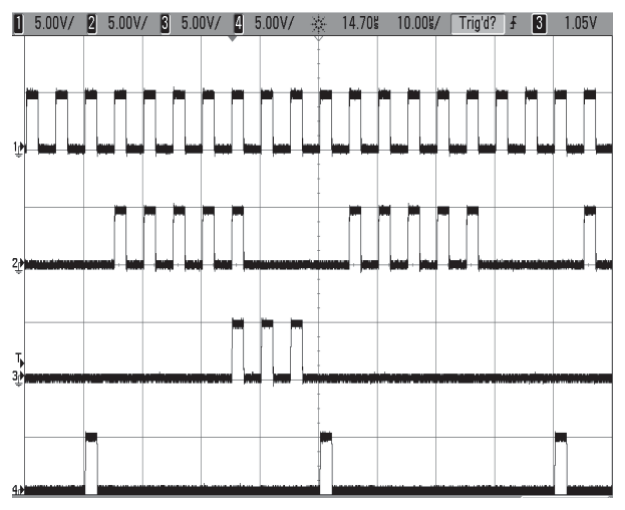

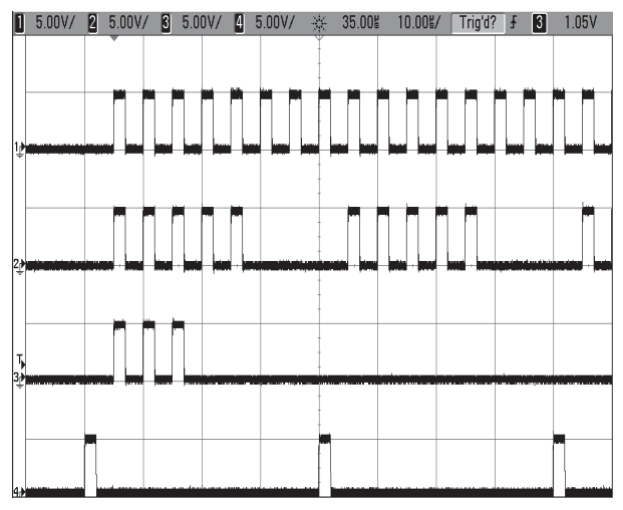

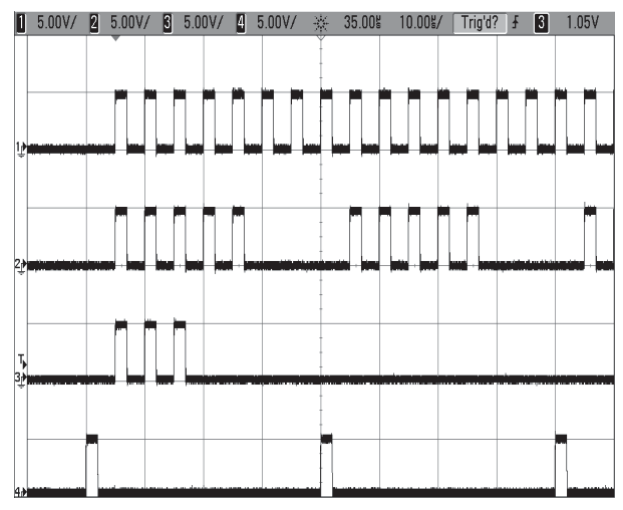

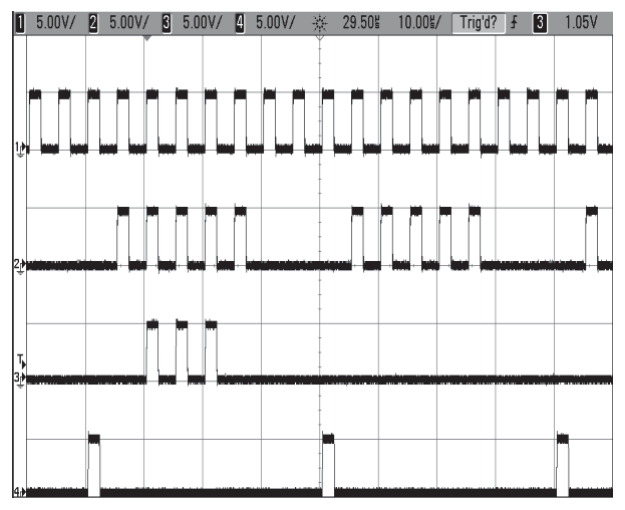

Channel Phase Locking

Normally when rearming a channel, the output will start on the next available T₀ pulse. This leads to a random phase relationship with other channels that may be in duty cycle mode, as shown in column 1. The BNC588B channel sync feature can be used to lock the channel relative to the sync pulse, as shown in column 2. Note that when sync is enabled, the Ch3 burst is always locked to start of Ch2 output.

Command: :PULSe n:SYNC SYNA | SYNB | SYNT

• Scope Ch1 – channel 1 - normal mode, wait = 1
• Scope Ch2 – channel 2 - duty cycle mode (5 on, 3 off), wait = 1
• Scope Ch3 – channel 3 - burst mode (3 pulses), wait = 0
• Scope Ch4 – channel 6 - (sync pulse) duty cycle mode (1 on, 7 off), wait = 0

Operating the 588B

The 588B has a powerful set of functions providing a number of modes of operation. Both the system timer and the channel timer combine to provide the ability to generate complex waveforms. Configuring the system is done via the BNC GUI or using the computer interface command set. The available computer interfaces include a USB port, RS232 port and optional Ethernet port.

Quick Start - Normal Internal Rate Generator Operation

The 588B has a powerful set of functions providing a number of modes of operation for the internal or “System” rate generator (T₀). Most of these functions can be ignored if a simple continuous stream of pulses is required. Starting from the default settings, which can be restored by recalling configuration 0, the following parameters need to be set:

Quick Start – Normal External Trigger Operation

To generate a single pulse for every external trigger event, based on the default configuration 0, the following parameters need to be set:

System Timer Overview

For internal operation, the 588B contains a timer and mode generator which generates an internal T₀ clock that is used to trigger all the channel timers. System modes are controlled via the Mode menu.

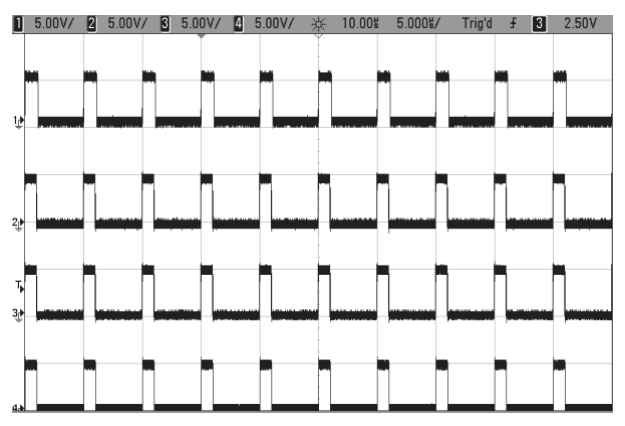

Using Continuous Mode

The Run/Stop button starts and stops a continuous pulse stream at the rate specified by the system Period parameter. This corresponds to the normal output mode for most pulse generators. To generate a continuous stream of pulses:

• System Mode: Continuous mode
• System Period: 10µs

Pressing the front panel Run/Stop key or entering the system State command will now generate a stream of pulses at a rate specified by the period parameter.

• Scope Ch 1: Channel 1 set to normal mode.
• Scope Ch 2: Channel 2 set to normal mode
• Scope Ch 3: Channel 3 set to normal mode
• Scope Ch 4: Channel 4 set to normal mode

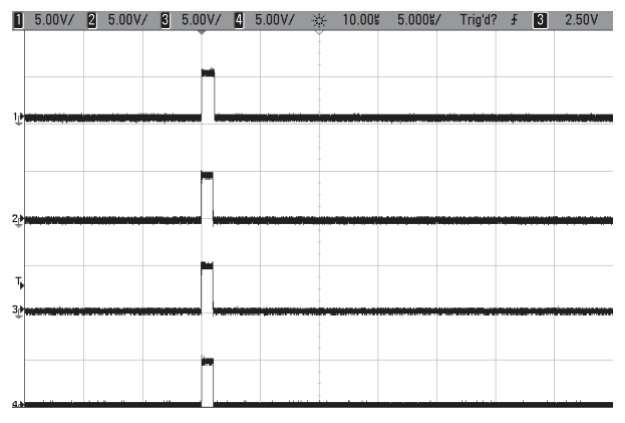

Using Single Shot Mode

To generate a single pulse with every press of the Run/Stop key or the State enable command:

• System Mode: Single Shot mode

Pressing the front panel Run/Stop key or entering the system State command will now generate one pulse.

• Scope Ch 1: Channel 1 set to normal mode.
• Scope Ch 2: Channel 2 set to normal mode
• Scope Ch 3: Channel 3 set to normal mode
• Scope Ch 4: Channel 4 set to normal mode

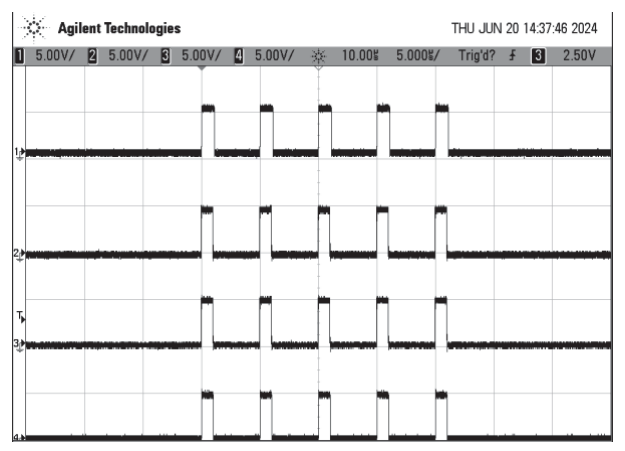

Using System Burst Mode Function

The Run/Stop button generates a stream of ‘N’ T₀ pulses, where the ‘N’ is specified by the Burst parameter. The rate is specified in the Rate menu. Pressing the Run/Stop button while in the burst is in process will stop the output. After the burst has been completed, pressing the Run/Stop button will generate another burst. To generate a burst of pulses set:

• System Mode: Burst mode
• Burst Count: 5
• System Period: 10µs

Pressing the front panel Run/Stop key or entering the system State command will now generate a burst of the specified number of pulses.

• Scope Ch 1: Channel 1 set to normal mode.
• Scope Ch 2: Channel 2 set to normal mode
• Scope Ch 3: Channel 3 set to normal mode
• Scope Ch 4: Channel 4 set to normal mode

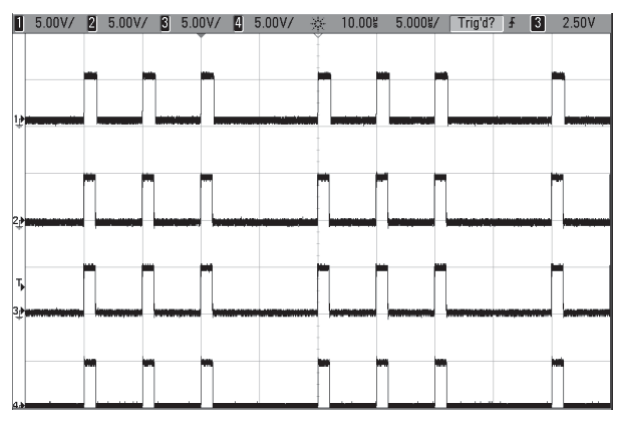

Using the System Duty Cycle Function

The Run/Stop button starts a continuous stream of T₀ pulses, which oscillates on for ‘N’ pulses and off for ‘M’ pulses, where ‘N’ and ‘M’ are specified by the On/Off parameters respectively. The rate at which the pulses are generated is controlled in the Rate menu. To generate a stream of pulses which will oscillate on for ‘N’ pulses and off for ‘M’ pulses set:

• System Mode: Duty Cycle mode
• On Count: 3
• Off Count: 1
• System Period: 10µs

Pressing the front panel Run/Stop key or entering the system State command will now generate a continuous stream of pulses in bursts as defined by the on/off parameters.

• Scope Ch 1: Channel 1 set to normal mode.
• Scope Ch 2: Channel 2 set to normal mode
• Scope Ch 3: Channel 3 set to normal mode
• Scope Ch 4: Channel 4 set to normal mode

Channel Timer Overview

The output of each channel is controlled by two timers to generate the pulse width and the delay timing. All channels are simultaneously triggered, depending on the system mode, by the internal T₀ pulse, the external trigger, or a trigger provided by a CPU. A given channel may or may not generate a pulse depending on its own channel mode as described below.

Using Channel Normal Function

The Normal mode generates a continuous string of pulses once the Run/Stop key is pressed. To use channel normal mode set:

• System Mode: Continuous mode
• System Period: 10µs
• Set the Channel parameters:
  • Enable the channel output
  • Set the delay desired.
  • Set the pulse width desired.

Pressing the front panel Run/Stop key or entering the system State command will now generate a stream of T₀ pulses at a rate specified by the system period parameter.

• Scope Ch 1: Channel 1 set to normal mode.
• Scope Ch 2: Channel 2 set to normal mode
• Scope Ch 3: Channel 3 set to normal mode
• Scope Ch 4: Channel 4 set to normal mode

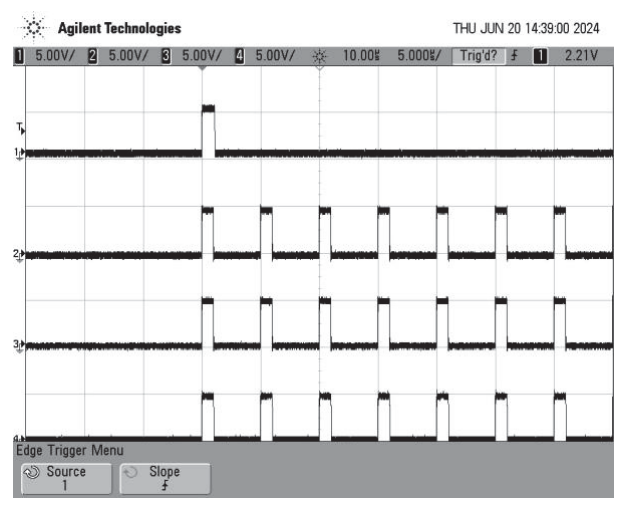

Using Channel Single Shot Function

The Single Shot mode generates a single pulse every time the Run/Stop key is pressed. To use the channels’ single shot mode set:

• System Mode: Continuous mode
• System Period: 10µs
• Set the Channel parameters:
  • Enable the channel output.
  • Set the delay desired.
  • Set the pulse width desired.
  • Set the mode to Single Shot.

Pressing the front panel Run/Stop key or entering the system State command will now generate one pulse on channel 1. Other channels can continue to generate pulses depending on the System Mode and/or the channel modes.

• Scope Ch 1: Channel 1 set to single shot mode.
• Scope Ch 2: Channel 2 set to normal mode
• Scope Ch 3: Channel 3 set to normal mode
• Scope Ch 4: Channel 4 set to normal mode

Using the Channel Burst Mode

The burst mode generates a burst of pulses every time the Run/Stop key is pressed. To use the channels’ burst mode set:

• Set the Channel parameters:
  • Enable the channel output.
  • Set the delay desired.
  • Set the pulse width desired.
  • Set the mode to Burst.
  • Set the Brst parameter to the number of pulses to produce in the burst.

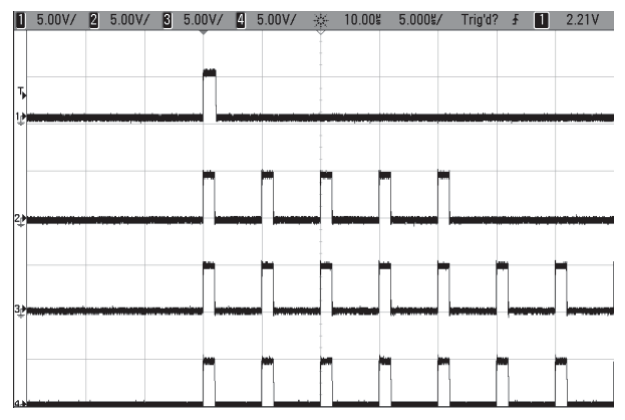

Pressing the front panel Run/Stop key or entering the system State command will now generate a burst of pulses. Other channels can continue to generate pulses depending on the System Mode and/or the channel modes.

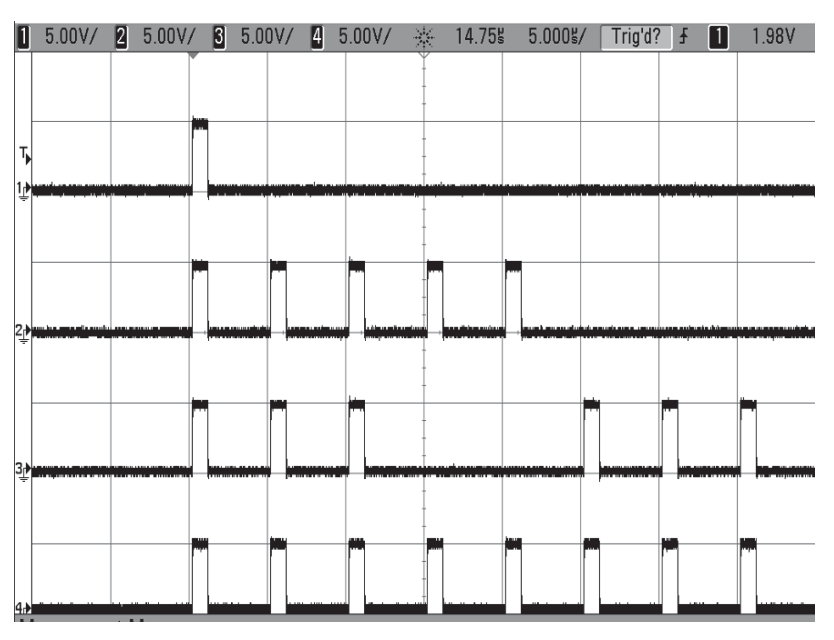

• Scope Ch 1: Channel 1 set to single shot mode.
• Scope Ch 2: Channel 2 set to burst (5) mode
• Scope Ch 3: Channel 3 set to normal mode
• Scope Ch 4: Channel 4 set to normal mode

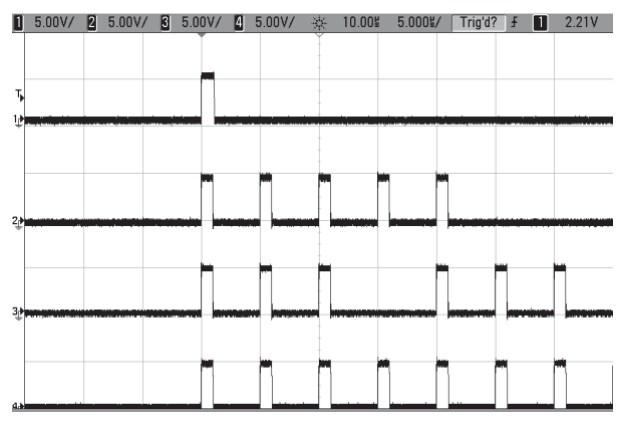

Using the Channel Duty Cycle Mode

The channel duty cycle mode will generate a stream of pulses on the channel level which will oscillate on for ‘N’ pulses and off or ‘M’ pulses. To generate the required sequence of pulses set:

• Set the Channel parameters:
  • Enable the channel output.
  • Set the delay desired.
  • Set the pulse width desired.
  • Set the mode to Duty Cycle.
  • Set the On parameter to the number of pulses to produce during the on cycle (‘N’).
  • Set the Off parameter to the number of pulses to suppress during the off cycle (‘M’).

Pressing the front panel Run/Stop key or entering the system State command will now generate a continuous series of ‘N’ pulses followed by ‘M’ suppressed pulses. Other channels can continue to generate pulses depending on the System Mode and/or the channel modes.

• Scope Ch 1: Channel 1 set to single shot mode.
• Scope Ch 2: Channel 2 set to burst (5) mode
• Scope Ch 3: Channel 3 set to duty cycle (3 on, 1 off)
• Scope Ch 4: Channel 4 set to normal mode

External Input Overview

The external inputs may be used to trigger the unit, gate the system timer, or to gate the channel timers. When using the trigger input the external input acts as a system start pulse. Depending on the system mode, the result of a trigger input can be a single pulse, a burst of pulses, or the start of a stream of pulses. Rear panel contains a trigger input and a gate input. The front panel contains an input that can be used as either a trigger input or a gate input. The trigger input can be either a 2.0v to 30v pulse or a switch closure (foot switch).

Using the External Gate to Control the System

The external gate may be used to control the output of the unit. To gate the internal system timer with an external source set:

• Set the Gate parameters:
  • Choose either Pulse or Output Inhibit.
    • Pulse inhibit will inhibit pulses without truncating the last pulse.
    • Output inhibit will suppress the pulse immediately, potentially truncating the pulse.
  • Set the threshold level to ~50% of the incoming gate signal.
  • Choose either active High or Low.

Pressing the Run/Stop button will arm the unit. Once the unit is armed it will start generating pulses once the external gate is in the active state. Pressing the Run/Stop key again will disarm the unit.

Using the Channel Gating Function

Each channel may use the external input to gate or control its output. The gate controls the triggering of the channel. To use the channel gate set the following parameters:

• Set the Gate parameter:
  • Set the mode to Chan Mode.
• Set the Advanced Channel parameters:
  • Set the channel gate parameter to either Pulse Inhibit or Output Inhibit.
  • Set the gate logic to either Active High or Active Low.

In Pulse Inhibit mode the gate prevents the channel from being triggered by the channels’ trigger source. When in Pulse Inhibit mode if a pulse has already started when the gate disables the channel the pulse will continue normal output, but the output will not restart on the next trigger pulse. In Output Inhibit mode the gate leaves the base triggering alone and will enable/disable the output directly. When in Output Inhibit mode if a pulse has already started when the gate disables the channel the pulse will be immediately cease.

Generate a Pulse on Every Trigger Input

To generate a pulse on every trigger input set the following parameters:

• Set the System Mode to Single Shot mode.
• Set the Trigger parameters:
  • Select the Triggered mode.
  • Set the trigger threshold level to ~50% of the incoming signal.
  • Select either rising or falling edge for the unit to trigger on.

Pressing the Run/Stop key will arm the unit. Once the unit is armed it will generate a T₀ pulse for every external trigger received. Pressing the Run/Stop button again will disarm the unit. This mode corresponds to the normal external trigger mode found on most other pulse generators.

Generate a Burst of Pulses on Every Trigger Input

To generate a burst of pulses on every trigger input set the following parameters:

• Set the System parameters:
  • Set the mode to Burst.
  • Set the number of pulses that is desired for each input signal.
  • Set the period desired between pulses.
• Set the Trigger parameters:
  • Set the Triggered mode.
  • Set the trigger threshold level to ~50% of the incoming signal.
  • Select either rising or falling edge for the unit to trigger on.

Pressing the Run/Stop button will arm the unit. Once the unit is armed it will generate a set of pulses for every external trigger received. The units’ timer is reset at the end of a burst and will generate another set of pulses upon receiving a new trigger. Triggers that occur in the middle of a burst will be ignored. Pressing the Run/Stop key again will disarm the unit.

Start a Continuous Stream of Pulses Using the External Trigger

The external trigger may be used to cause the unit to start generating pulses by setting:

• Set the System Mode to Continuous mode.
• Set the Trigger parameters:
  • Set the Trigger mode.
  • Set the trigger threshold level to ~50% of the incoming signal.
  • Select either rising or falling edge for the unit to trigger on.

Pressing the Run/Stop button will arm the unit. Once the unit is armed it will start generating pulses after an external trigger is received. Triggers that occur after the initial trigger will be ignored. Pressing the Run/Stop key again will disarm the unit.

5. 588B Application

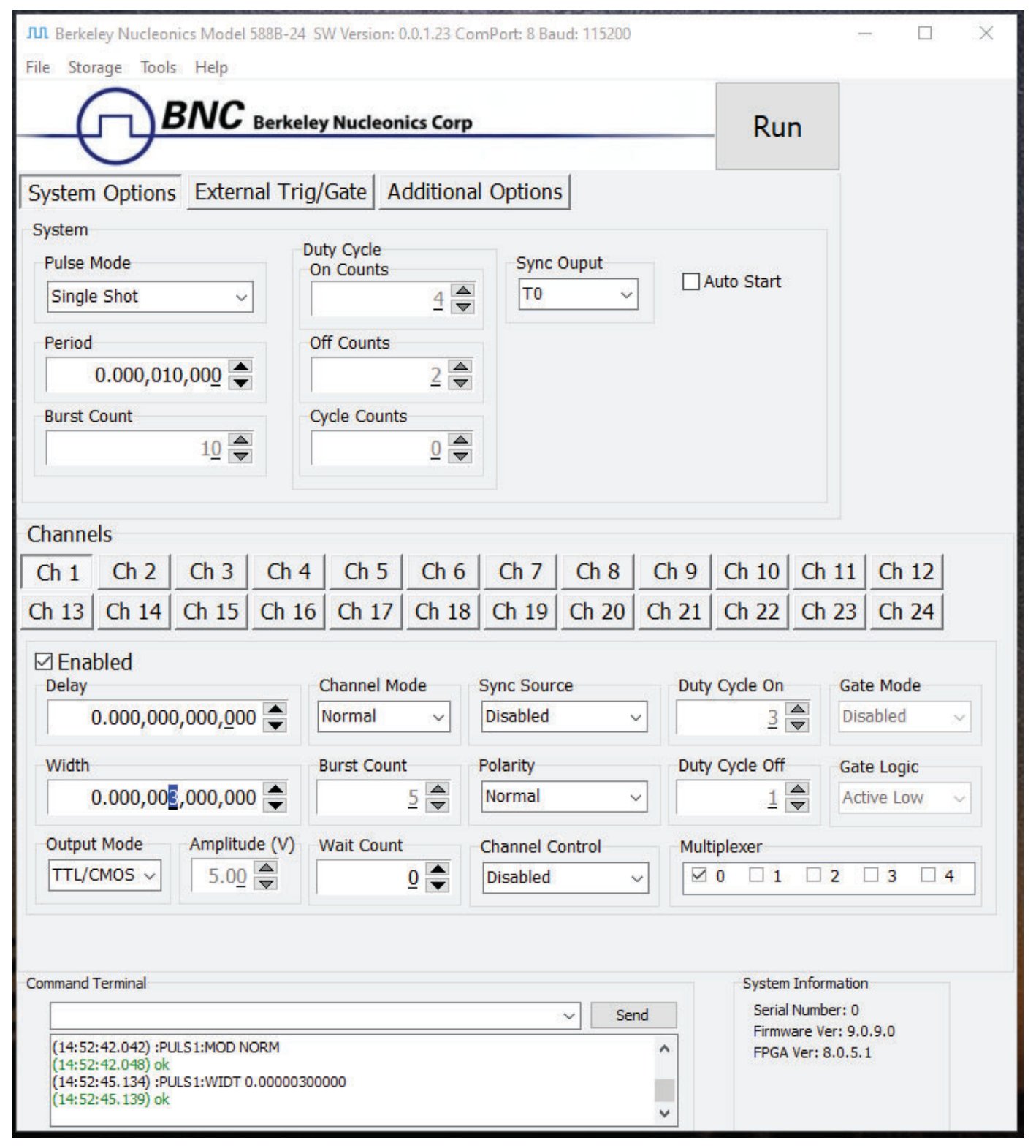

Aside from using the SCPI command protocol, the included software application is the primary means of communication with the 588B. This application allows simple control of the 588B unit via the USB or RS232 communications port. To run the software, simply double click on the application which can be found on the included USB drive. No installation is required. The software can also be copied to your computer and run from any location. The screenshot shows the 588B application and all of the corresponding default parameters:

6. Programming the 588B

Personal Computer to Pulse Generator Communication

The 588B has three standard interfaces which are RS-232, USB, and an Ethernet port. All menu settings can be set and retrieved over the computer interface using a simple command language. The command set is structured to be consistent with the Standard Commands for Programmable Instruments (SCPI). Although due to the high number of special features found in the 588B, many of the commands are not included in the SCPI specification. The syntax is the same for all interfaces. The amount of time required to receive, process, and respond to a command at a Baud rate of 115200 is 10 ms. Sending commands faster than 10 ms may cause the unit to not respond properly. All commands return a response and best practices require software to wait until the response from the previous command is received before sending the next command. This will provide fast, reliable communication with the system.

RS-232 Interface Overview

The serial port is located on the back of the 588B and uses a 9-pin D-type connector with the following pinout (as viewed from the back of the unit):

The serial port parameters should be set as follows:

USB Interface Overview

The USB interface is standard on the 588B. The interface is a Plug-n-Play capable interface. USB communication is achieved by using a mapped (virtual) COM port on the PC. The driver installation executable will obtain an unused COM port number, install the USB drivers, and make that COM port number available for typical RS-232 communication to the pulse generator. HyperTerminal or other common software may be used.

When communicating through the mapped COM port over USB, the baud rate for the communication port used by the USB chip must match the baud rate for the COM port on the PC. Access to the USB port baud rate is done using the SCPI command :SYSTem:COMMunicate:SERial:USB “n” command; where “n” is the desired communication speed. This parameter can be accessed via any communication method. The default baud rate for USB is 38400.

USB communication notes:

• The correct drivers must be installed on the personal computer before communication can be accomplished via USB.
• The Baud Rates on the PC and the pulse generator must match for successful communication.
• The USB port’s Baud Rate on the pulse generator can be set using the SCPI command SYSTem:COMMunicate:SERial:USB “n”, where “n” can be: 4800, 9600, 19200, 38400, 57600, or 115200.
• USB 2.0 specification is used. The USB cable can be removed without “ejecting” the device in the operating system environment.

Ethernet Interface Overview

An Ethernet interface is also standard on the 588B. Refer to Appendix C included at the end of this manual for more information about the Ethernet Interface and Operation.

Programming Command Types and Format

The 588B Pulse Generator uses two types of programming commands: IEEE 488.2 Common Commands and Standard Commands for Programmable Instruments (SCPI). The format is the same for all interfaces. HyperTerminal (in Windows) or any other generic terminal program may be used to interactively test the commands using the RS-232 interface. The format of each type is described in the following paragraphs.

Line Termination

The pulse generator uses text-style line terminations. When a command is sent to the unit, the firmware is programmed to read characters from a communication port until it reads the line termination sequence. The command string is parsed and executed after reading these characters. These characters are the “carriage return” and “linefeed”. They are ASCII character set values 13 and 10 respectively (hex 0x0D and 0x0A). All command strings need to have these characters appended.

When the pulse generator responds to a command, whether it is a query or a parameter change, it also appends its return strings with these characters. Coded applications could use this behavior to know when to stop reading from the unit. However, if the “echo” parameter is enabled, there will be two sets of line terminators, one following the echoed command string, and one following the pulse generator’s response.

The pulse generator responds to every communication string. If the communication string is a query, the unit responds with the queried response (or error code) followed by the line terminators. If the communication string is a parameter change, the response is “ok” (or error code) followed by the line terminators. For this reason, it is not recommended that multiple commands be stacked together into single strings as is common with some other types of instruments. It is recommended that the coded application send a single command in a string and follow immediately by reading the response from the unit. Repeat this sequence for multiple commands.

IEEE 488.2 Common Command Format

The IEEE 488.2 Common Commands control and manage generic system functions such as reset, configuration storage and identification. Common commands always begin with the asterisk (*) character and may include parameters. The parameters are separated from the command pneumonic by a space character. For Example:

SCPI Command Keywords

The commands are shown as a mixture of upper- and lower-case letters. The upper-case letters indicate the abbreviated spelling for the command. You may send either the abbreviated version or the entire keyword. Upper and/or lower-case characters are acceptable.

For example, if the command keyword is given as POLarity, then POL and POLARITY are both acceptable forms; truncated forms such as POLAR will generate an error; polarity, pol, and PolAriTy are all acceptable as the pulse generator is not case sensitive.

SCPI Command Format

SCPI commands control and set instrument specific functions such as setting the pulse width, delay, and period. SCPI commands have a hierarchical structure composed of functional elements that include a header or keywords separated with a colon, data parameters, and terminators. For example:

Any parameter may be queried by sending the command with a question mark appended. For example:

SCPI Keyword Separator

A colon (:) must always separate one keyword from the next lower-level keyword. A space must be used to separate the keyword header from the first parameter.

SCPI Optional Keywords

Optional keywords and/or parameters appear in square brackets ( [ ] ) in the command syntax. Note that the brackets are not part of the command and should not be sent to the pulse generator. When sending a second level key word without the optional keyword, the pulse generator assumes that you intend to use the optional keyword and responds as if it had been sent.

SCPI Specific and Implied Channel

Some commands, such as PULSe, allow specifying a channel with an optional numeric keyword suffix. The suffix will be shown in square brackets [ 1 / 2 ]. The brackets are not part of command and are not to be sent to the pulse generator. The numeric parameters correspond to the following channels: 0 = T₀, 1 = ChA, 2 = ChB, etc. Only one channel may be specified at a time. If you do not specify the channel number, the implied channel is specified by the :INSTrument:SELect command or the last referenced channel. After power-up or reset (*RST) the instrument will default to channel #1.

SCPI Parameter Types

The following parameter types are used:

Error Codes

The unit responds to all commands with either:

ok <cr><lf> or ?”n“<cr><lf>

Where “n” is one of the following error codes:

1. Incorrect prefix, i.e. no colon or * to start command.
2. Missing command keyword.
3. Invalid command keyword.
4. Missing parameter.
5. Invalid parameter.
6. Query only, command needs a question mark.
7. Invalid query, command does not have a query form.
8. Command unavailable in current system state.

Programming Examples

Example 1) 20 ms pulse width, 2.3 ms delay, 10 Hz internal trigger, and continuous operation.

To start the pulses use either of the following commands:

Example 2) 25µs pulse width, 0 delay, external trigger, and one pulse for every trigger.

To arm the instrument in external gate mode, use either of the following commands:

A software generated external trigger can be generated by using the following command:

588B SCPI Command Summary

IEEE 488.2 Common Commands

Config Command (*CFG)

*CFG ch# [parameter 1] [parameter 2] [parameter 3] … [parameter n]

ch# = channel number, 0 = System parameters, 9x = Trigger / Gate parameters. The parameter list (partial list) is terminated by a line feed or a carriage return.

Quick Configuration Commands

7. Appendix A – Specifications

588B Specifications

Output Module Specifications

System External Trigger/Gate Input(s)

Standard Features

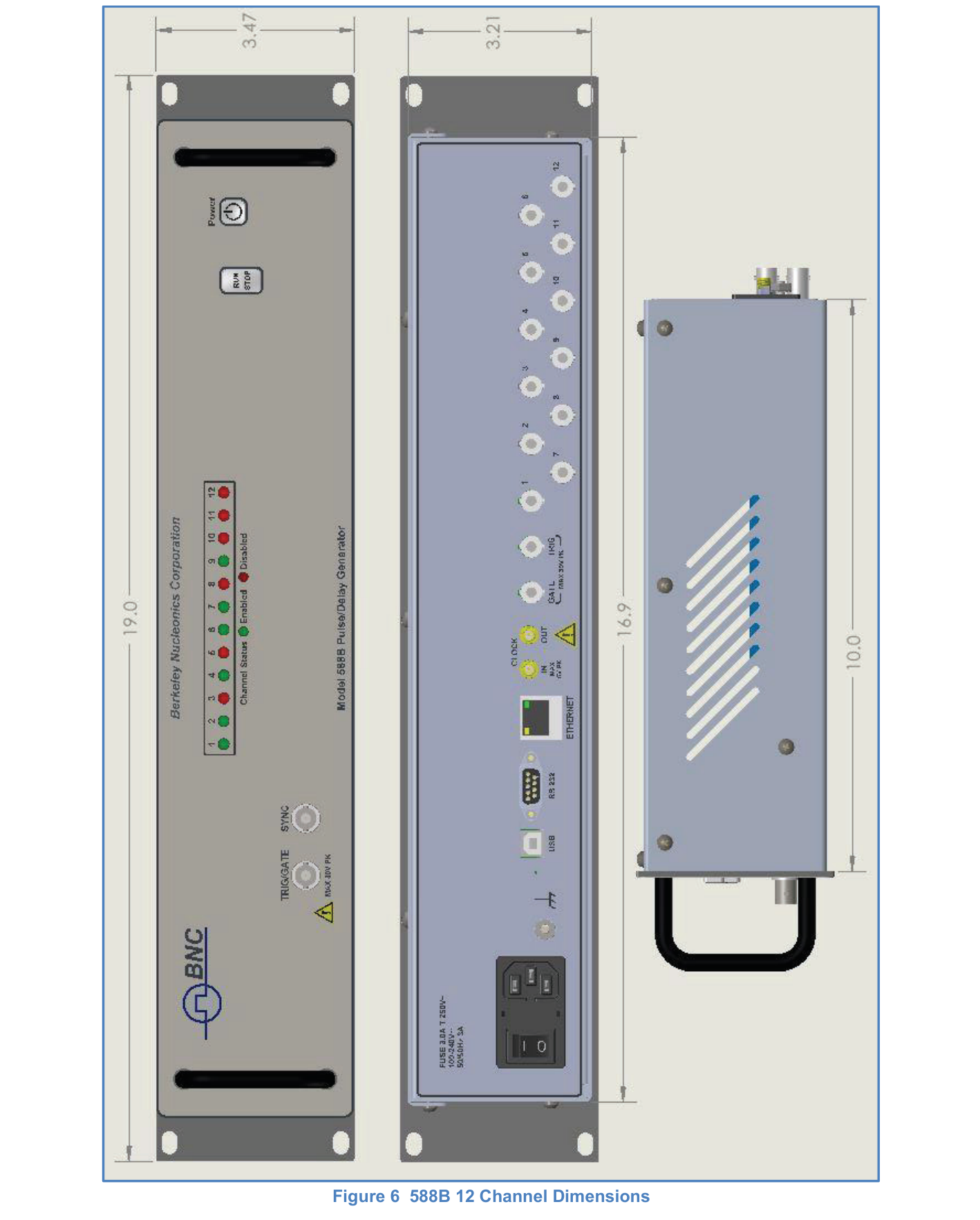

588B Mechanical Dimensions

8. Appendix B – Safety Symbols

Safety Marking Symbols

Technical specifications including electrical ratings and weight are included within the manual. See the Table of Contents to locate the specifications and other product information. The following classifications are standard across all BNC products:

• Indoor use only
• Ordinary Protection: This product is NOT protected against the harmful ingress of moisture.
• Class 1 Equipment (grounded type)
• Main supply voltage fluctuations are not to exceed ±10% of the nominal supply voltage.
• Pollution Degree 2
• Installation (overvoltage) Category II for transient overvoltage’s
• Maximum Relative Humidity: <80% RH, non-condensing
• Operating temperature range of 0°C to 40°C
• Storage and transportation temperature of -40°C to 70°C
• Maximum altitude: 3000 m (9843 ft.)
• This equipment is suitable for continuous operation.

This section provides a description of the safety marking symbols that appear on the instrument. These symbols provide information about potentially dangerous situations which can result in death, injury, or damage to the instrument and other components.

9. Appendix C – Ethernet Connectivity

The Ethernet module used in Berkeley Nucleonics Corporations’ pulse generators is a “Digi Connect ME” device manufactured by Digi International, Inc. It supports virtually all practical Ethernet communication methods. A set of utilities and documentation by Digi is included on the CD/USB shipped with the pulse generator. This discussion assumes that the Digi utilities included with your pulse generator and National Instruments VISA (version 3.3 in this procedure, see National Instruments’ website) are installed.

Determining IP address

The Digi module has been reset to factory defaults before it left the manufacturing facility. In this mode, it is ready to be assigned an IP address by the local DHCP server. If a crossover cable is being used, the Ethernet device will assume a default IP address.

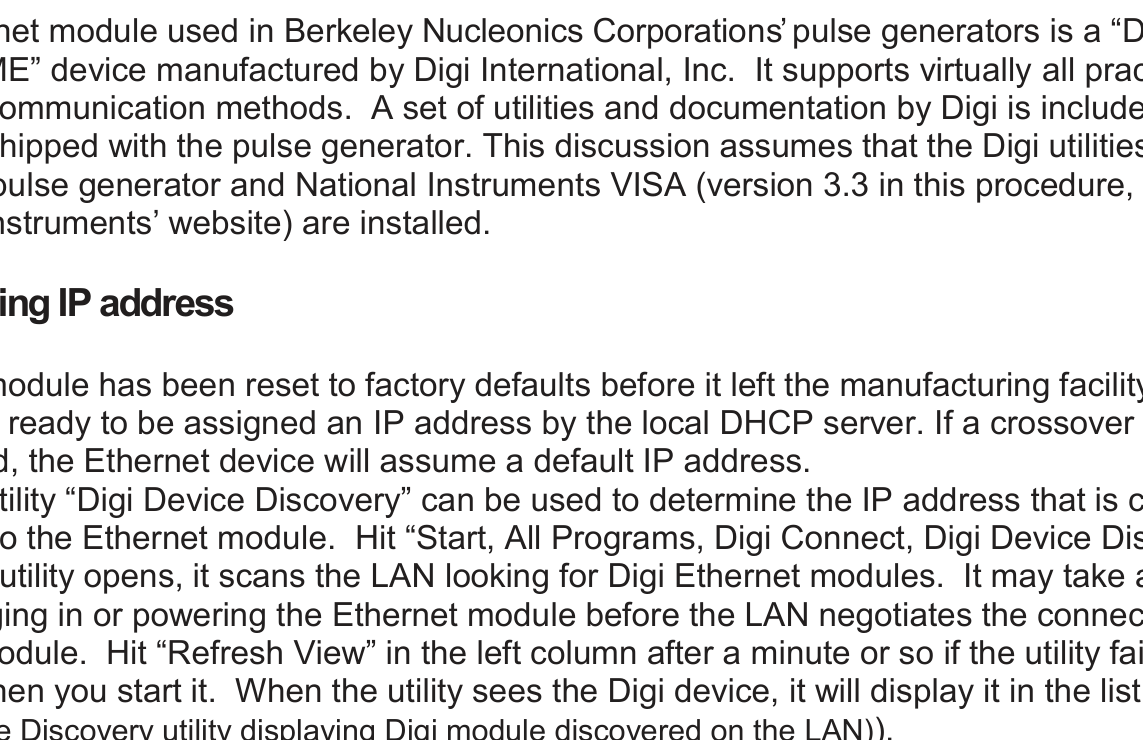

The Digi utility “Digi Device Discovery” can be used to determine the IP address that is currently assigned to the Ethernet module. Hit “Start, All Programs, Digi Connect, Digi Device Discovery”. When the utility opens, it scans the LAN looking for Digi Ethernet modules. It may take a minute after plugging in or powering the Ethernet module before the LAN negotiates the connection with the Digi module. Hit “Refresh View” in the left column after a minute or so if the utility fails to see the unit when you start it. When the utility sees the Digi device, it will display it in the list (Figure 8).

Note the IP address for use later. A static IP address can be set using the “Configure network settings” link in the left hand column. From this point, a web interface can be opened, allowing access to configuration options for the Digi module. Select “Open web interface” under the device tasks on the left hand column of the Digi Device Discovery software.

You will be required to enter a username and password. Units built after January 2021 will have a unique password for each unit. The password can be found on the paperwork shipped with the device and there will also be a label on the device indicating the password.

• Username: “root”
• Password: <unit specific>

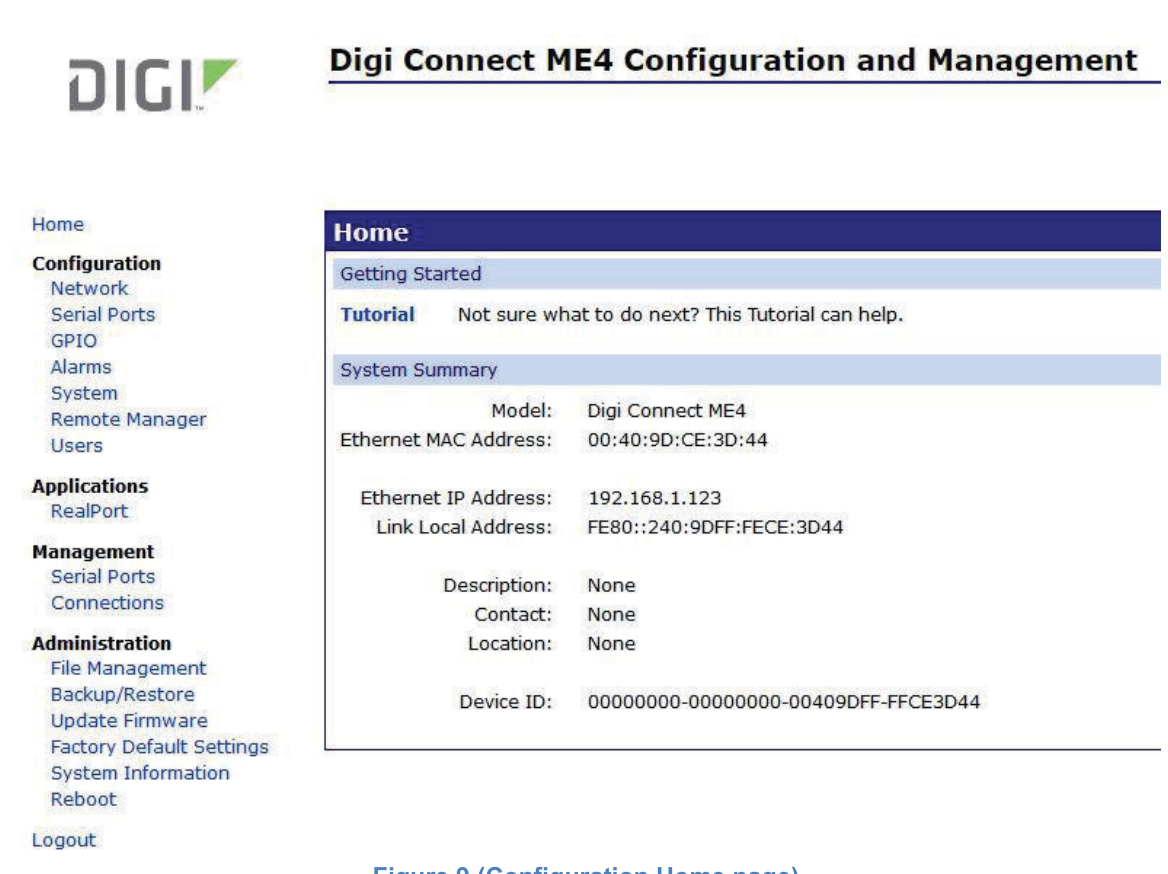

The Digi Connect ME Configuration and Management home page will be displayed (Figure 9).

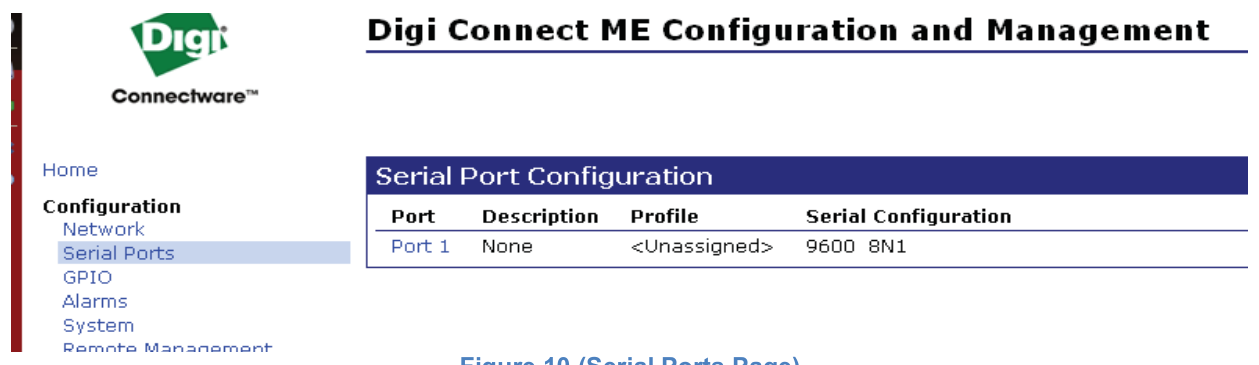

From the home page select “Serial Ports” on the left hand side. The serial port configuration page will be displayed (Figure 10).

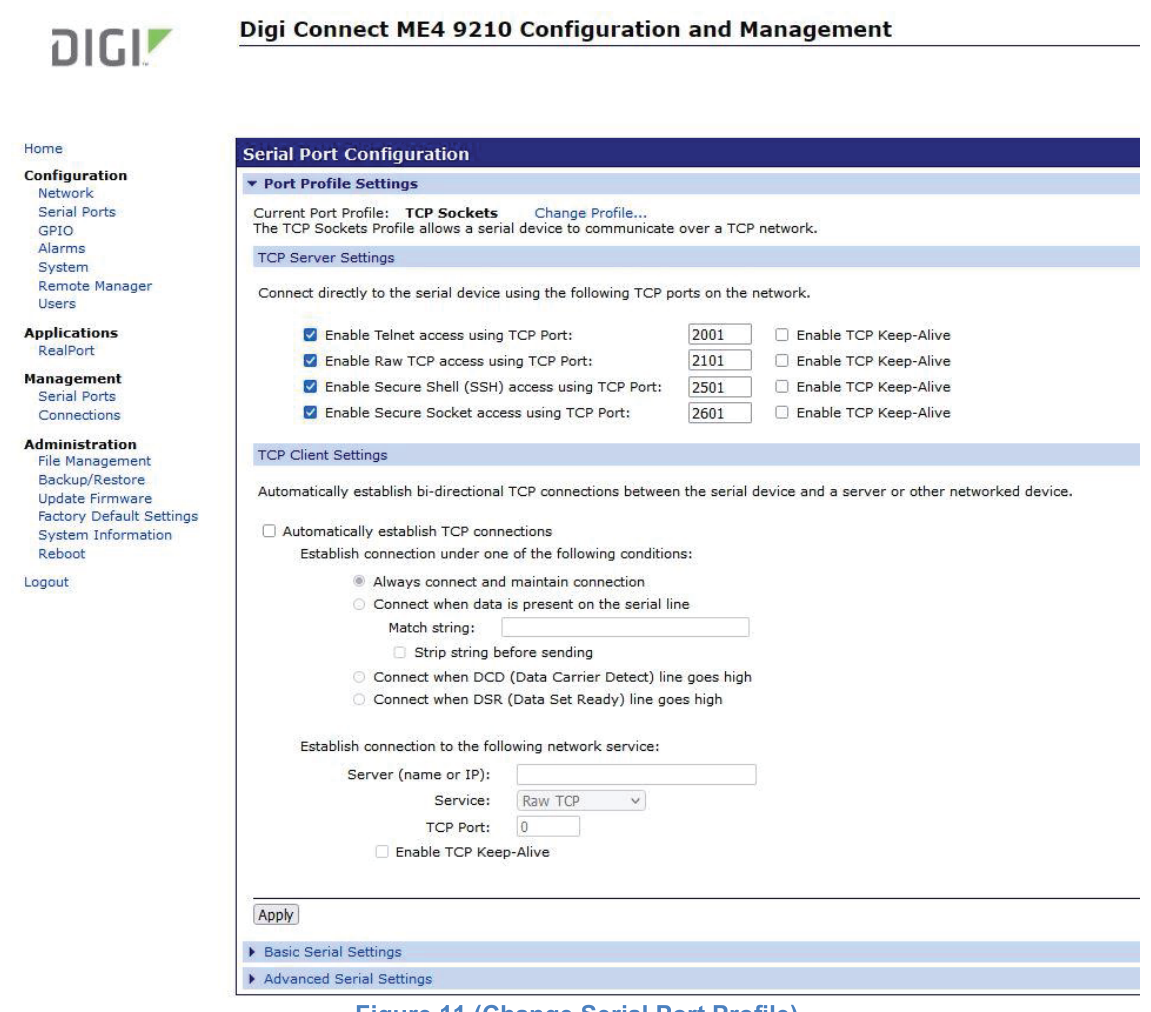

Select Port 1 from the list of ports. The Port Profile Settings will then be displayed. Be sure that the box next to “Enable Raw TCP access using TCP Port:” is selected and note the port number. By default the port number is 2101. Then change the current port profile by selecting the “Change Profile…” link (Figure 11).

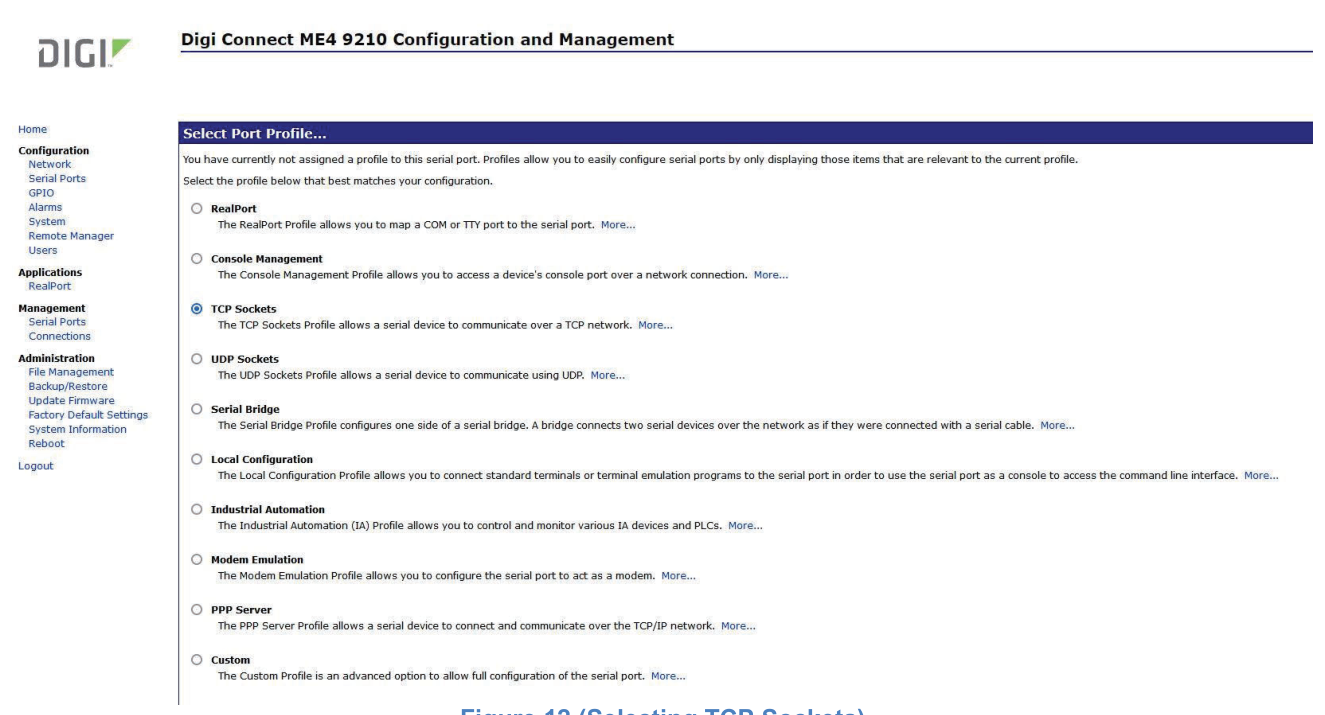

Select TCP Sockets from the list of available profiles and click on apply at the bottom of the page (Figure 12).

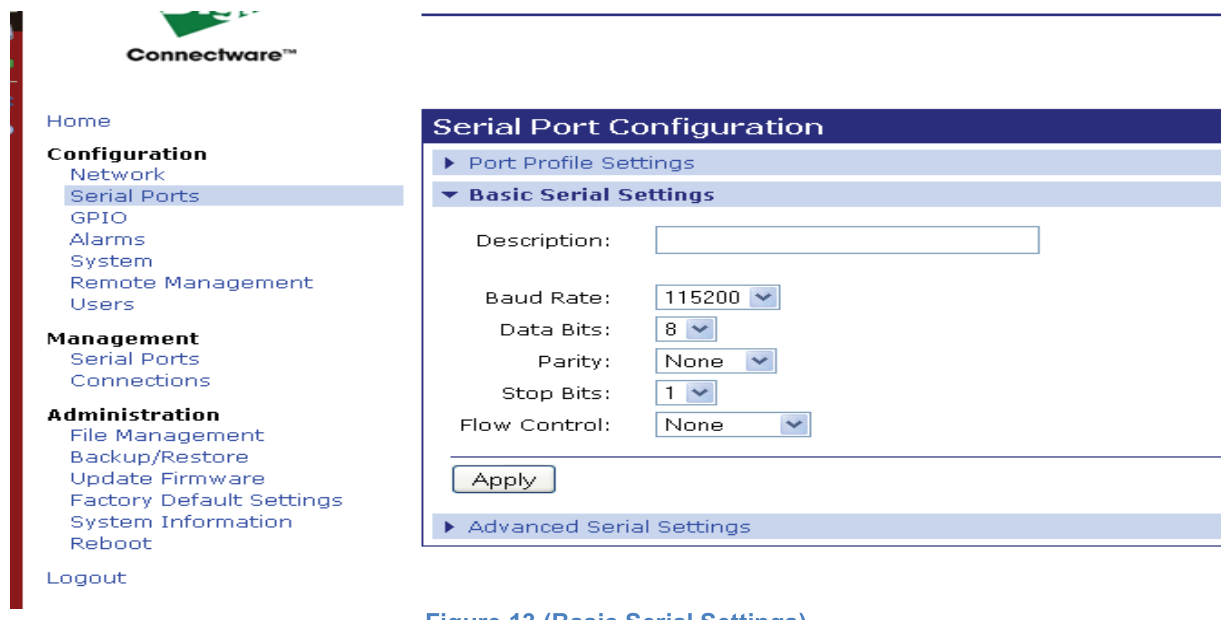

Next, select the “Basic Serial Settings” section located below the “Port Profile Settings” section. Set the baud rate to 115200 (Figure 13).

Click on apply after changing the baud rate. Select “Logout” from the bottom of the left hand column. After logging out power cycle the instrument. Use the Digi Device Discovery software to see if the IP address of the unit appears again. Once the unit has been identified the unit is ready for communication.

Testing Ethernet Communication

Ethernet communication to the pulse generator can be tested using any terminal utility that supports TCPIP. Two options are the “VISA Interactive Control” that is installed with National Instruments VISA libraries and another is Putty.

VISA Interactive Control Example

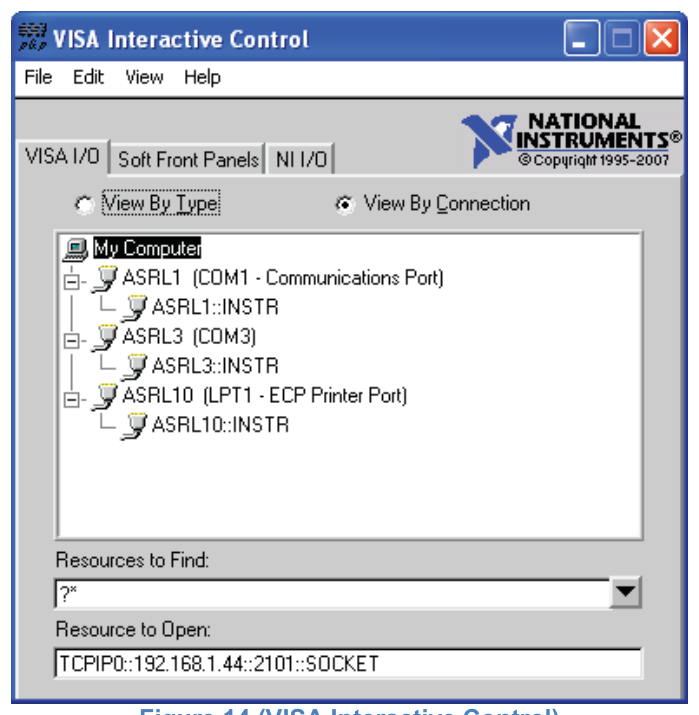

After determine the IP address for the unit, “VISA Interactive Control” can be used to send and receive command strings to and from the pulse generator. The VISA Interactive Control can be found installed in the National Instruments program group. When this utility opens, it displays local resources found. TCPIP resources are typically not shown in this window. However, the resource string can be successfully entered manually in the “Resource to Open” field (Figure 14). The resource string for Digi Connect Ethernet Modules in Berkeley Nucleonics Corporation pulse generators needs to be formatted as follows:

TCPIP0::<IP address>::2101::SOCKET

Or, for example:

TCPIP0::192.168.1.44::2101::SOCKET

A session window will open allowing access to communication parameters and read and write buffer access and control. Berkeley Nucleonics Corporation units support SCPI formatted command strings. For these units, command strings and responses are both terminated with text-style line terminations, a carriage return and linefeed pair. These are ASCII characters number 13 and 10 respectively. They are represented in this utility (and in many other contexts) as “\r\n”. In hexadecimal, these are represented as “0x0D” and “0x0A”, respectively. When sending command strings to the pulse generator, strings need to be terminated with a carriage return and linefeed pair. Without this line termination, the pulse generator will not execute commands, but continue to wait for more characters until it sees this string termination sequence.

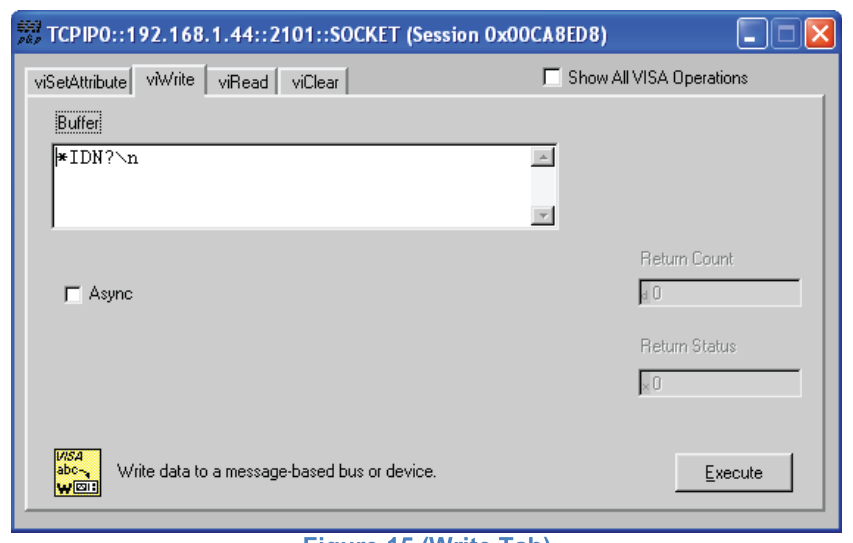

Select the “Write” tab (Figure 15).

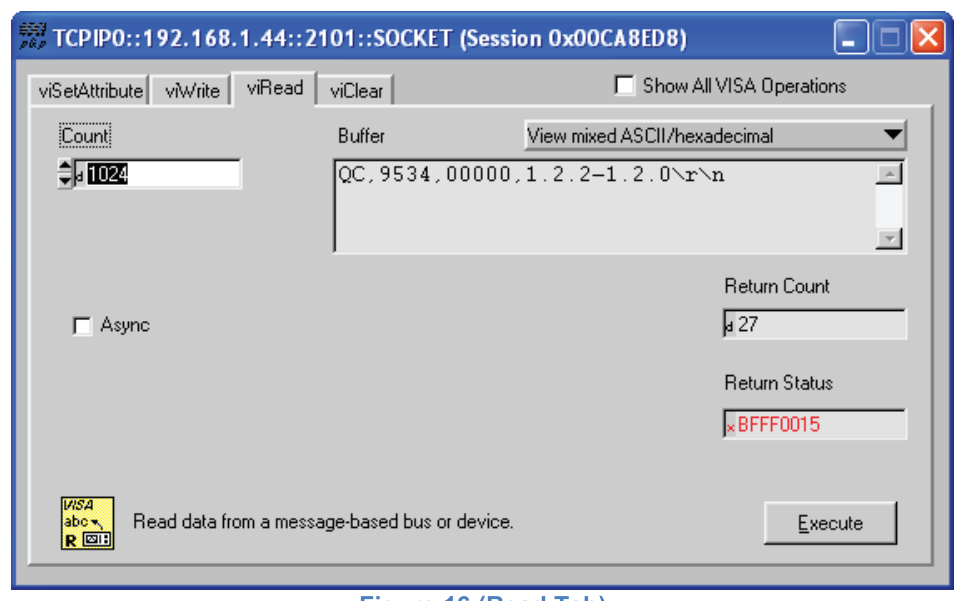

The “Buffer” field can be edited to send any valid command to the pulse generator. Hit “Execute” to send the “*IDN?” command. Now select to the “Read” tab (Figure 16).

Successive iterations between “Write” and “Read” operations can be accomplished from here. Keep in mind that it is always best to follow each “Write” command immediately with a “Read” command, whether the commands are generated from a utility such as this, or from a more complex coded application. The pulse generator is designed to respond to every command line with either the result of a query (ie, “:pulse1:width?\r\n” could return “0.000100000”), or a simple “ok\r\n” to acknowledge a successful parameter change. If a “Read” command does not follow each “Write” command, the read (output) buffer in the pulse generator can overfill and become corrupt.

Putty Example

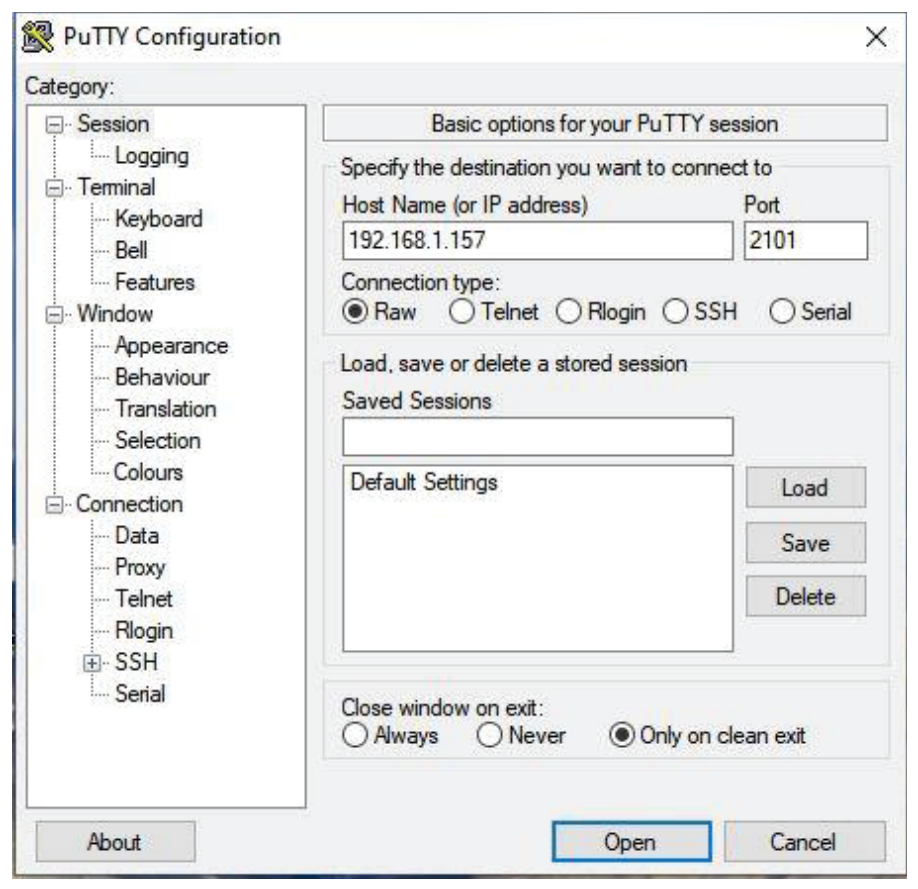

Putty is an open source terminal emulator that can be used for various methods of communications. Once Putty is installed and run for the first time, a few parameters need to be entered before communications with the unit can be established (Figure 17).

• Host Name (or IP Address): Enter the IP address of the unit determined by using the Digi Device Discovery utility as described previously.
• Port: Enter the port number of the device as set during the device configuration. Default is 2101.
• Connection type: Select Raw.

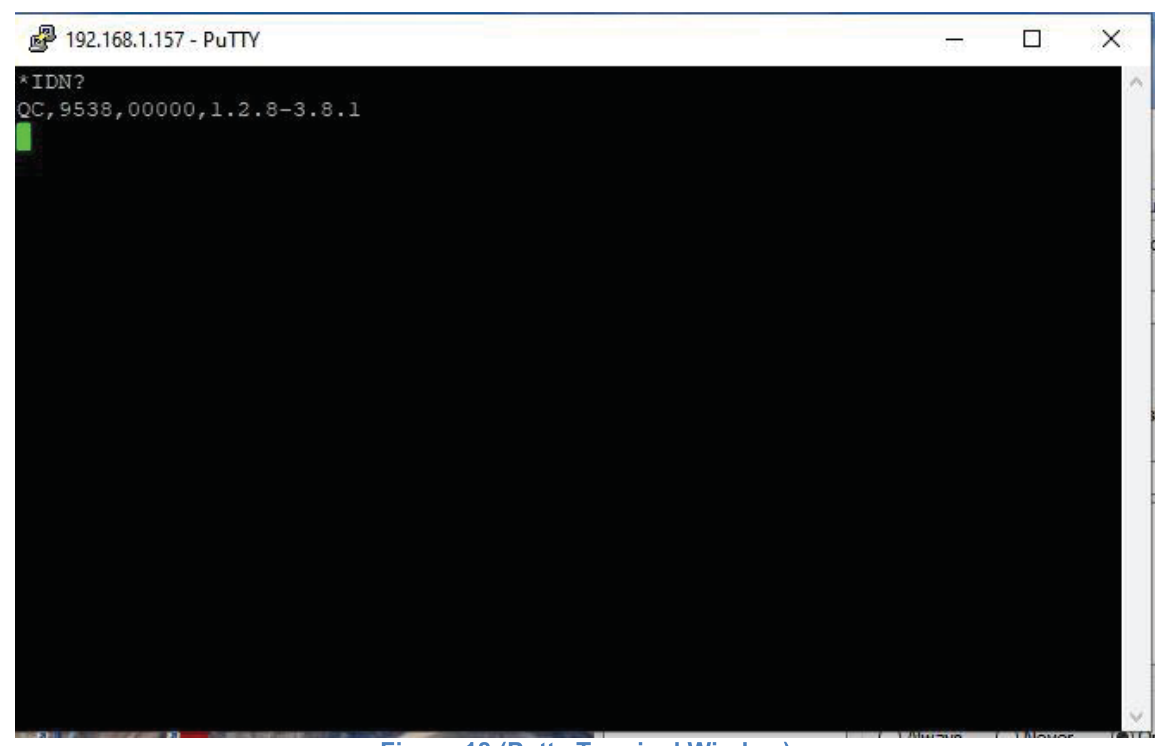

Select Open and a new window will appear (Figure 18). In this window, commands or queries can be sent to the unit. In the example, an *IDN? query is sent. Once enter is pressed, a response should be received.

Many applications may need a communication mechanism no more sophisticated than what can be achieved with these simple utilities. At the very least, these tools can be used to verify that the pulse generator and communication hardware are functioning properly. From here, a specific application in whatever preferred programming language can be built.

10. Appendix F – Impedance Matching Outputs

TZ50 Impedance Matching Output Module

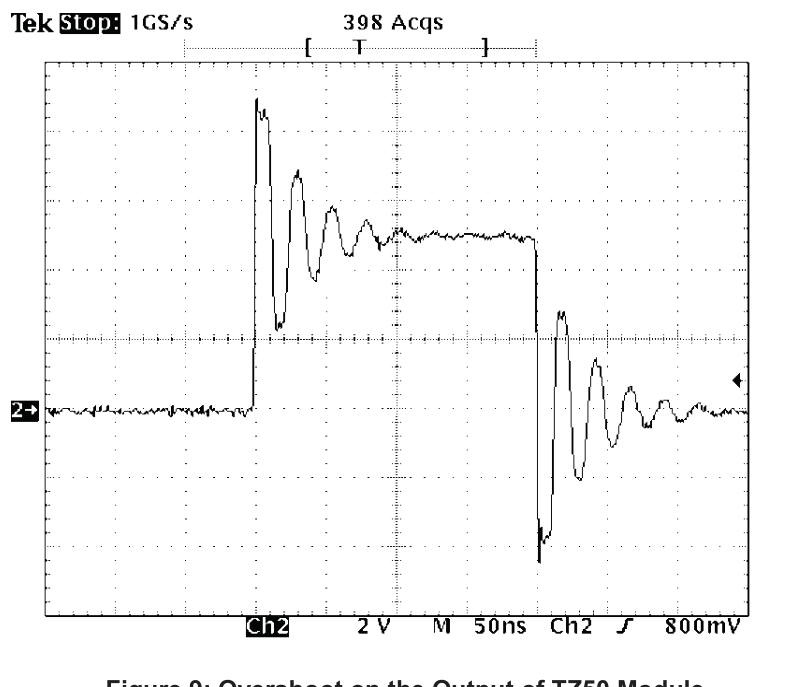

This module option allows a user to have a 50 Ω load on the output while maintaining output amplitude of at least 4 Volts while in the TTL/CMOS mode. All other functionality of the module is the same as the AT20 modules, including output while using the Adjustable Mode Function of the channels.

TTL/Adjustable Outputs

11. Appendix H – External Clock

588B External Clock Operation

The 588B pulse generator can utilize an external clock input to synchronize instrument timing. The following specifications must be met in order for proper external clock operation:

12. Support / Contact

For technical support, warranty service, or questions about operating the Model 588B, contact Berkeley Nucleonics Corporation:

• Phone: (415) 453-9955
• Email: info@berkeleynucleonics.com
• Web: www.berkeleynucleonics.com
• Address: Berkeley Nucleonics Corporation, 2955 Kerner Blvd., San Rafael, CA 94901
