User Manual

SAM 950 User Manual

The SAM 950 is a ruggedized handheld radiation isotope identifier built to meet ANSI N42.34 for radionuclide detection and identification. Its patented PDA-based architecture is designed for demanding field, first response, and military environments, with gamma detection standard and neutron detection available as an option.

Document: User Manual / SAM 950 / v1.5 (Print Code 52028210)
SAM 950 Ruggedized Radiation Isotope Identifier

1Introduction

The SAM 950 is designed to meet the requirements of ANSI 42.34 criteria for hand-held instruments for the detection and identification of radionuclides.

This instrument provides a superb solution for the demanding requirements of emergency responder and Homeland Security in the USA and other countries. Our solution replaces traditional designs with a unique solution that seamlessly integrates a powerful PDA or Smartphone with the Nuclear Radiation measuring detectors.

The SAM 950 unit is designed to accommodate various type and size of radiation detectors. Available detectors are: 2x2 or 3x3 inch NaI(Tl), 1.5x1.5 or 2x2 inch high resolution detectors such as LaBr3 or CeBr3. The unit also equips a supplementary GM tube which takes over measurement of high dose radiation when it exceeds 10 mR/h. A solid state neutron detector, "Domino", which has small form factor with superior gamma rejection than He-3 detector can be added optionally.

One of the most distinctive features compared to the conventional hand-held RIIDs are attaching photo, video and/or voice/text comments to the event file. In addition, measured events can be sent via WiFi network to a reach-back center and/or RadResponder site in real time. These feature are enabled by the powerful smartphone application SW, PeakAbout III.

Data acquisition is securely conducted via wired connection to the Personal Digital Assistant (PDA) unit. The standard PDA unit is the Samsung J5 or equivalent. The PDA display provides the user with easy to read information providing assessment of current radiological levels including personal safety and radionuclide identification. Upon completion of a survey the data may be downloaded from the PDA unit to the PC. The optional GPS unit provides the data necessary for mapping of the radiation levels.

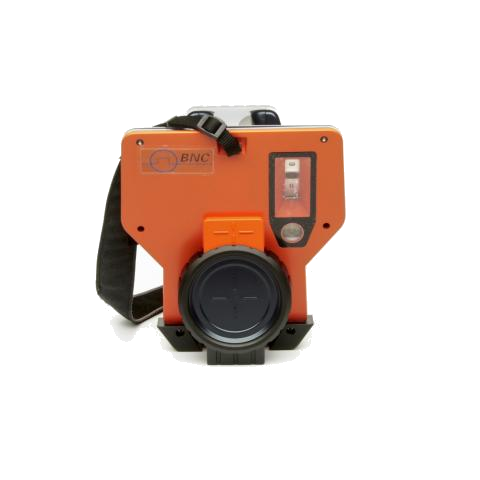

SAM 950 Ruggedized Radiation Isotope Identifier

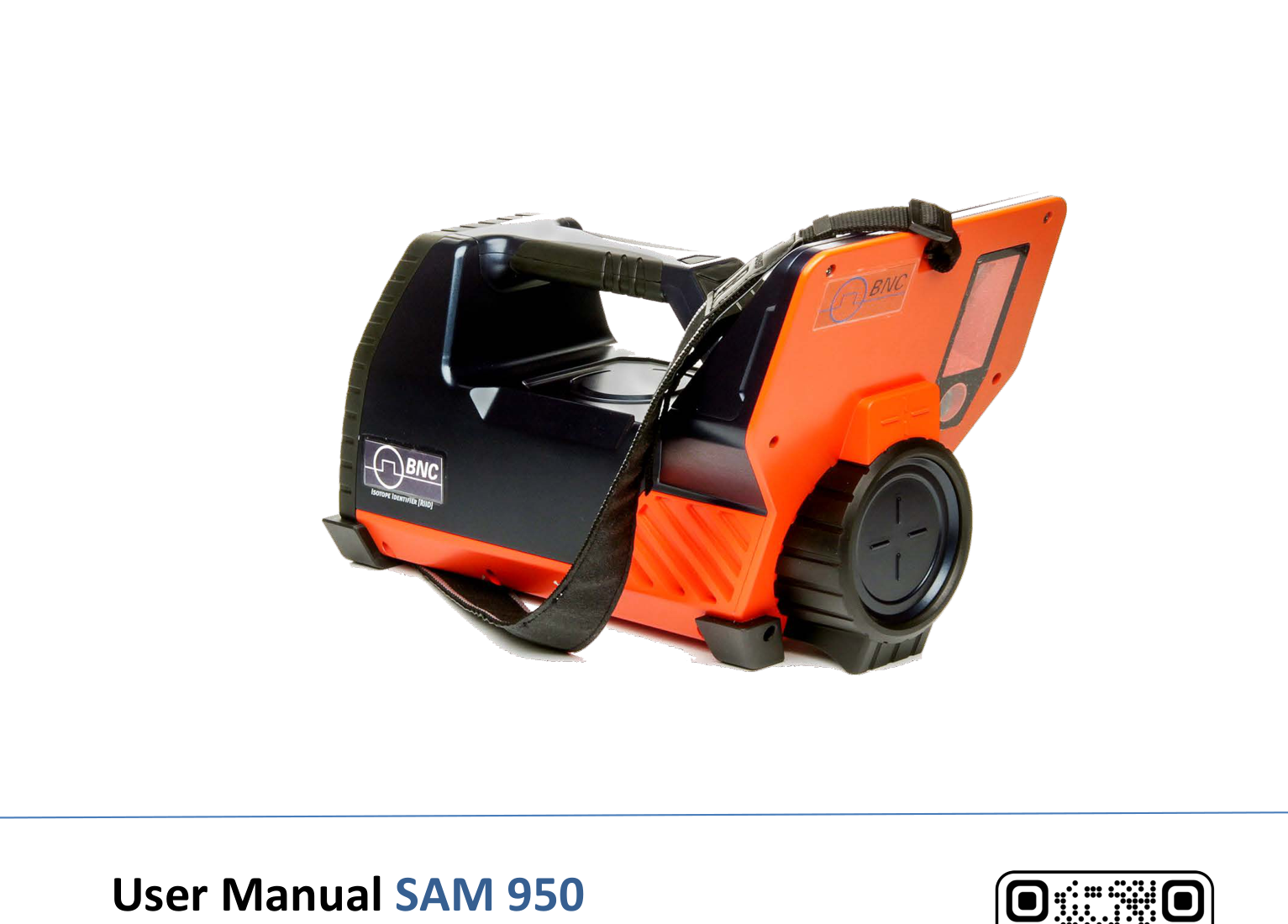

Figure 1.1. SAM 950

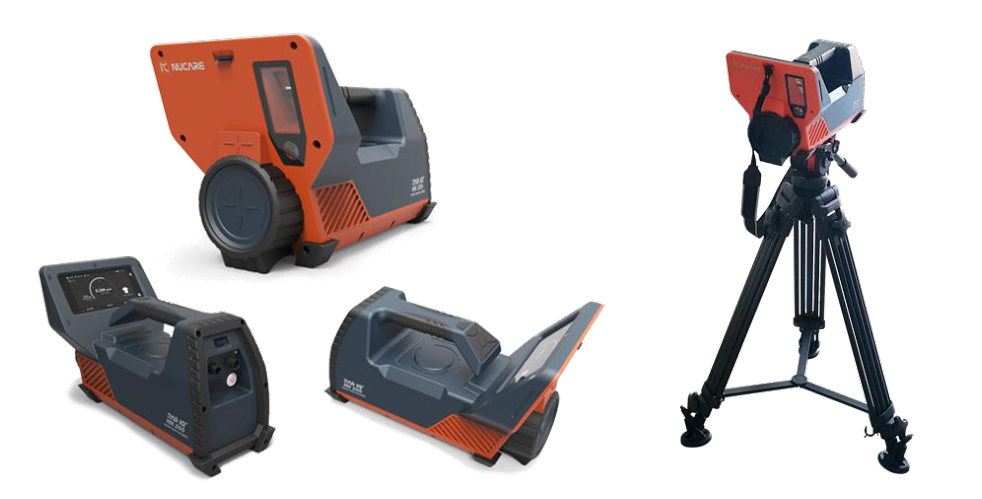

SAM 950 detector unit with tripod
Figure 1.1. SAM 950
Emergency Responder and Homeland Security application examples
Figure 1.2. Application examples

Important Safety Information

The SAM 950 has been meticulously engineered to provide safe, dependable, high performance to its user for years to come. But, as with any kind of electrical equipment, following instructions and taking basic precautions will prevent injury to yourself or to the equipment. Therefore, prior to using this equipment you should:

  • Read and understand this manual thoroughly.
  • Store all provided documents in a safe place for future reference.
  • Especially be sure to read the "SAFETY" chapter of this manual and thoroughly understand all warning and caution labels.

Product Warranty

Description of the Berkeley Nucleonics Corporation warranty for the SAM 950 handheld RIID systems:

  • The unit is warranted to be free of defects in material and workmanship, including: parts, labor and all unit elements.
  • Unless otherwise indicated, the warranty is good for 12 months after delivery to the original buyer only.

2Safety

Cautions and Notes

The following warnings and instructions are vital to the optimal operation of the SAM 950 unit and should be made readily accessible for reference. Follow these warnings and instructions thoroughly to use the unit correctly and to protect the safety of the users.

Handling Instructions

  • The maintenance service of the unit should only be handled by qualified/trained personnel.
  • Cleaning the Camera and Flash lamp Windows: clean the windows with a soft, moist cloth to keep them clean and clear. Turn off the power before cleaning.

Safety Hazard Warnings

  • It can be very hazardous to open the unit on account of high voltage inside the unit (high voltage in the detector is up to 1000 Volts). Be sure to refer all servicing to qualified/trained personnel.

Disposal Instructions

  • If/when disposing the unit: observe local and national regulations for the disposal of units containing a lithium battery.
  • Do not use household of municipal waste collection services for disposal of electrical and electronic equipment. EU countries require the use of separate recycling collection services.
WARNING:
  • External equipment intended for connection to signal input, signal output or other connectors, shall comply with relevant EN Standard (e.g., EN 61326-1:2013, EN 301 489-1 V1.9.2 and EN 301 489-17 V2.2.1).
  • If, in doubt, contact qualified technician or your local representative.
SAM 950 CONTAINS FCC ID : U8D-FB155BC. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operations.

Classification

  • EMC: Comply with EN 61326-1: 2013, EN 301 489-1 V1.9.2 and EN 301 489-17 V2.2.1.
  • FCC Class: Class B Equipment (FCC CFR 47 part 15 subpart B, Section 15.101).
  • Laser: Class II Equipment (Max. output: < 1mW, Wavelength: 650 - 660 nm).
  • Degree of protection against electric shock: Type BF Applied Part.
  • Degree of protection against the ingress of water: IP65.
  • Equipment not suitable for use in the presence of a flammable anesthetic mixture with air or with oxygen or nitrous oxide.

Labels

The label providing the system power requirements and serial number of the system is located at the back-side of the unit.

SAM 950 rear label showing serial number, power requirements, FCC ID, CE mark and FCC mark
Figure 2-1. Label

3System Description

System Components

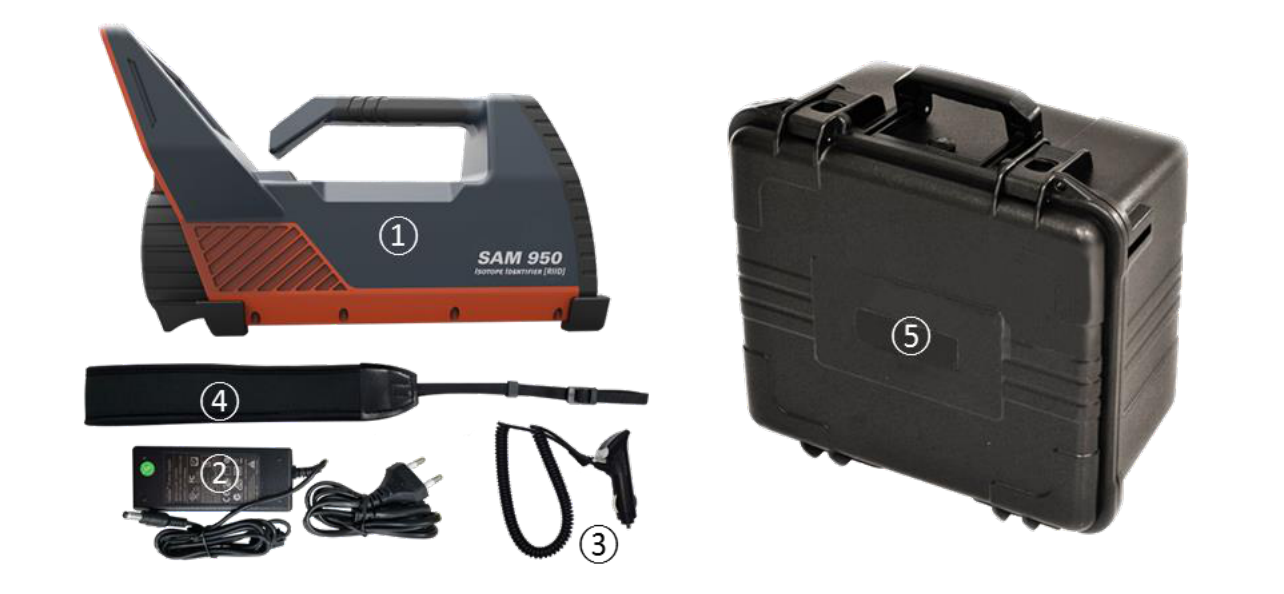

SAM 950 components, its accessories and carrying case are shown in figure 3.1.

SAM 950 detector unit, DC adaptor, vehicle charger, shoulder strap and carrying case
Figure 3.1. SAM 950 Components, its accessories and carrying case
  1. SAM 950 detector unit
  2. DC power adaptor for SAM 950 (DC 12V)
  3. Vehicle charging adaptor
  4. Shoulder strap
  5. Water and shock proof carrying case

Specifications

INPUT / OUTPUT
USBMicro USB 2.0, IP65
AC Adapter12v, 3A
CameraCMOS 13.0 MP
Speaker84dB(1W/0.5m), Water Proof
GPSBuilt-in GPS in Smartphone
Display5 inch touch screen
PHYSICAL
Dimensions (W x D x H)192 x 356 x 214 (mm)
Weight4.3kg (9.5lb) w/ 3x3 inch NaI(Tl), 3.2kg (7 lb) w/ 2x2 inch NaI(Tl), 3kg (6.6lb) w/ 1.5x1.5 inch LaBr3, CeBr3
ENVIRONMENTAL
Operating Temperature-15℃(5℉) ~ 50℃(122℉)
Relative Humidity10 to 80%, non condensing
PERFORMANCE
Energy Resolution (Gamma)NaI(Tl) 2x2, 3x3 inch :< 8%@662Kev, LaBr3 2x2 inch :< 3.5%@662Kev, CeBr3 2x2 inch :< 5%@662Kev
Energy Range (Gamma)20 Kev - 3 Mev
MCA channel10bit, 1024 channel
Dose rate range0 - 10 mR/h (NaI), 10 mR/h - 10 R/h (GM)
StabilizationAutomatic real-time stabilization using K-40
Nuclide IdentificationAccording to ANSI N42.34, isotope/category/confidence report
Battery>8hours, Lithium Ion
DETECTORS
Gamma DetectorNaI(Tl) - 2x2, 3x3 inch, CeBr3 - 1.5x1.5, 2x2 inch, LaBr3 - 1.5x1.5, 2x2 inch
Gamma (High Dose Rate)Gain Compensation Geiger-Muller detector
Neutron (Optional)Solid-state Neutron detector : 4cm2 active area, 20% thermal neutron eff. Gamma rejection: 1:107
SOFTWARE
Reach-back FeatureANSI N42.42 or CSV event data via a Smartphone (Wi-Fi)
Application SWAndroid based application SW for Smartphone, Windows based application SW for Command Center

Detectable Isotope List

CategoryIsotopes
NORMK-40, Ra-226 and daughters, Th-232 and daughters
MedicalF-18, Cr-51, Ga-67, Mo-99, Tc-99m, Pd-103, In-111, I-123, I-125, I-131, Xe-133, Sm-153, Tl-201
IndustrialNa-22, Co-57, Co-60, Se-75, Rh-106, I-132, I-133, Ba-133, Cs-134, Cs-137, Eu-152, Ir-192, Am-241
SNMU-233, U-235, U-238, Pu-239, Pu-241, Np-237

Power and Battery Charge Guide

Figure 1.4 shows the location of the power switch and the DC connector for charging the internal battery. The LED turns red when the power is ON.

The battery charger (figure 3.2 below) has a built-in overcharging protection circuit. Once the battery is fully charged the LED turns green and auto charging is terminated.

The power system of PDA is directly connected and controlled by the SAM 950's internal battery. Therefore, PDA's operation time is same as the SAM 950 unit and its On/Off is synchronized with the SAM 950 unit.

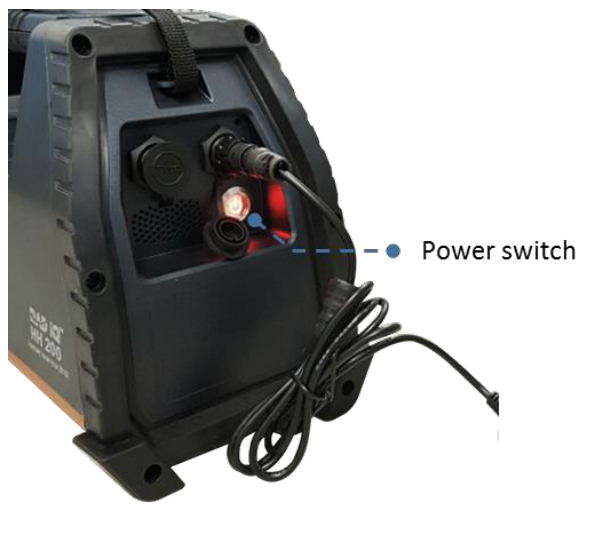

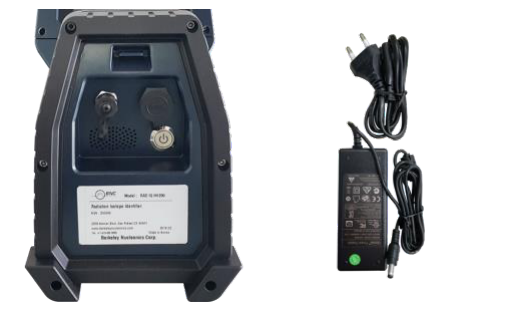

SAM 950 rear panel power switch and DC battery charger
Figure 3.2. Power switch and battery charger

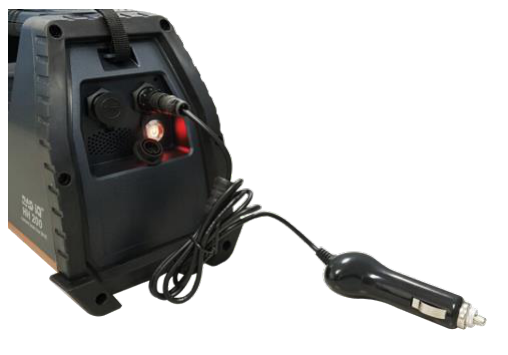

SAM 950 also can be charged by vehicle electric system with standard 12 V DC. Figure 3.3 shows a vehicle charging unit.

SAM 950 vehicle charging adaptor with 12V plug
Figure 3.3. Vehicle charger

The SAM 950 is equipped with a Lithium Ion battery. The battery has a built-in power protection circuit (PCM) which prevents the battery from both overcharging and over-discharging.

Hazard: Internal high voltage (up to 1,000 volts)! Do not disassemble the unit. Servicing of the unit should be performed by BNC qualified personnel.

Camera and Flash Light

SAM 950 is equipped with built-in camera and a LED flash light for recording media information and operation in dark environment.

  • Push and hold (2 seconds) the 'up-arrow' button with a lamp icon (refer to the figure 3.4), the LED flash light is turned ON. With same manner, the flash light is turned OFF.

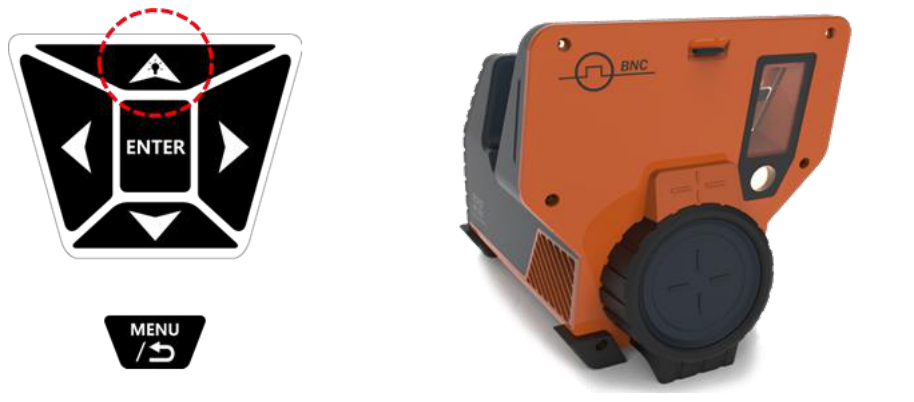

Up-arrow lamp button glyph and SAM 950 side view showing camera and flash light
Figure 3.4. Camera and flash light

Tripod Assemble Guide

SAM 950 can be mounted on a tripod. A tripod adaptor hole is located on the bottom of SAM 950 as shown in figure 3.5.

Standard tripod screw shoe size is 3/8-16. Front and back hole are designed for 3x3 inch and 2x2 inch (1.5x1.5 inch) detectors, respectively by considering weight balance.

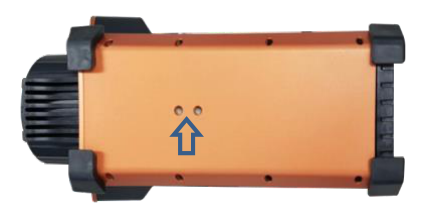

SAM 950 bottom view showing front and back tripod adaptor holes

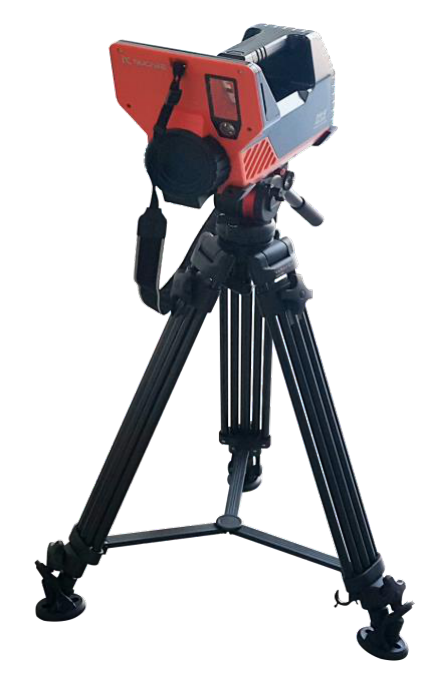

SAM 950 mounted on a tripod

Figure 3.5. Tripod adaptor holes and SAM 950 mounted on a tripod.

Shoulder Strap Assemble Guide

To minimize fatigue of an operator, SAM 950 can be wearing on shoulder using a shoulder strap.

  • There are two strap hooks at front and back of the SAM 950 body. Assemble example is shown in figure 3.6.

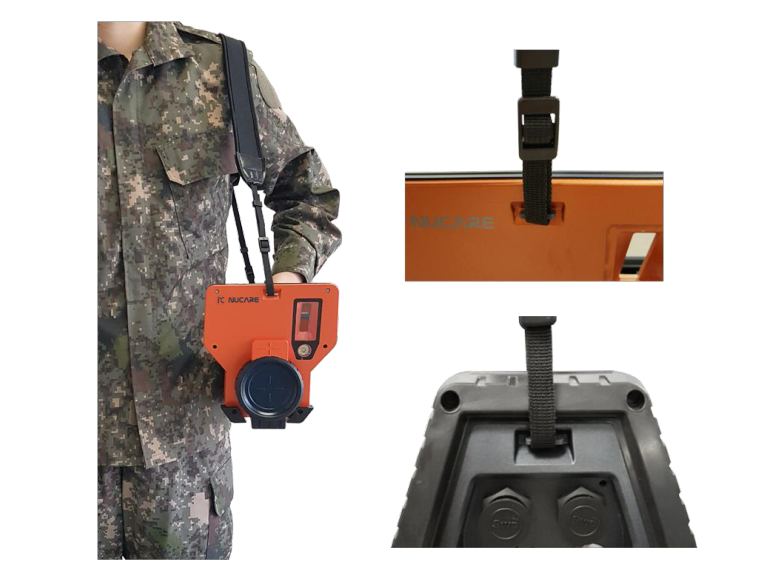

Shoulder strap assemble examples on the SAM 950 body
Figure 3.6. Shoulder strap assemble examples

SAM 950 Software

SAM 950 software consists of two programs.

  1. "SAM III PeakAbout III": application software for the PDA
  2. "SAM III PeakID": command center software for a PC running the Windows Operating system.

The PDA application software is preinstalled in the imbedded PDA. The PDA application SW is used in the configuration and calibration procedures as well as for the real-time measurement and analysis of spectral data acquired by the SAM 950.

The command center software supports event-log file management, integration of data from multiple units, and data backup. For detailed installation instructions please refer to the appropriate sections in this manual.

Command center software is compatible with Windows based PCs. The OS must be Windows 7 or higher.

Prerequisites for the Operation of the SAM 950

Charge the SAM 950 battery:

  1. Turn off the system (recommended for fastest time to full charge).
  2. Plug-in the DC adaptor to the DC connector.
  3. The LED on the DC power adaptor changes to green when the unit is charging.
  4. Full charge may take up to 6 hours.
  5. The LED on the DC power adaptor OFF when the unit is fully charged.
  6. The charging cable is securely locked to the female connector on the unit. Disengage the spring loaded connector by firmly holding the male connector and gently twisting ¼ turn, then pulling straight back on the connector.

For detailed setup, configuration, background measurement and calibration procedures please refer to the appropriate sections in this manual.

4PDA Application Software

Introduction

The built-in PDA communicates with the SAM 950 unit through wired USB network protocol. Its main function is to provide dose (and count) rate data for the gamma-ray. In addition it provides the operator with a convenient graphic status display and access to the analytical tools. It also manages the configuration and calibration of the paired SAM 950 unit.

The SW is Android (Google) OS based and compatible with any Android based PDA or Smart Phone. The standard unit imbedded with the SAM 950 is the Samsung Galaxy J5 or equivalent. In addition to touch screen in handling the imbedded smartphone, it can be also controlled by hardware button keys on the handle of the SAM 950 unit.

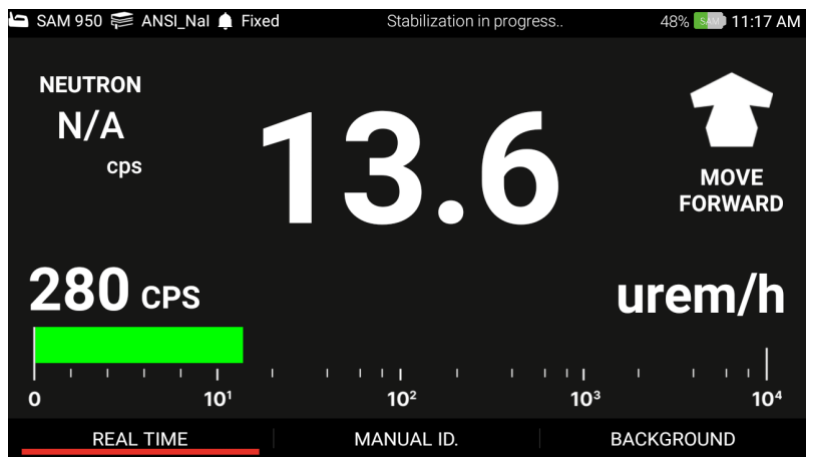

SAM 950 PDA main screen showing gamma dose rate and count rate
Figure 4.1. Main screen

Function Buttons

The function buttons of SAM 950 on its handle provides convenient control and operation of the unit in addition to the touch screen capability. A user can operate the buttons with wearing a glove. The basic function of each button is summarized in table 4.1.

The button key provide different functions based on menu hierarchy status. Details are described in each operation mode sessions.

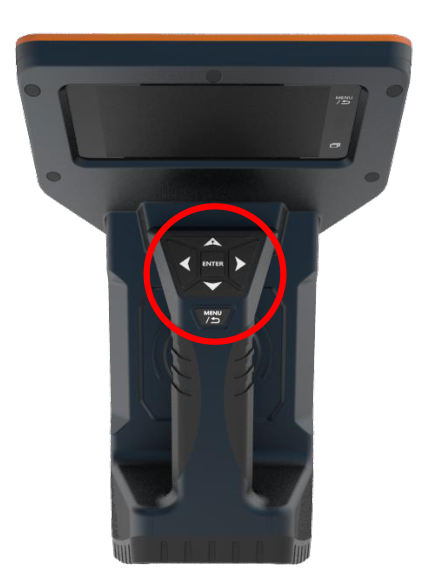

SAM 950 handle with the function button cluster highlighted
Figure 4.2. Function buttons on the handle.
ButtonActionFunction
Left / RightMove
Up / DownMove
Enter
EnterClickSelection / execute
EnterClick & Hold (2 sec)Manual Source ID Start
Back / Menu
Back / MenuClickBack to previous menu
Back / MenuClick & hold (2 sec.)Return to main Menu
Up-arrow (lamp)Click & hold (2 sec.)Light on / off

Table 4.1. Basic function of function key buttons

Software Upgrade Guide

SW update notification message is automatically sent and displayed when the latest SW version is available and the currently installed version is lower than the latest one. The SAM 950 unit has to be connected WiFi network to download/upgrade to the latest SW.

Following is software upgrade procedure. Refer to the figure 4.3 below.

  1. SW upgrade notification message is appeared on the low bottom of the main screen as shown in figure 4.3 only if the currently installed version is lower than the latest one.
  2. To upgrade, go to the Device Information by following path: Pop up menu (by press and hold menu) → Setup → Device Information.
  3. Touch and select 'Download latest SAM III SW'.
  4. Type in 'BSN' number and select 'PeakAbout III' PDA application SW. BSN (BNC Serial Number) is located on the label.
  5. Installation screen is opened as shown in figure 4.4. Follow the 4 steps below.

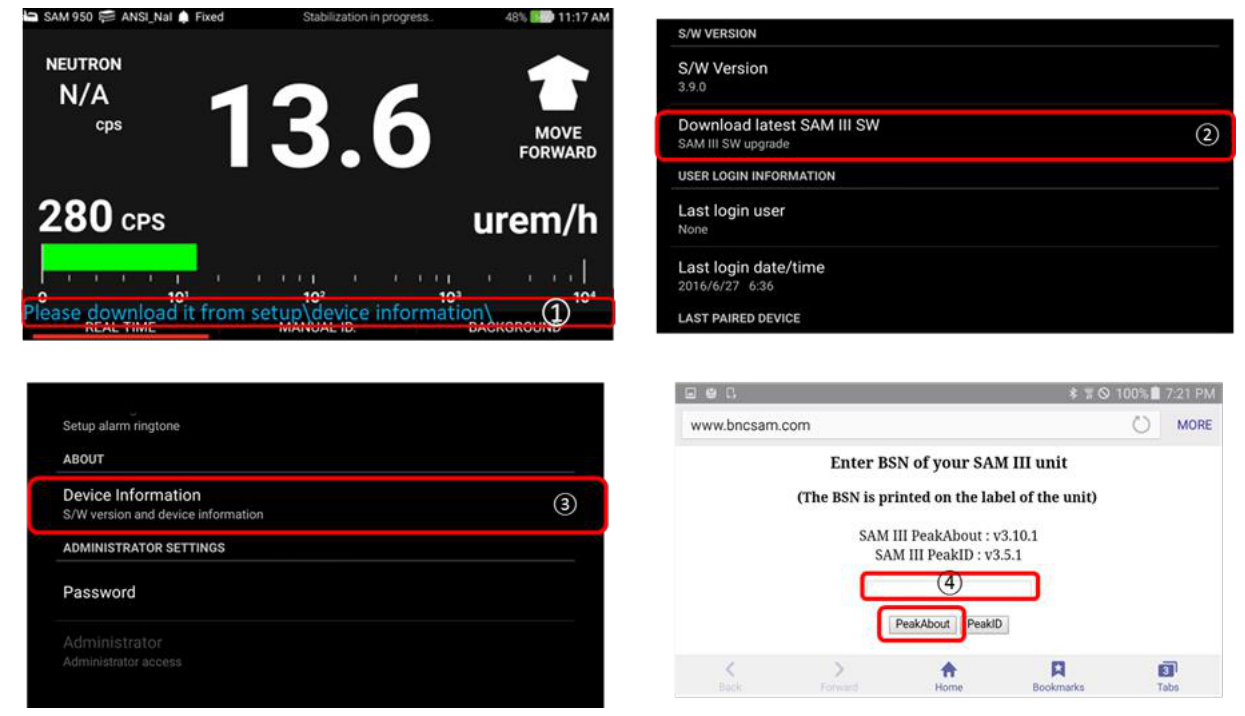

SAM III SW upgrade procedure: main screen notification, Device Information, BSN entry
Figure 4.3. SAM III SW upgrade procedure

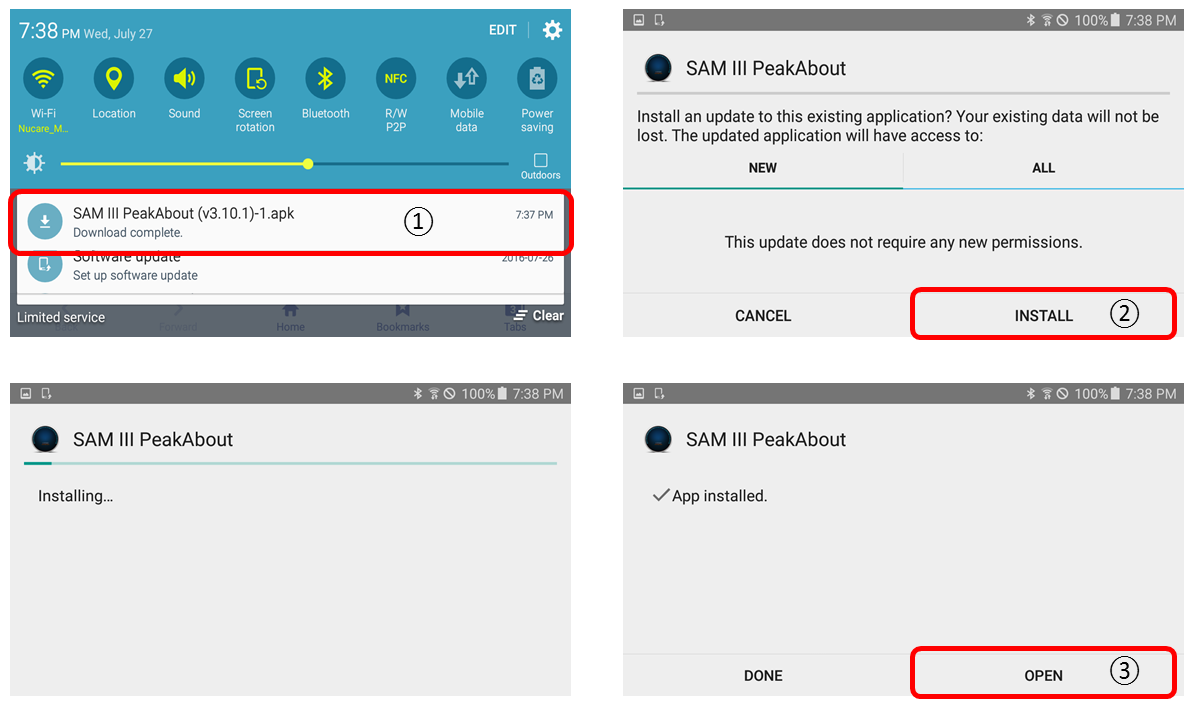

SAM III SW upgrade installation four-step screens
Figure 4.4. SAM III SW upgrade procedure

Main and Sub-Menu Structure

Measurement status display, configuration, event log management, reach-back service, media file generation, spectrum analysis, background measurement and calibration are all managed by the PDA and its application software.

Intuitive, simple and hierarchical structure design of the new PeakAbout III software make the operation of SAM 950 easy and flawless. In addition, function buttons on handle provides extra convenience in handling the unit with wearing gloves.

Figure 4.5 and 4.6 graphically summarizes hierarchical structure of menus and describes how to use touch screen or function buttons in order to surf between menus. Figure 4.5 shows menu structure for event generation, manual ID and media file attachment procedure. And Figure 4.6 covers structure for setup and event log management related tasks.

Menu structure of manual ID and media file attachment

  • Main 'Gauge' ① and 'Finder' ② screen can be toggled by pressing up/down function button or swiping up/down with a finger on the touch screen.

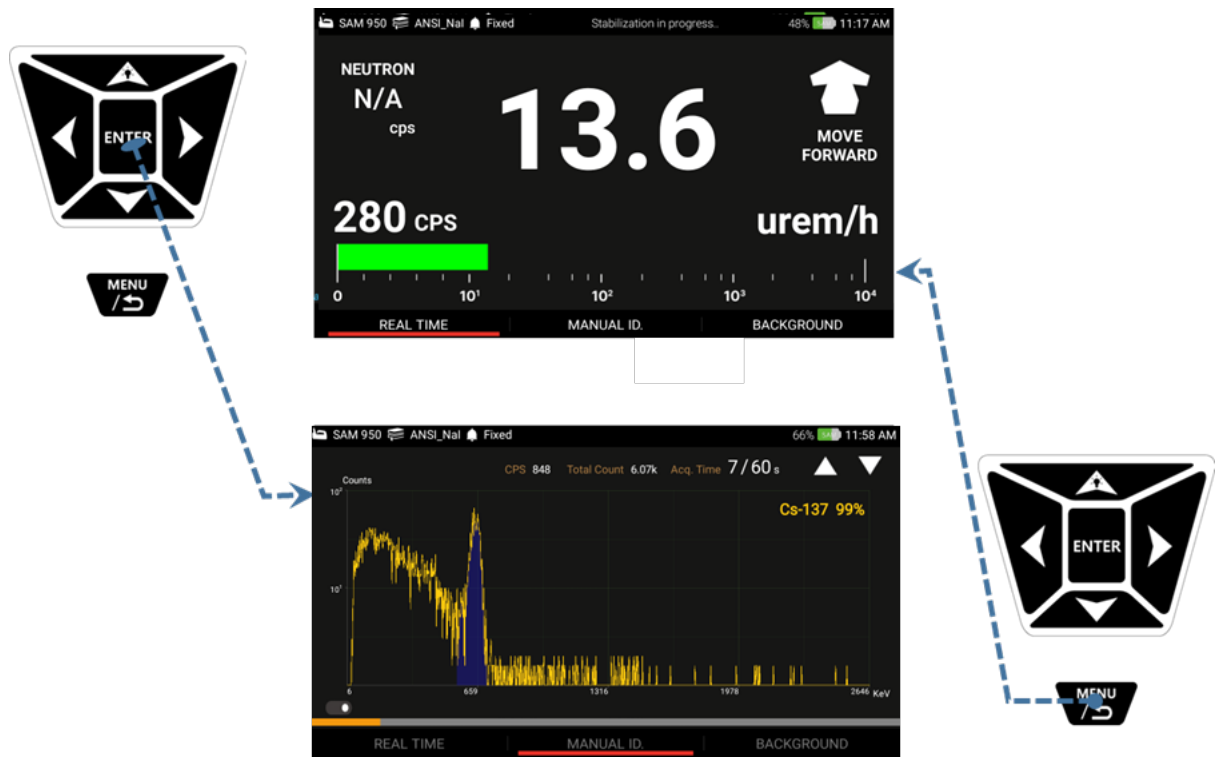

  • 'Manual ID' screen ③ is accessed by press and hold Enter key or touch 'Manual ID' menu on the screen from the 'Gauge' menu any time.

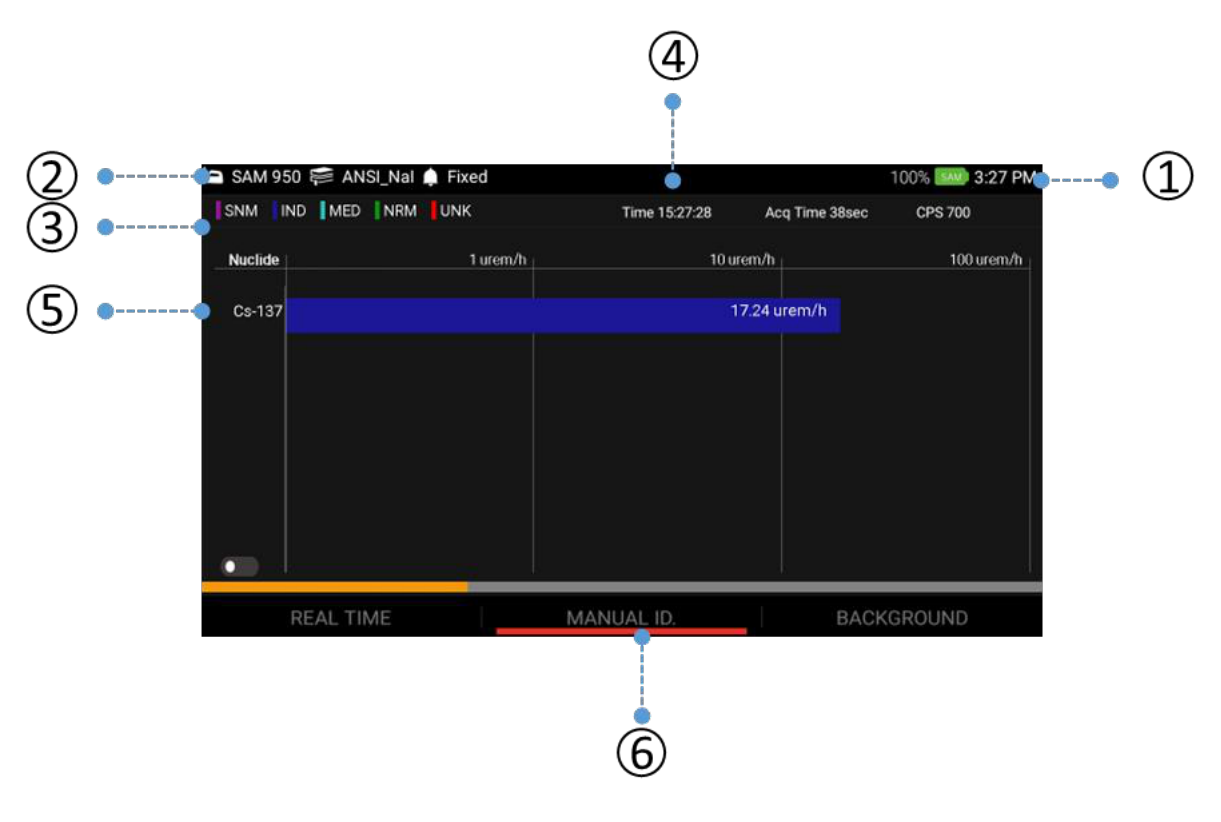

  • 'Spectrum' ③ and 'Classification' ④ screen can be toggled by pressing left/right function button or swiping left/right with a finger on the touch screen.
  • Stop ID and return to main screen by press Back button from either 'Spectrum' ③ or 'Classification' ④ screen. In this case, the event is deleted.
  • When manual ID is completed, 'Event summary' ⑤ screen is automatically popped-up. In this screen, user can send the event to Reach-back ⑥ and/or RadResponder server ⑦ or attach media files such as text/audio comment ⑨, photo(s) and video(s) ⑧.
  • Pressing Back button from the 'Event summary' ⑤ screen saves event data and returns to main 'Gauge' screen ①.

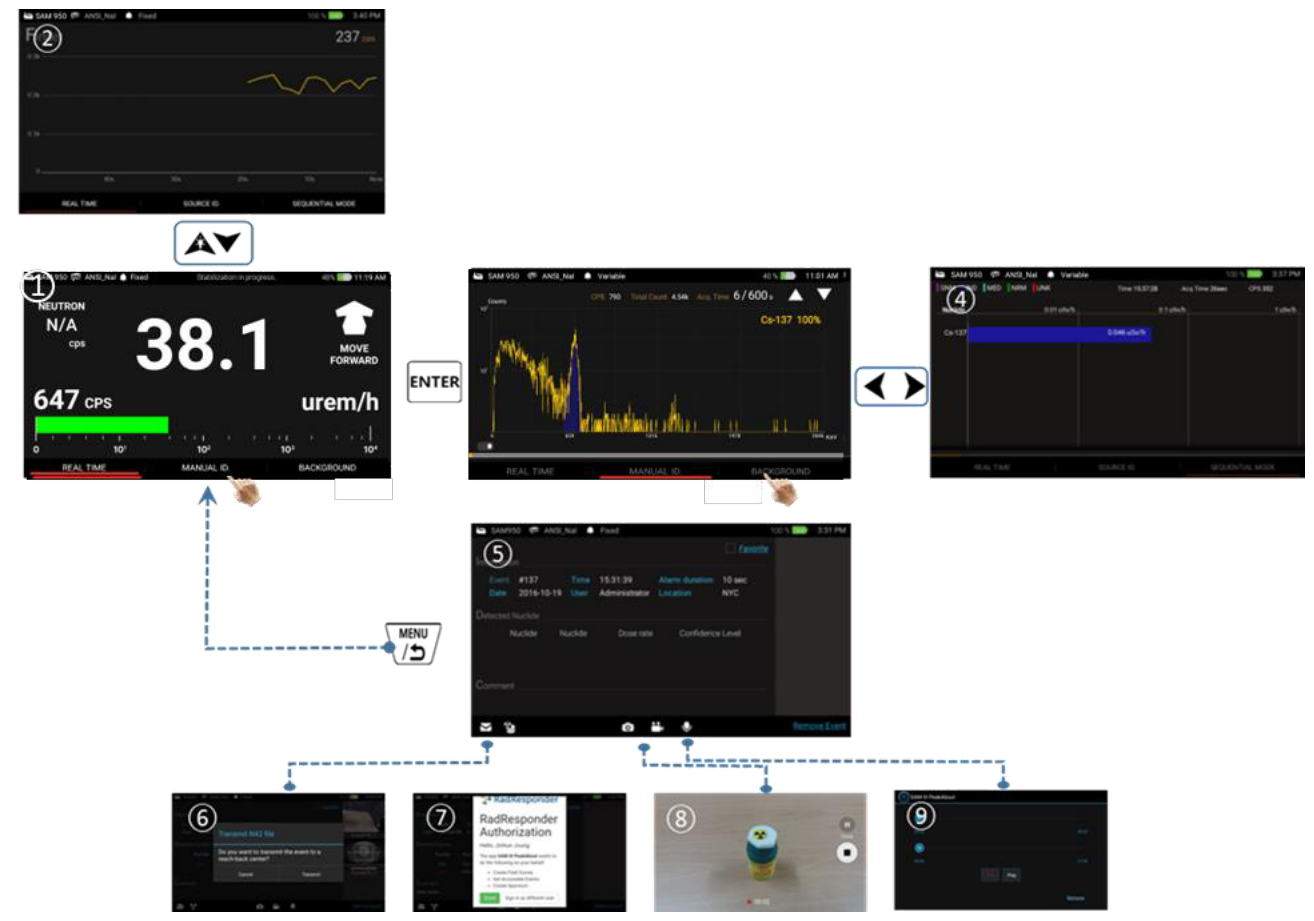

Hierarchical menu structure for manual ID and media file generation
Figure 4.5. Menu structure of manual ID and media file generation.
#ScreenDescription
1Main GUI screenDose rate, Count rate, System status, menu and battery indicator
2Finder screenDisplay real-time radiation activity by time
3Manual ID screenManual ID screen with spectrum, ID result display.
4ID classification screenID analysis and classification, dose rate information
5ID summary screenManual ID condition, ID summary, media management
6Reach-back screenReach back service screen
7RadResponder screenRadResponder service screen
8Photo/videoAttach photo(s) and video(s) to the event
9Voice msg.Record voice comment to the event

Menu structure of setup and event log management

The setup and event log management features are intentionally hide from the main tasks such as 'Manual ID' and 'Media file generation' explained above in order to avoid busy traffic and complications in operation. The setup and event log management can be accessed by press menu button from the main screen. The pop-up menu is appeared and allows user to jump to the setup and event log screen.

  • 'Setup' ④ and 'Event log' ③ screen is accessible by selecting appropriate menu from the pop-up menu on the main screen.
  • 'Event log' screen ③ allows several tasks such as event analysis, Reach back service, RadResponder ⑤ service, and etc.
  • 'Setup' ④ allows user to configure various parameters such as calibration ⑥, sequential mode programming, alarm threshold ⑦, ringtone selection ⑧, account setup and more.

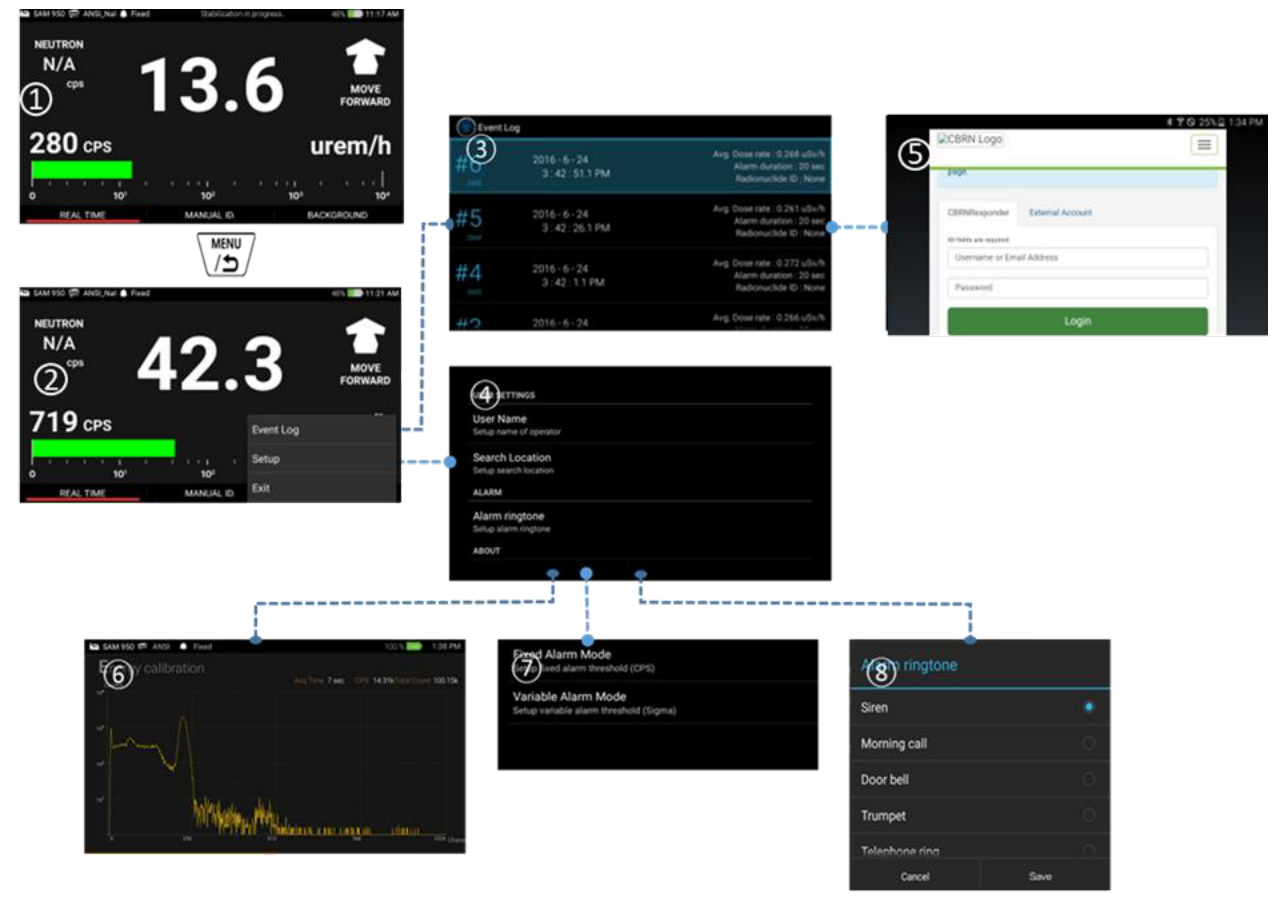

Hierarchical menu structure for setup and event log management
Figure 4.6. Menu structure of setup and event log management.

Primary GUI

Primary GUI is the main home screen that primarily contains Gamma and Neutron activity information. In addition, library, alarm status, and battery indicator information are also displayed. The primary GUI is the gate way to major takes such as 'Real Time' activity analysis, 'Manual ID', 'Background' and optional 'Sequential mode' access. Those menus can be accessed by touching corresponding menu tab located on the bottom of the primary GUI as shown in figure 4.7 or pressing function buttons on the handle.

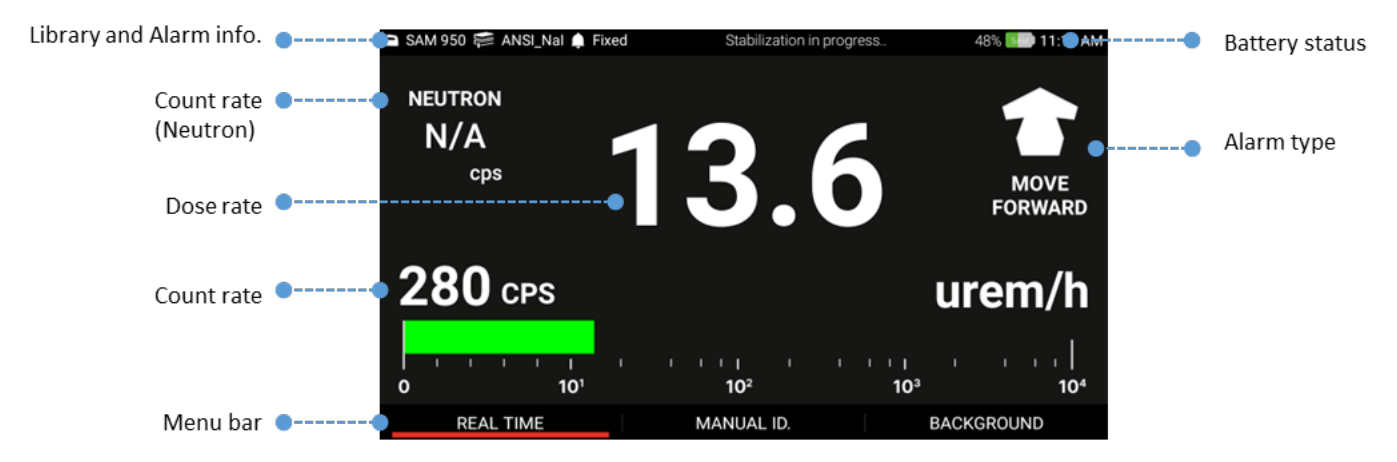

The primary GUI and its components are shown in figure 4.7. Details are provided in the following sections.

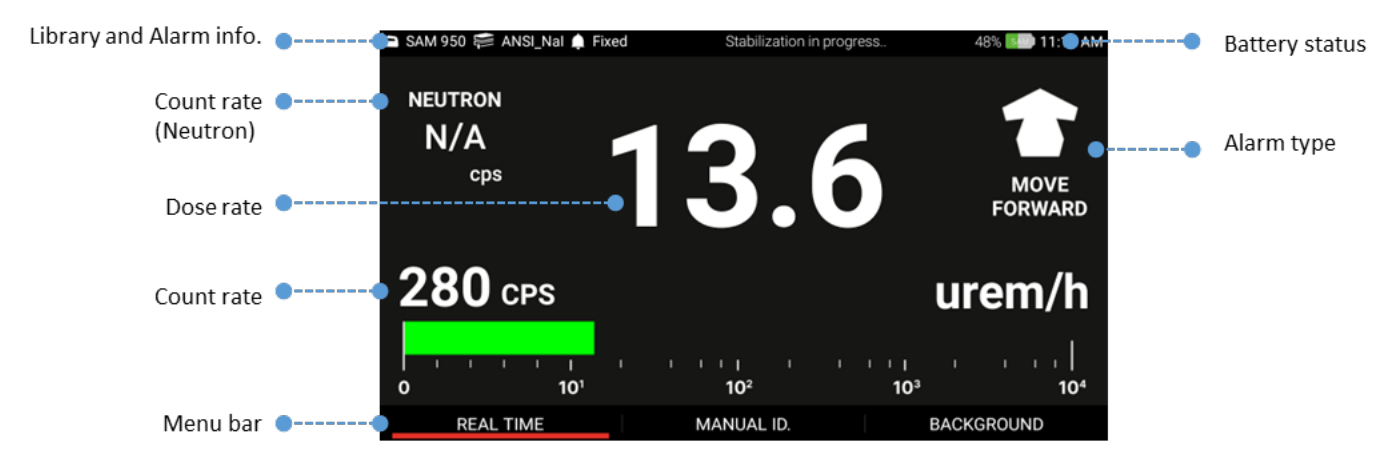

Primary GUI with labelled library, alarm, battery, dose rate, count rate and menu bar
Figure 4.7. Primary GUI description

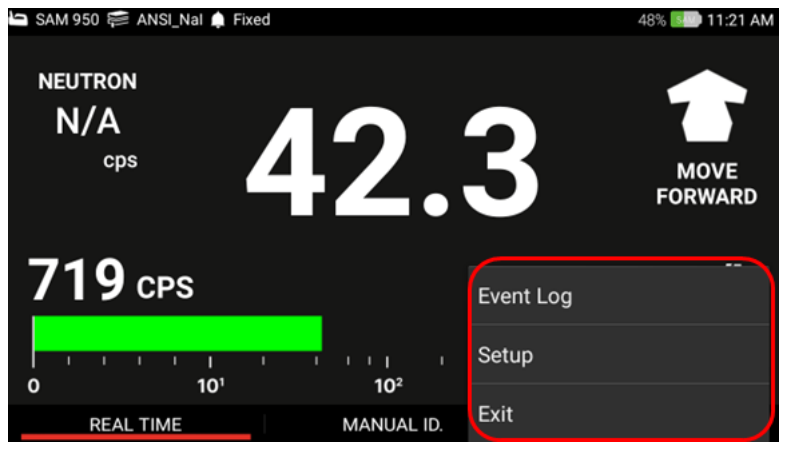

To access 'Setup' and 'Event log' list, press and hold the menu button on the handle or touch icon on the screen. The pop-up menu is appeared as shown in figure 4.8.

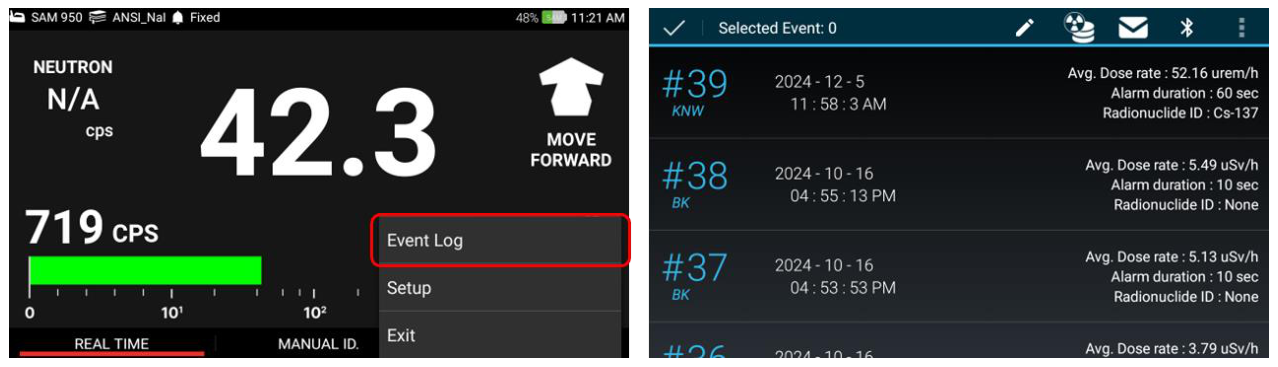

Pop-up menu showing Event Log, Setup and Exit on the main screen
Figure 4.8. Pop-up menu for setup and event log management

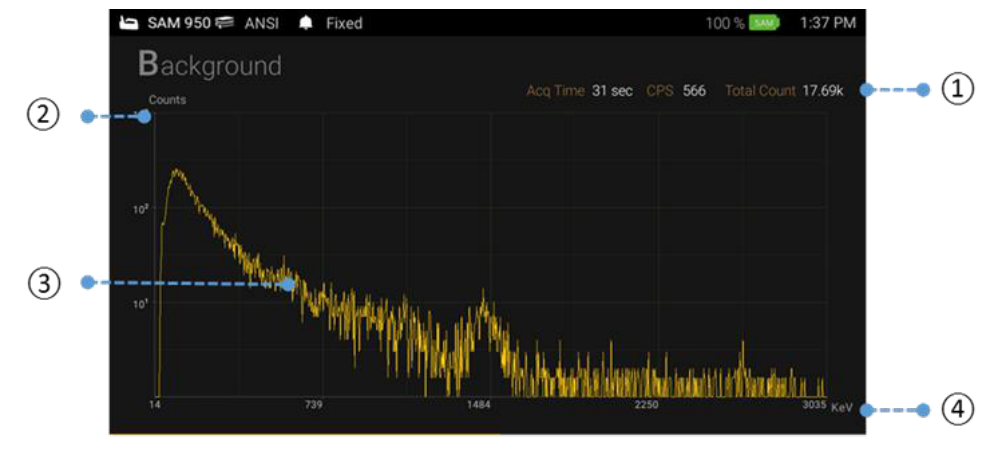

Calibration and Background Measurement

Background / Calibration menu is accessed by touching the setup button (to access the pop-up menu, click and hold the menu button on the handle or touch icon on the PDA screen). Background measurement is easily accessed by clicking the Background menu on the primary GUI screen, as shown in the figure.

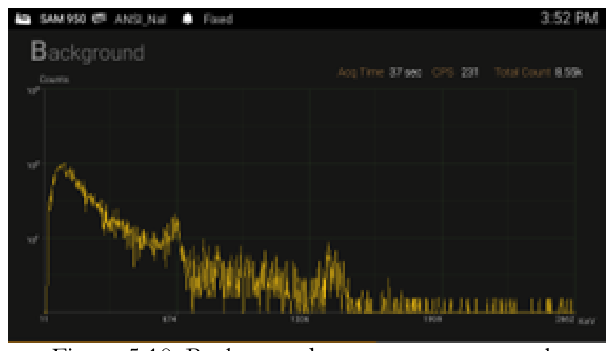

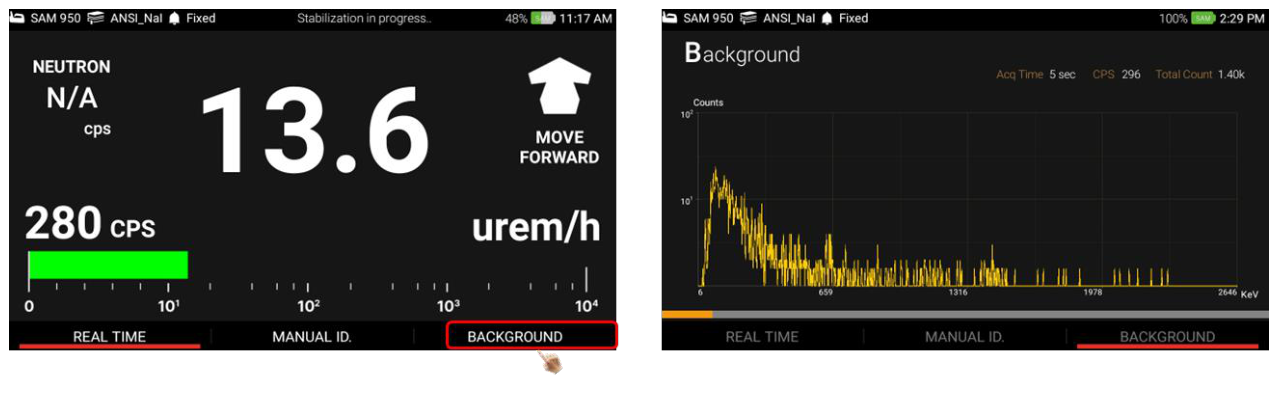

Measured background spectrum on the main screen
Figure 4.9. Measured Background on the main screen

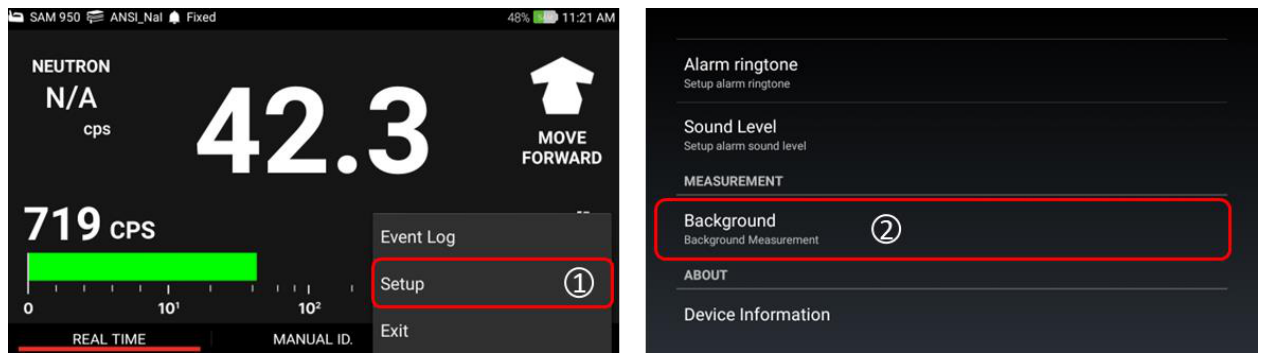

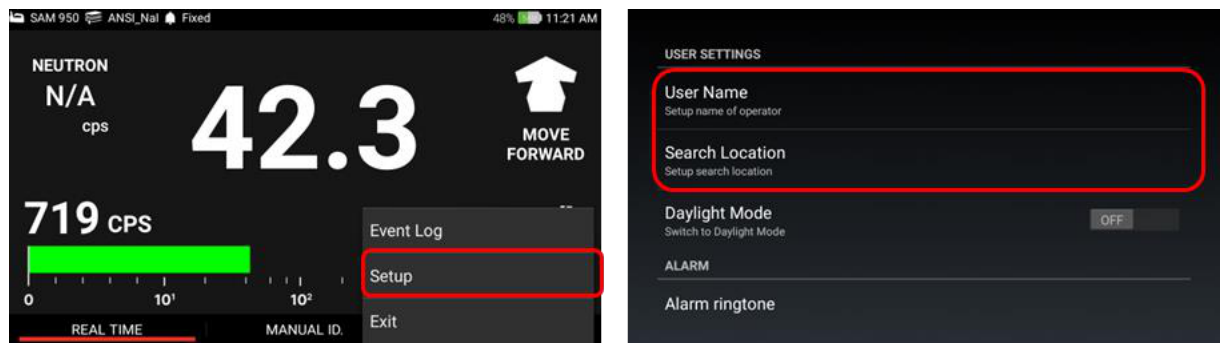

Background measurement can also be performed in the Setup menu by following steps 1 and 2.

  1. Select "Setup" either by touch on the screen or move curse using the key button on the handle.
  2. Select the desired setup procedure, i.e., Background.

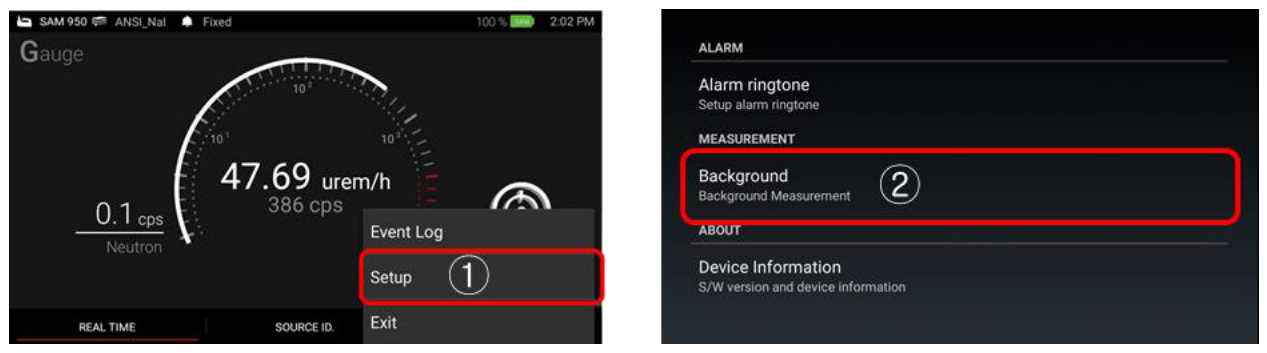

Accessing the Background menu from Setup
Figure 4.10. Accessing to Background menu

Calibration measurement can also be performed in the Setup menu by following steps 1 to 4.

  1. Select "Setup" either by touch on the screen or move curse using the key button on the handle.
  2. Log in as User or Administrator (password protected).
  3. Select the desired setup procedure, i.e., Energy Calibration.
  4. Calibration: place a calibration source (Cs-137) in front of the detector (minimum 3 inches away from the detector surface) and start calibration. Required counts to terminate the calibration procedure is defined in 'Setup' menu.

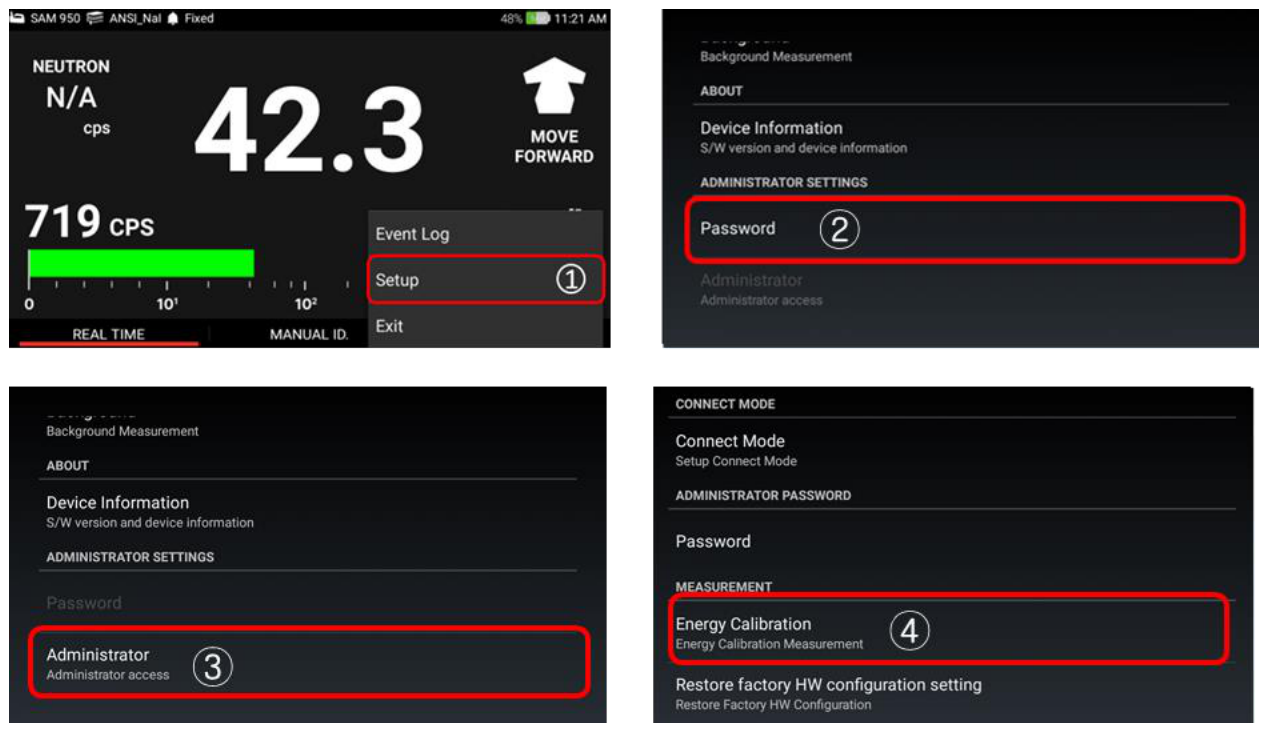

Accessing the Energy Calibration menu
Figure 4.11. Accessing to Energy Calibration menu

The calibration information is saved in the memory of SAM 950. And the new calibration information can be replaced by click "Save" when calibration is completed as shown in 4.12. By selecting "Cancel" the new calibration is NOT replaced to the new one.

Depend on HW and firmware version, this feature may or may not being supported.

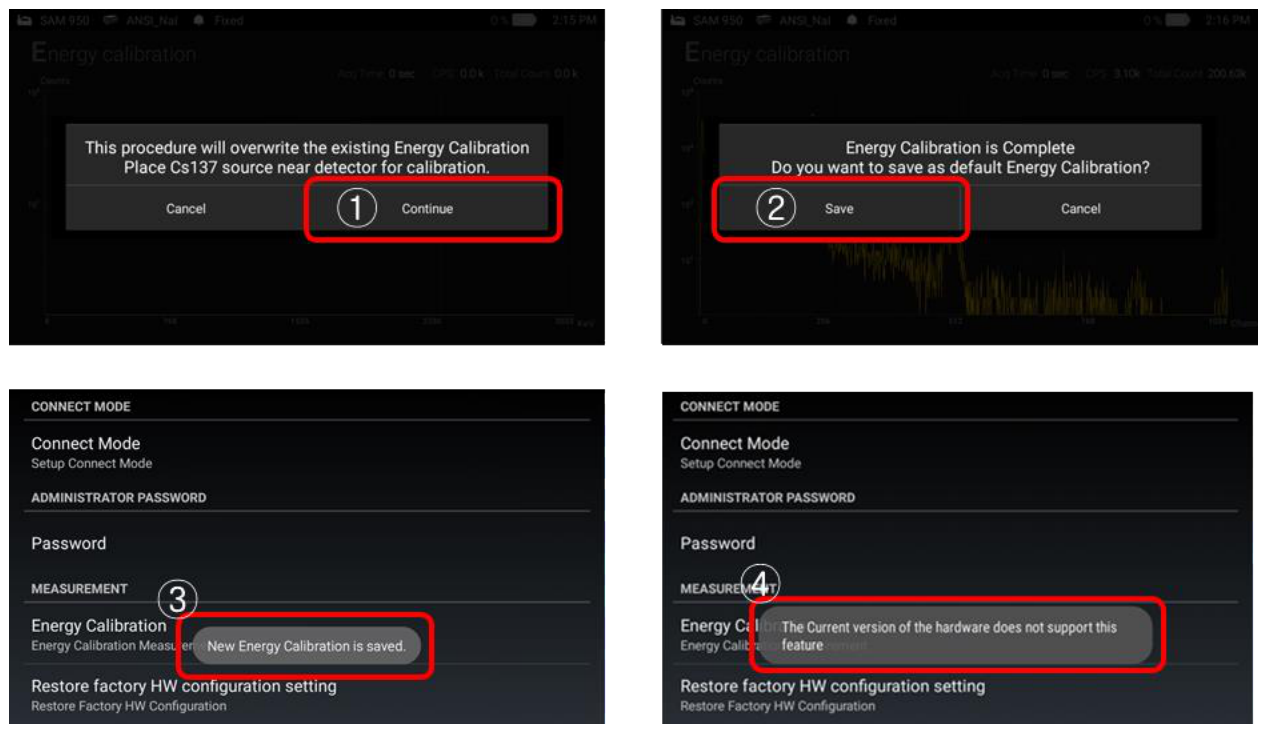

Replacing manual calibration procedure dialogs
Figure 4.12. Replacing manual calibration procedure

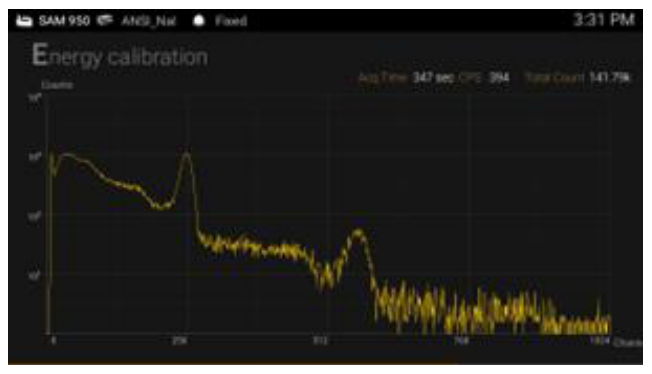

The Energy Calibration screen is shown in the figure below.

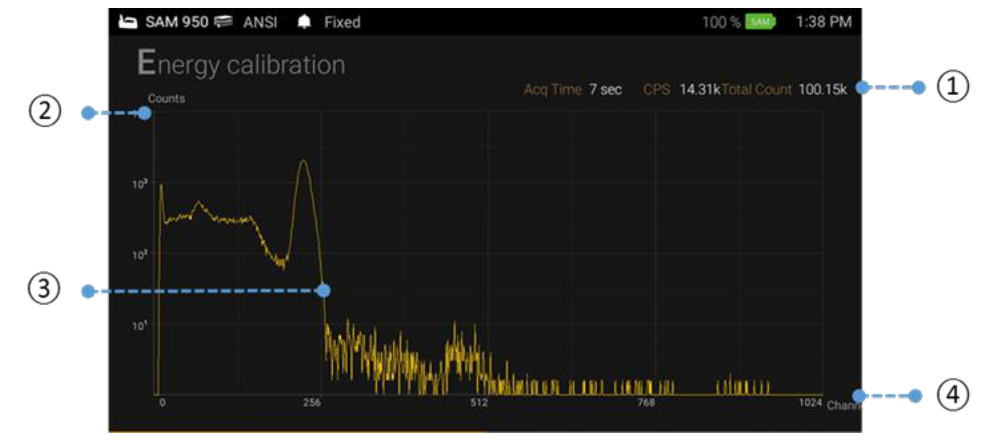

Energy calibration screen with spectrum and acquisition information
Figure 4.13. Energy calibration screen
Background and Calibration screen with labelled information, counts, spectrum and channel/energy axes
Figure 4.14. Background & Calibration screen information
Background measurement is important for accurate nuclide identification. Ensure that no radiation sources are in the vicinity of the SAM 950 during the background measurement.

In calibration mode, place a Cs-137 source front the SAM 950. When the slected number of counts have been acquired, the screen will display "Success". Remove the Cs-137 source when calibration is completed. The x-axis unit change from channel number to energy in keV.

#ItemDescription
1InformationDate/Time, Acq. Time and count rate information
2CountsY-axis unit display (counts in self-adjusting & logarithmic scale)
3SpectrumReal time spectrum display
4Ch/EnergyX-axis unit display (channel or energy in linear scale)

Isotope Identification

The SAM 950 can perform isotope identification by manually despite of alarm status. There are three ways to execute 'Manual ID': 1. Press and hold the 'Enter' key for about 2 seconds, 2. Touch the 'Source ID' menu on the main screen, or 3. Scroll and locate the red bar on the 'manual ID' menu by using left/right button on the handle and press 'Enter' key. Figure 4.15 shows graphical illustration of ways to execute 'Manual ID'.

Three ways to execute Manual ID shown on the main and ID screens with button glyphs
Figure 4.15. Executing 'Manual ID'

To do programmed and automatic isotope identification, user can select 'Sequential mode' measurement. The sequential mode can be programmable in 'Setup' menu. The isotope identification result, i.e., 'event log' is automatically saved when the ID is completed. However, unwanted event can be discarded by stopping ID process by pressing 'Back' button anytime during manual ID.

Manual ID screen

The primary screen is switched to 'Manual ID' screen as shown in figure 4.16 when 'Manual ID' is executed. Spectrum is updated every 1 second and photo-peak area(s) is color coded with candidate isotope information. The duration of 'Manual ID' is configured in setup menu. The default duration is 30 sec. with 10 sec. increment. However, user can configure the default time and increment by his own preference. Duration can be increased/decreased by increment time using up/down button key on the handle.

Manual ID provides two screens, i.e., spectrum display and analysis screens. They are toggled by swift the screen with a finger (left or right) or left/right button key on the handle. Click the Back Button will stop 'manual ID' and switch to the main screen. In this case, the event data is discarded.

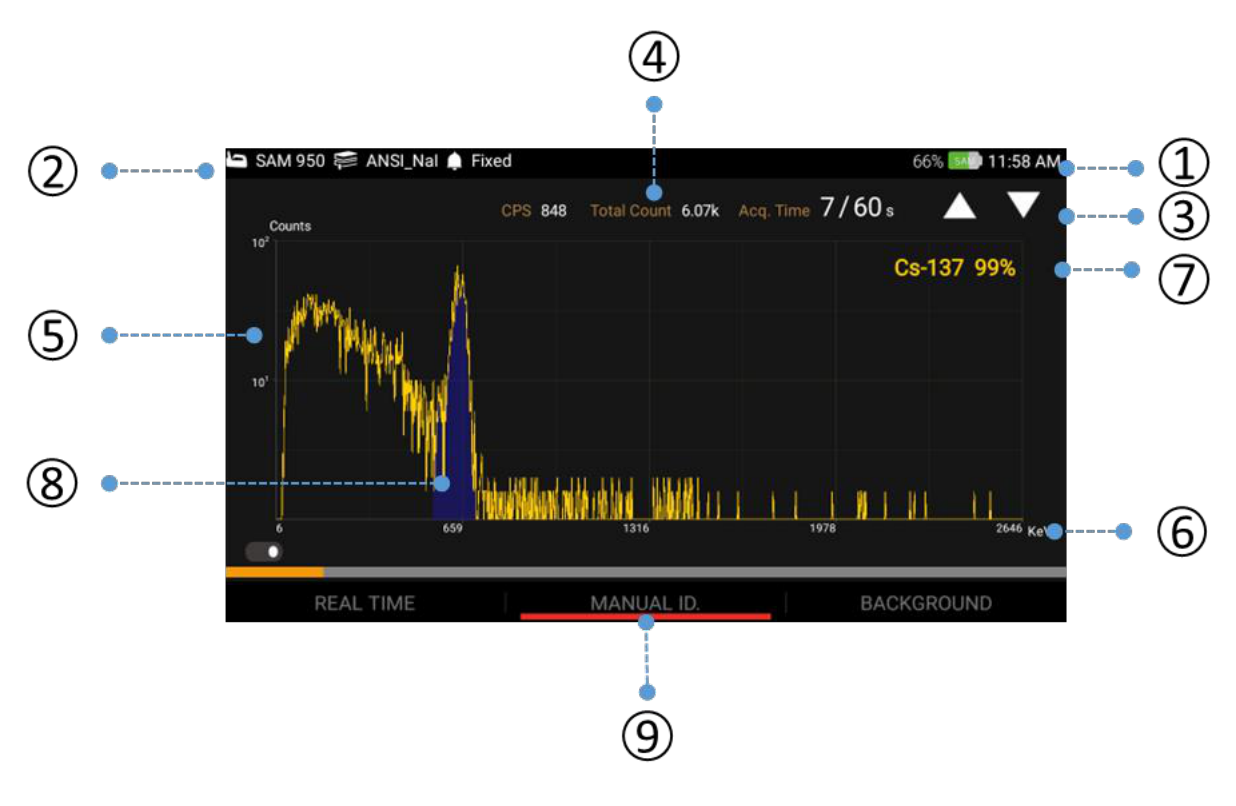

Manual ID screen with labelled battery, library/alarm, ID duration, counts, spectrum and isotope ID
Figure 4.16. Manual ID screen
#ItemDescription
1Battery StatusBattery status of SAM 950 unit and time information
2Library and AlarmLibrary and alarm type information
3ID durationID duration and progress. Up/down arrow: increment/decrement ID duration
4Count info.Total count and CPS information
5CountsY-axis unit display (counts in self adjusting and logarithm scale)
6Ch/EnergyX-axis unit display (channel or energy in linear scale)
7Isotope IDIsotope ID information
8Photo PeakPhoto-Peak with color cording
9Toggle screenToggle screen between spectrum display and ID analysis

Isotope classification screen

The Isotope Classification screen is shown in figure 4.17. To access the screen, touch tab menu along the bottom of the Identification screen as shown in figure 4.16, and swipe left or right or press left/right function button on the handle.

In this mode, the real-time Dose Rate measurement of identified nuclides is graphically displayed in a horizontally oriented bar graph. If multiple isotopes are identified, SAM III PeakAbout II will place the most significant isotope (highest contributing dose rate) as the top-most bar, and the remaining isotopes in descending order to the least significant isotope (lowest contributing dose rate). Each bar will be named and displayed with the corresponding classification color as shown in figure 4.17.

Isotope classification screen with dose-rate bar graph per identified nuclide
Figure 4.17. Isotope identification screen
#ItemDescription
1Battery StatusBattery status of SAM 950 unit and time information
2Library and AlarmLibrary and alarm type information
3ClassificationClassification of individual isotope(s) identified. Class of identified isotope:
  • SNM: Special Nuclear Material – Magenta
  • IND: Industrial Isotopes – Blue
  • MED: Medical Isotopes – Cyan
  • NRM: Naturally Occurring Radioactive Material – Green
  • UNK: Unknown Material – Red
4Time/Duration/CPSTime of ID completion, ID duration and count rate (CPS) information
5Dose rateDose rate of classified isotope (color coded, logarithmic bar graph)
6Swipe BarSwipe left/right on the bar to switch between identification/classification

Function button summary in 'Manual ID' mode

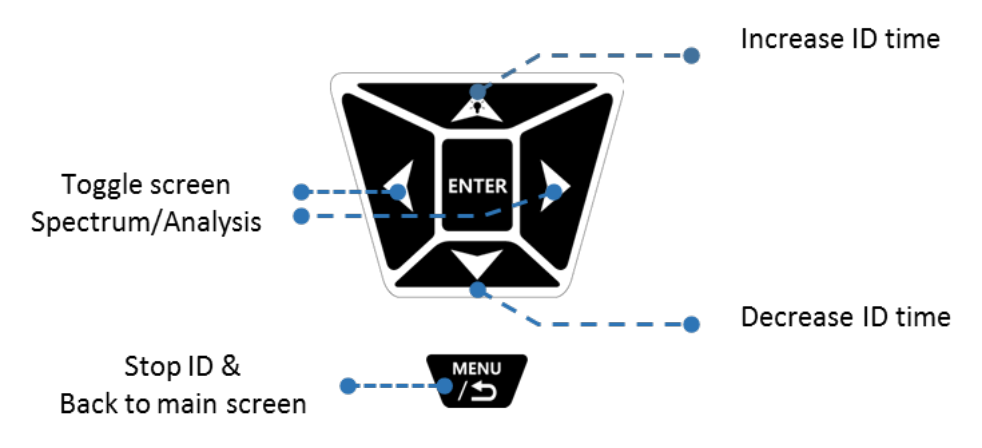

Function button summary in Manual ID mode: increase/decrease ID time, toggle screen, stop ID
Figure 4.18. Function button summary in 'Manual ID' mode

Manual ID Result

'Manual ID' result screen is automatically appeared as soon as the ID is completed as shown in figure 4.19. In this screen, the user is allowed to add voice and/or text memo, photo(s) and video(s). The media file(s) are attached into the event log file and saved in the database.

In addition, the event can be immediately send to a desired reach-back and/or third party server such as 'RadResponder'. Refer to the session below for setting up 'Reach-back' and 'RadResponder' account(s). In order to have 'Reach-back' or 'Third party server' service, the unit has to be in WiFi network connection.

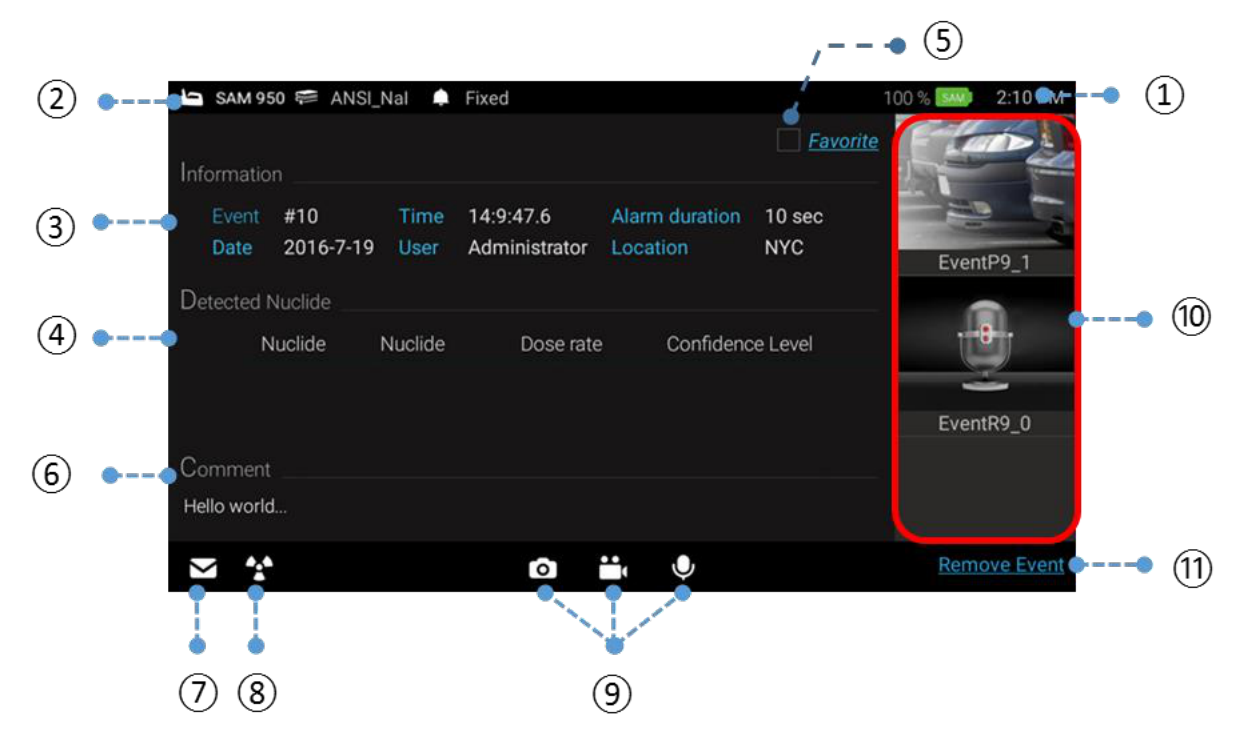

Source Identification Result screen with event info, detected nuclide, favorite, comment, reach-back, media and remove controls
Figure 4.19. Source Identification Result Screen
#ItemDescription
1Battery StatusBattery status of SAM 950 unit and time information
2Library and AlarmLibrary and alarm type information
3InformationGeneral information of event. Event: event serial number; Date/Time: date and time of event; Alarm duration: manual ID duration; User: user information; Location: event location information
4Detected NuclideIsotope(s) identified
5Favorite'Favorite' tag is attached into event file when the box is checked
6CommentType in text comment about the event
7Reach-BackSend event file as CVD file to a reach-back center
8RadResponderSend event information to 'RadResponder' server
9Media RecordTake photo(s), Video(s) and voice comment. And attached to the event log file
10Media ListPreview media files attached and open for review
11Remove EventRemove Event

Function button summary in 'Manual ID Result' mode

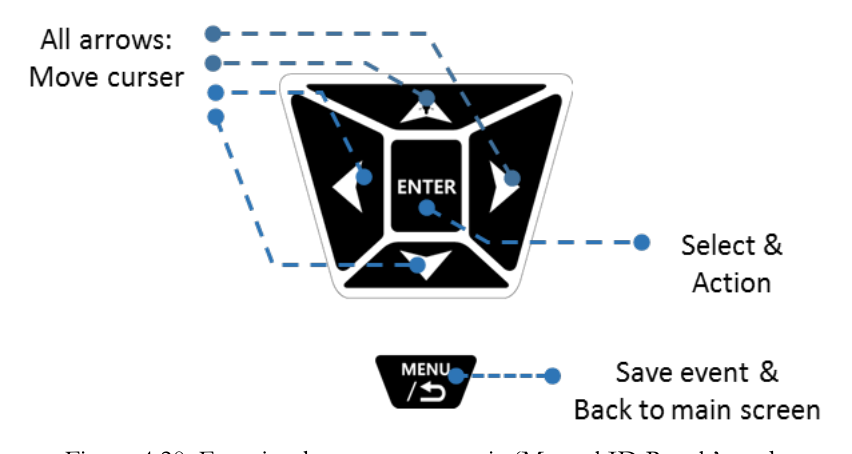

Function button summary in Manual ID Result mode: move cursor, select/action, save event and back to main screen
Figure 4.20. Function button summary in 'Manual ID Result' mode

How to set up Reach-Back

Reach-back service is performed via WiFi network. The event file is converted into standard N42 file format and send to the 'Reach-back' center via email. To enable 'Reach back' feature, appropriate email account has to be stored.

Setup email account: Type in information about the sender and receiver's email account information as shown in figure 4.21. The email account setup menu can be accessed by: Press menu button on the main screen → select 'Setup' menu → Administrator → E-mail account.

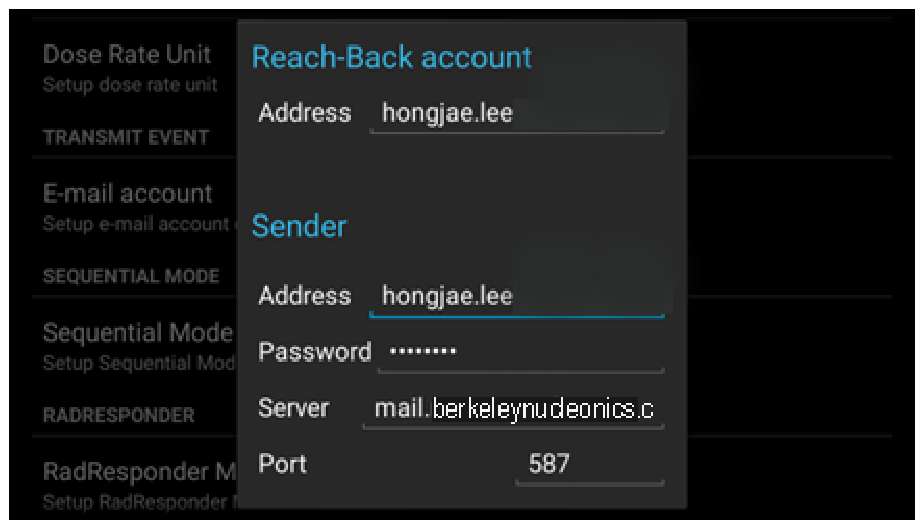

Reach-Back account setup screen with receiver address, sender address, password, server and port
Figure 4.21. Reach-Back account features

Send event(s) from Event Log to Reach-Back

User also can send any event(s) stored in Event Log either to Reach-Back center or third party server (RadResponder). Figure 4.22 summarizes procedure.

  1. Select event from the Event log list and hold for about 2 seconds.
  2. Select 'Reach-back' icon as destination to send.
  3. Select transmit.

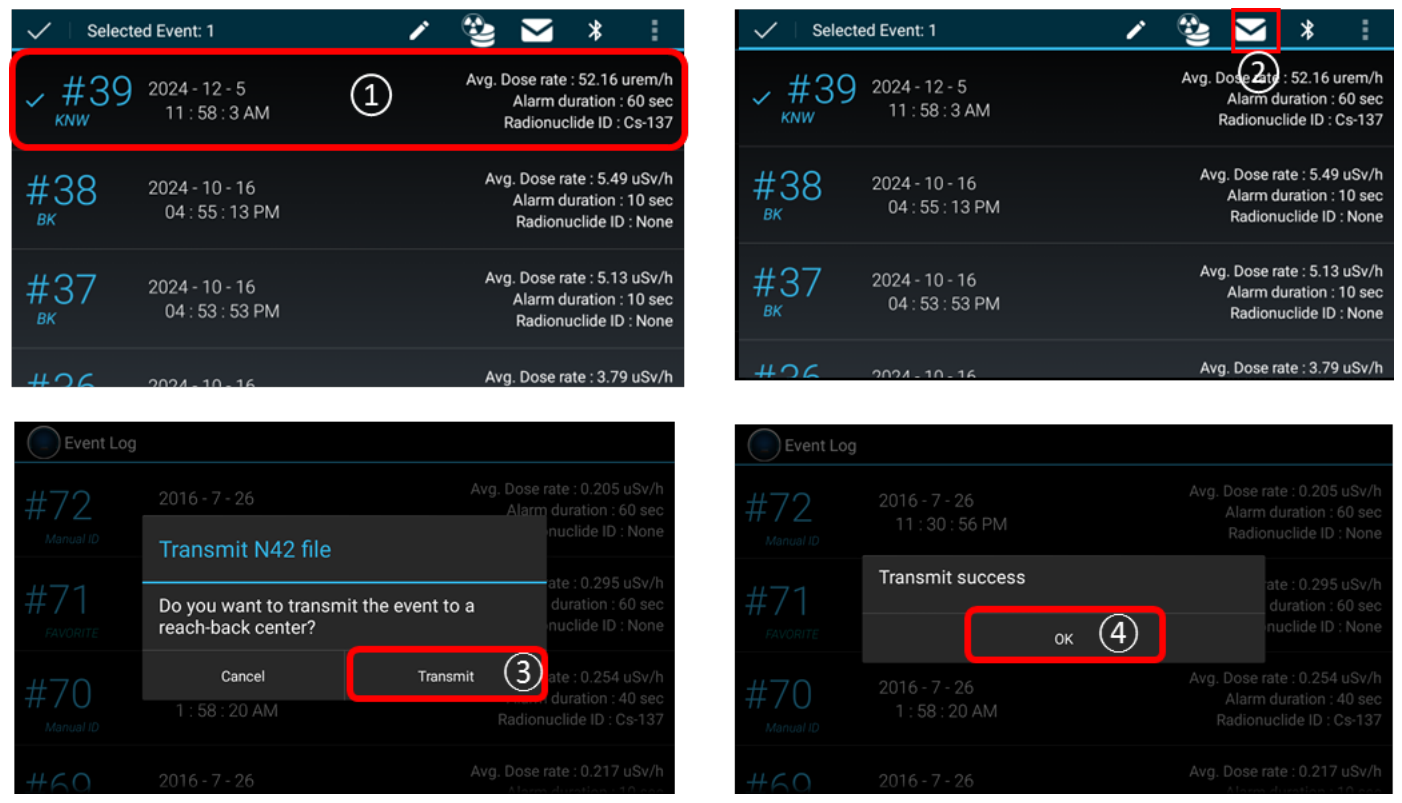

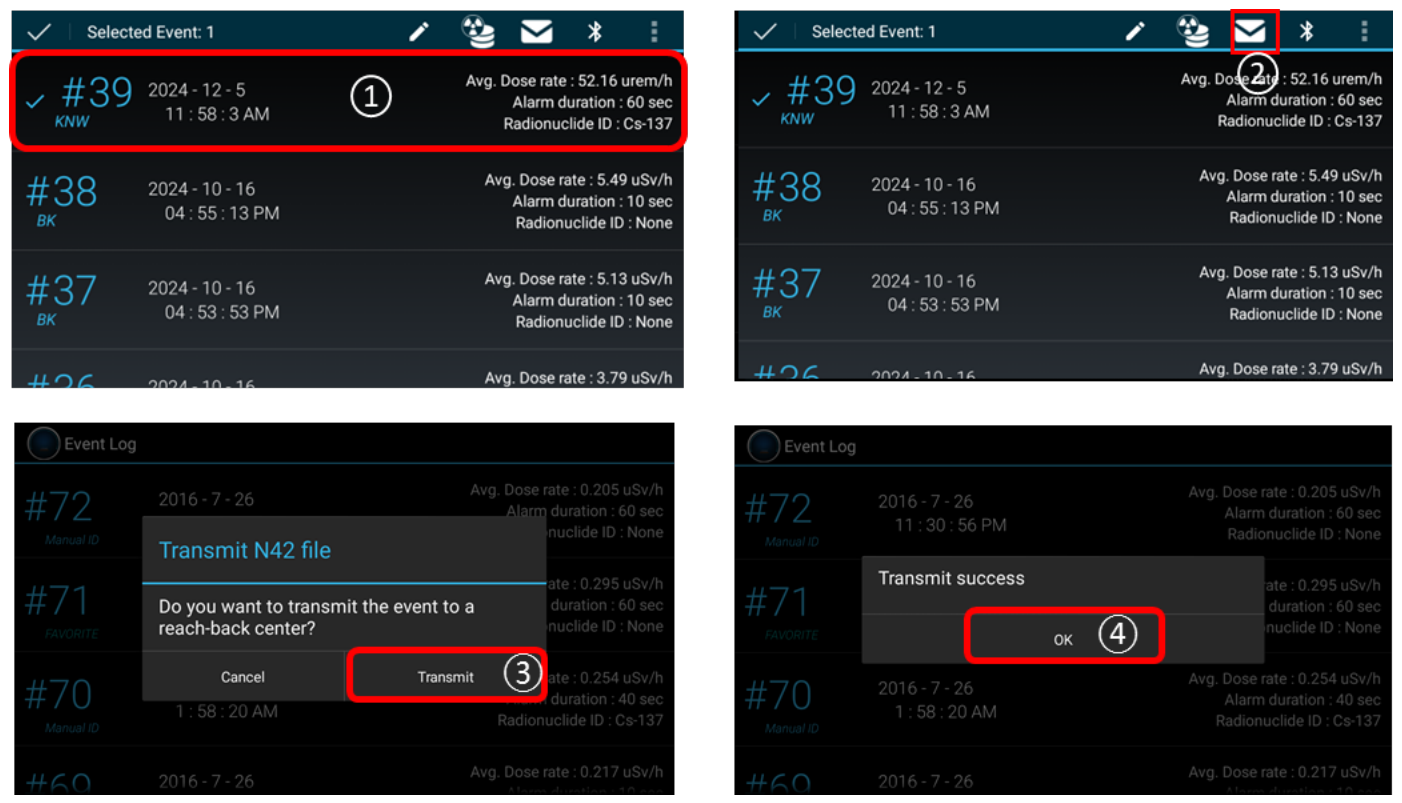

Sending an event from the Event Log to Reach-back, transmit N42 file dialog
Figure 4.22. Sending event(s) from Event Log to Reach-back.

Send event(s) from Event Log to RadResponder

With similar manner to Reach-back service, the event(s) can be send to a server of third party directly. We have partner with RadResponder team and setup necessary account and data format to send our event file. For details about RadResponder please visit www.Radresponder.net

  1. Select event from the Event log list and hold for about 2 seconds.
  2. Select 'RadResponder' icon as destination to send.
  3. Sign in with RadResponder account.
  4. Click 'Grant'.

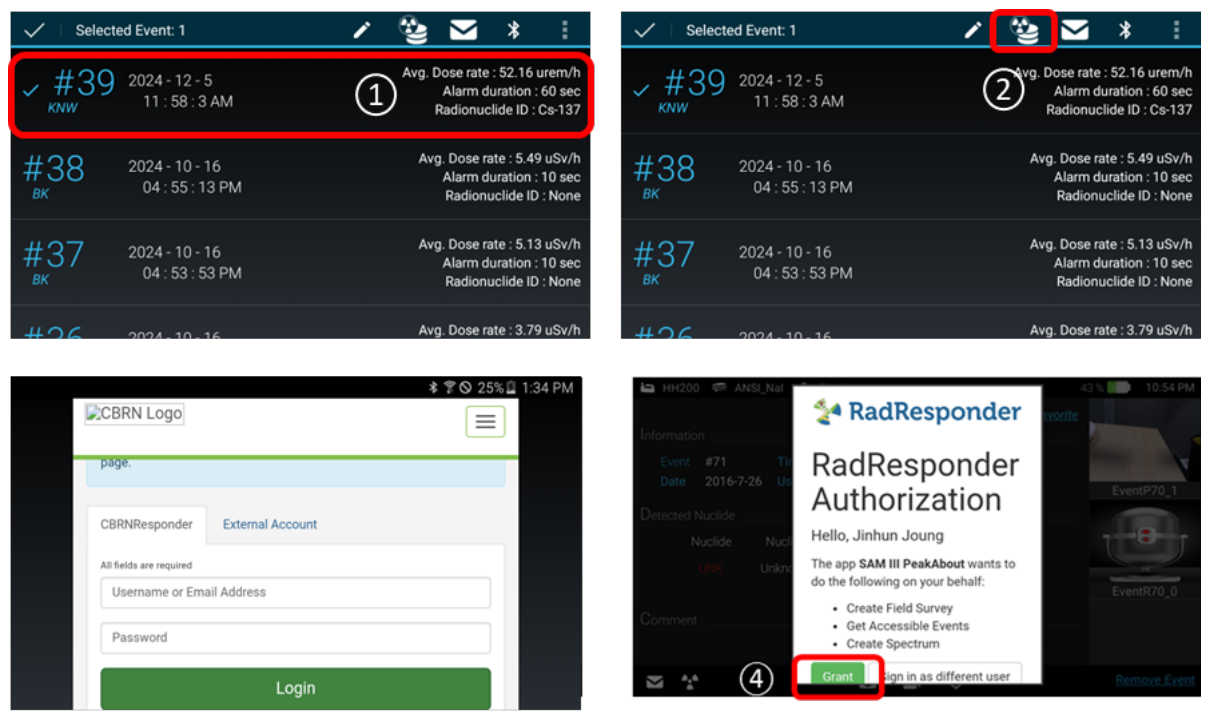

Sending an event from the Event Log to RadResponder, sign-in and authorization screens
Figure 4.23. Sending event(s) from Event Log to RadResponder.

Validation of file transfer to RadResponder server: User can validate file transfer by examining 'success' tag on the event or visiting RadResponder site (www.radresponder.net: /data/spectra). Figure 4.24 shows examples of successful file transfer.

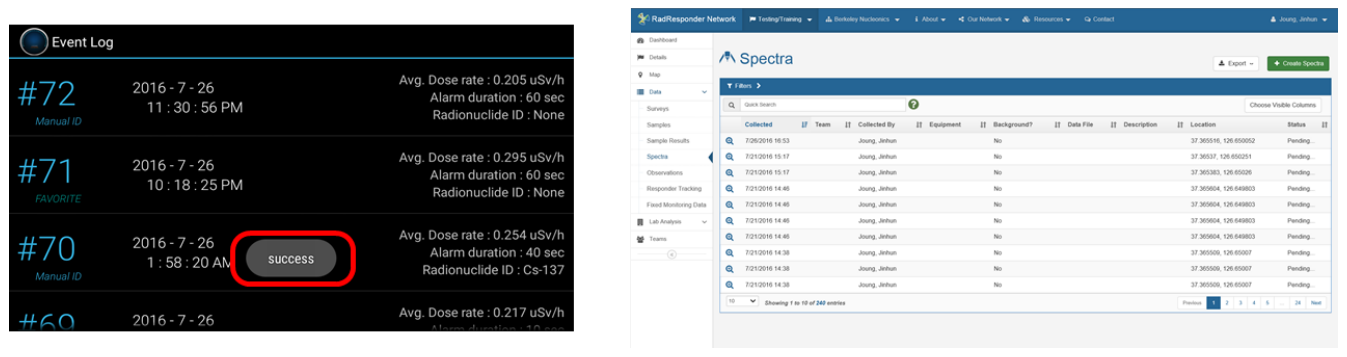

Successful RadResponder transfer validation example
Figure 4.24. Successful transfer validation example.

Attach Media Files

Text and audio comments and/or photo/video may be attached to the opened event.

Attach text comment procedure (figure 4.25)

  1. Touch Comment area. The keypad and typing window screen appeared.
  2. Type in comments and touch "Done" button.

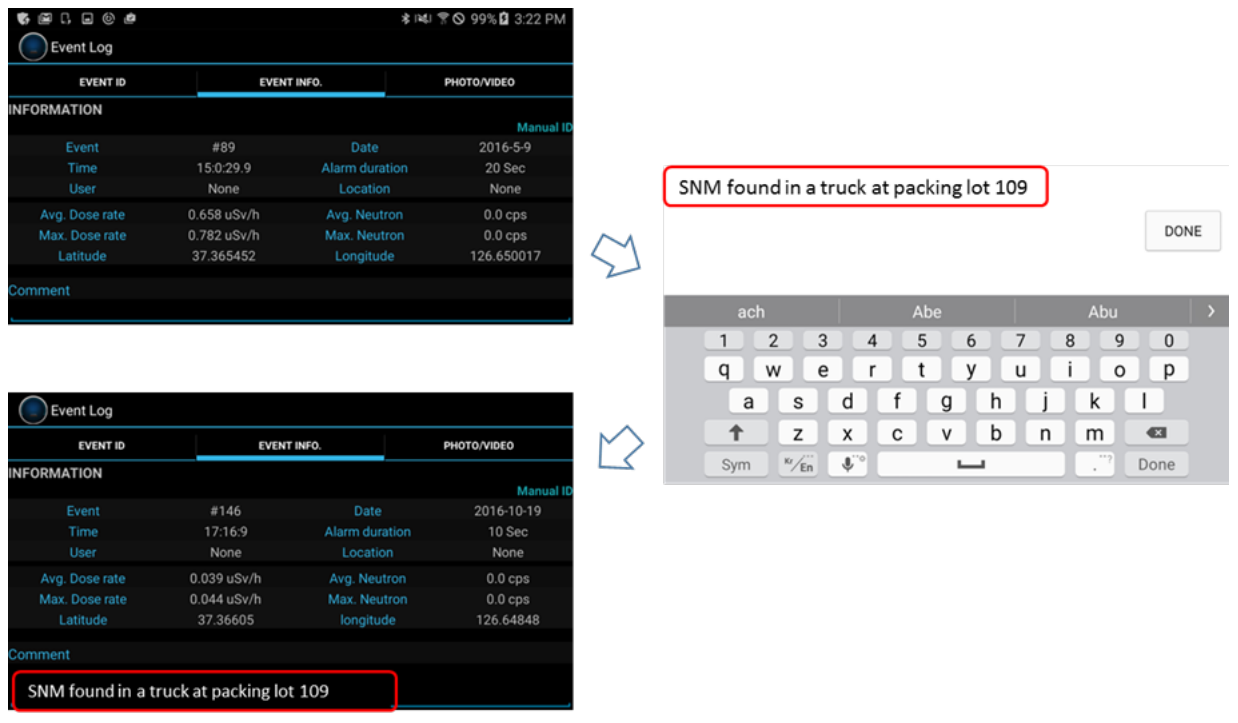

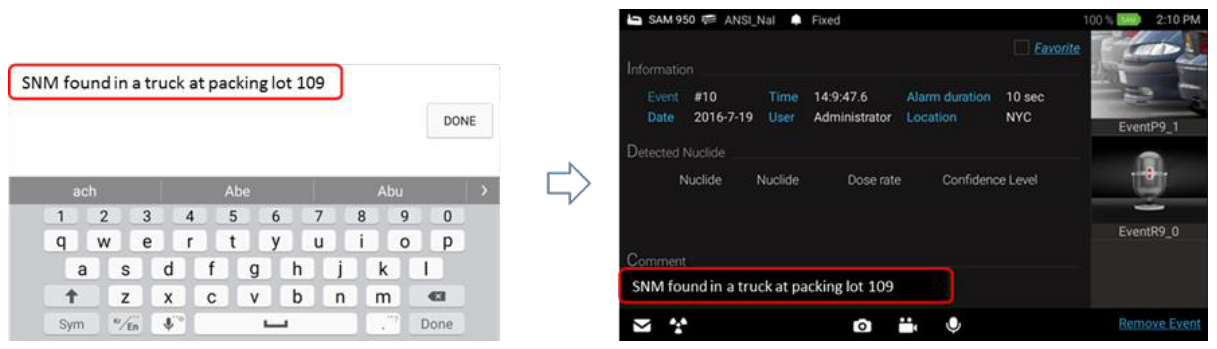

Attach text comment procedure with keypad and typed comment
Figure 4.25. Attach text comment procedure

Attach audio comments/photo/video procedure (figure 4.26)

  1. Touch 'Photo', 'Video', or 'Audio' icon. Selected application is now opened.
  2. Take audio comment, photo or video and save.

User can save as many photo/video as needed. The total number of photo/video saved is displayed on the screen.

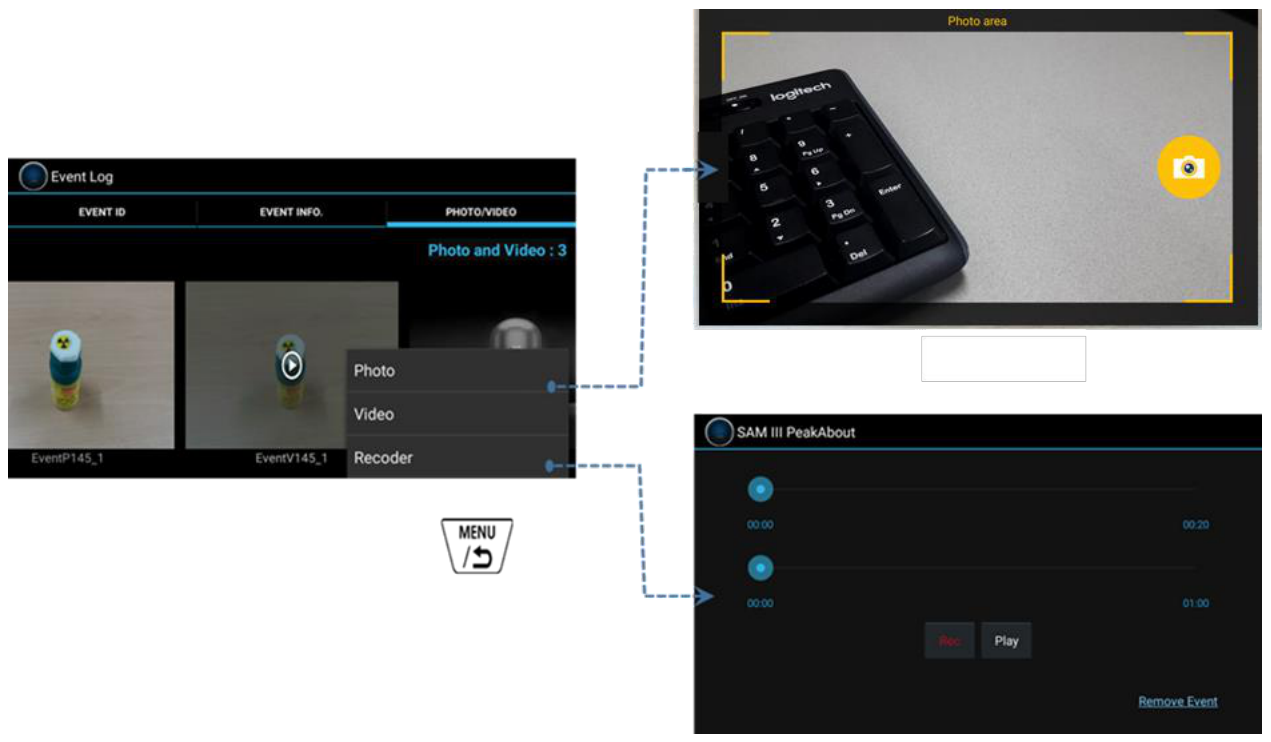

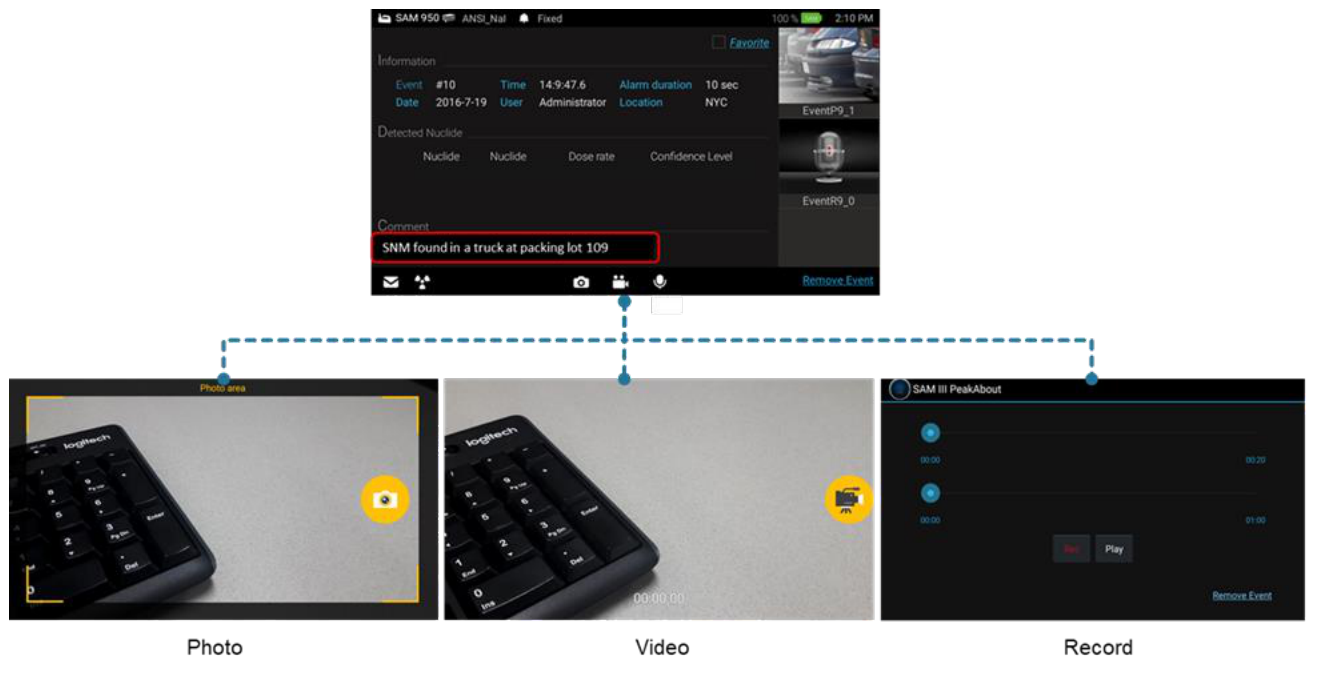

Attaching audio comment, photo and video procedure with photo, video and record panels
Figure 4.26. Attaching audio comment, photo and video procedure

Sequential Mode Operation

SAM 950 provides automatic and programed event log generation. This feature is quite useful when sequential event(s) has to be monitored with long period of time. The 200 unit can be mounted on a tripod for convenience and steady monitoring over long measurement time.

Following is steps to configure sequential mode operation.

  1. Press menu button and select Setup menu.
  2. Select 'Sequential Mode'.
  3. Sequential Mode is optional feature. It can be On/Off by check/uncheck the box as shown in figure 4.27.
  4. Setup 'Measurement Time', 'Pause time' and 'Number of Measurement'.

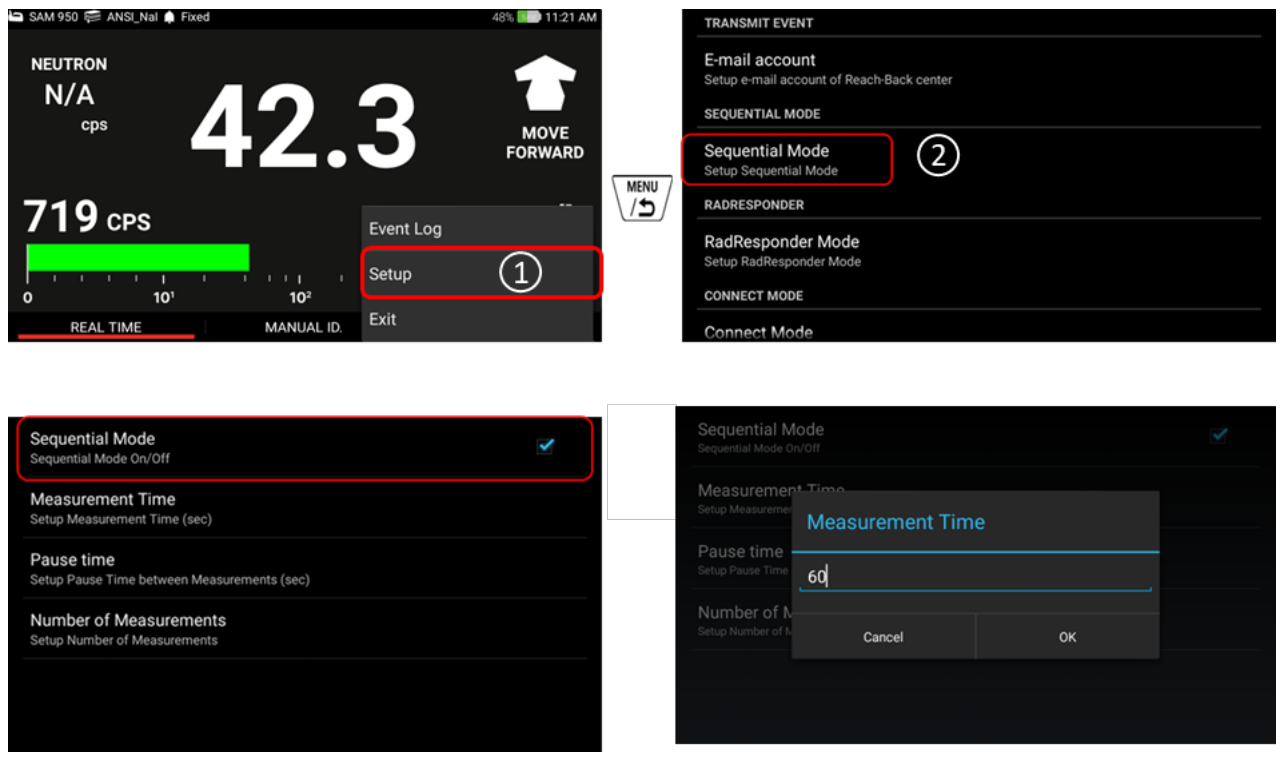

Optional Sequential Mode setup: enable checkbox, measurement time, pause time, number of measurements
Figure 4.27. Optional Sequential Mode setup example

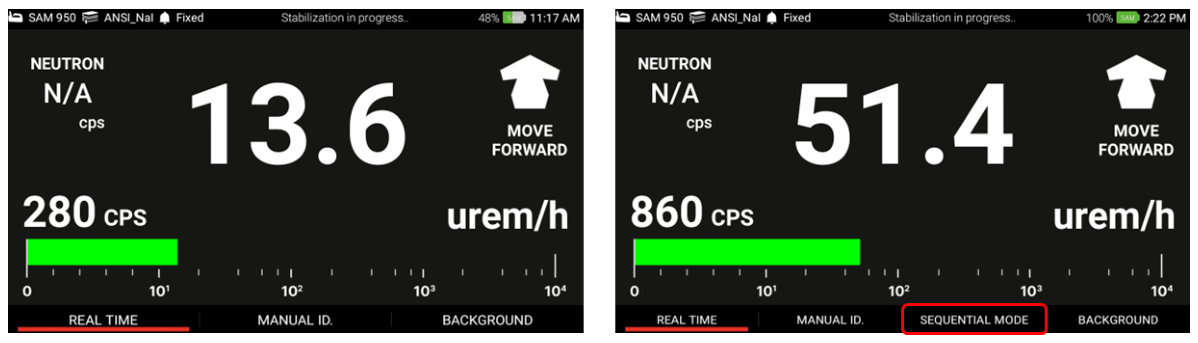

'SEQUENTIAL MODE' menu tab is created on the bottom of main screen when sequential mode option is turned ON as shown in figure 4.28.
SEQUENTIAL MODE menu tab created on the main screen when sequential mode is ON
Figure 4.28. Sequential Mode menu tab is created when sequential mode is ON.

Favorite Event

User can attach a 'FAVORITE' tag to a desired event by check the 'Favorite' box on the 'Event log' screen. The 'FAVORITE' tag is appeared on the bottom of event number in the event log list as shown in figure 4.29.

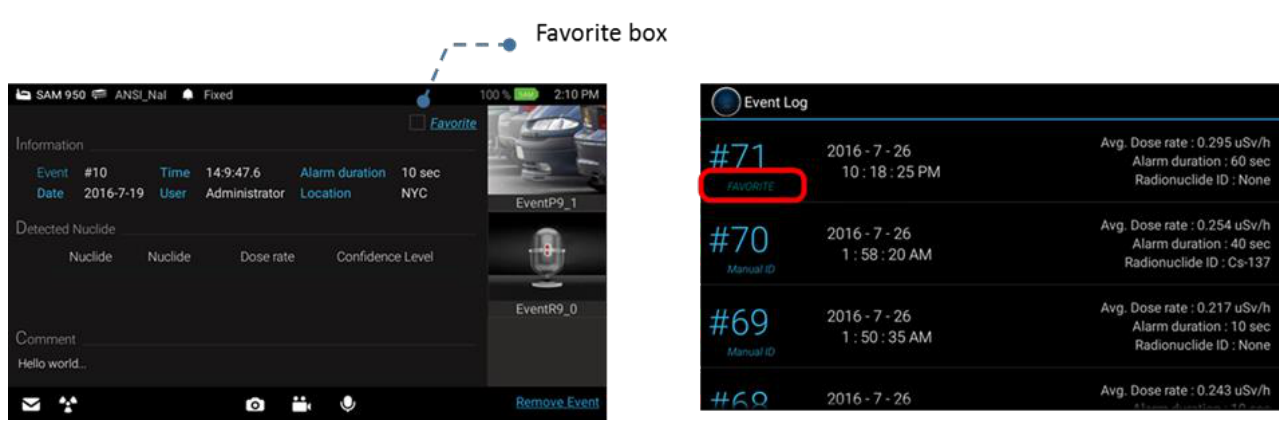

Favorite checkbox on the event screen and FAVORITE tag in the event log list
Figure 4.29. Favorite Screen

Spectrum Manipulation

Spectrum view manipulation is achieved by touching the PDA display as shown in figure 4.30.

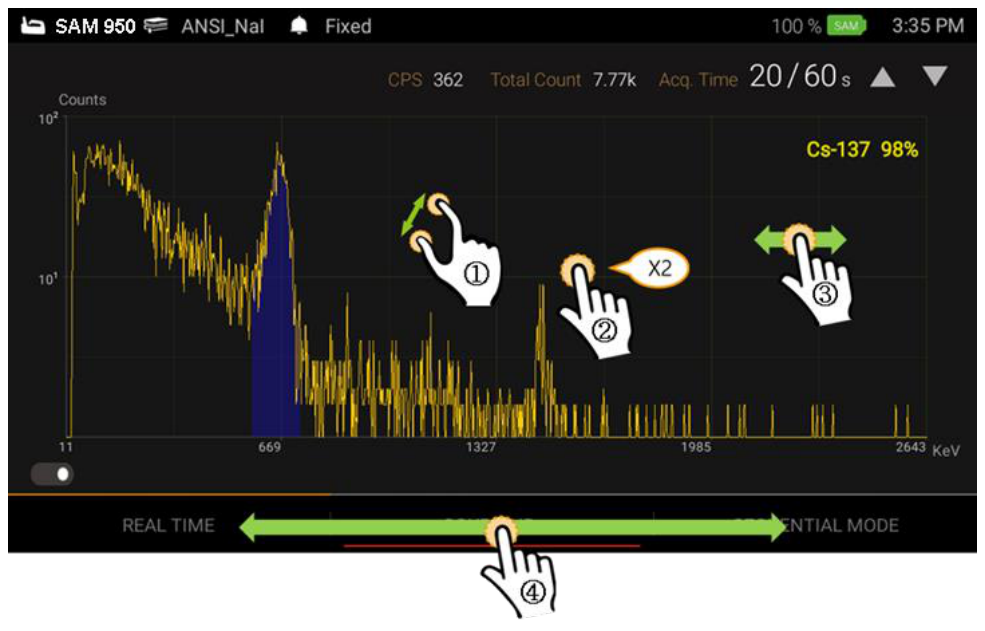

Spectrum manipulation examples: pinch zoom, double-tap reset, hold and move
Figure 4.30. Spectrum manipulation examples
#ActionEffect
1Touch with two fingers and expend or retractZoom in/out on a region of interest
2Tap twice quicklyZoom back to the original spectrum scale
3Hold and move left/rightSpectrum moves along the x-axis (if display is zoomed in)
4Touch/hold on x-axis and move left/rightInitiate a moveable swipe bar to display Real Time and Sequential mode at the touched position
Y-axis maximum value is automatically adjusted based on the channel with the maximum counts.

5Operational Instructions

Step 1. Prepare the SAM 950 for Operation

  1. Fully charge the SAM 950 unit.
  2. Turn power ON. The red LED lamp is turn on.

Both the SAM 950 unit and imbedded PDA are charged and powered simultaneously.

SAM 950 rear panel with power switch and charge cable
Figure 5.1. SAM 950 charge and power up example

Step 2. Log In

  1. Log in as User or Administrator (password protected).
  2. To change password, setup the password as shown in figure 5.2.
  3. Setup menu can be accessed by press menu button on the handle or Touch icon on the touch screen.

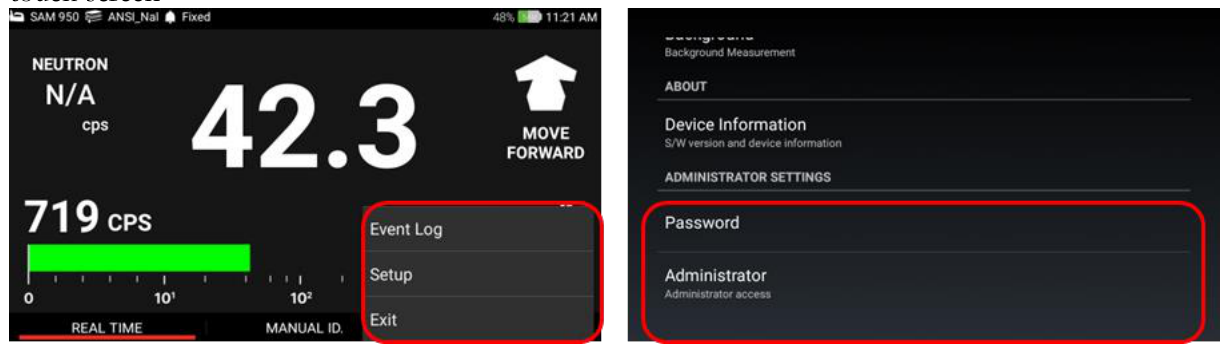

Login example showing pop-up menu and Administrator password screen
Figure 5.2. Login example
Administrator login requires password. Regular user can't access to certain information and/or setup. Factory setup default password for administrator is '1234'. To change the password, refer to figure 5.2. It is in 'Device Information/Password' in Setup menu.

Step 3. Agent and Search Place Information

Note: the SAM III PeakAbout software will not start if setup has not been completed.
  1. Setup menu can be accessed by press menu button on the handle or Touch icon on the touch screen.
  2. Select a 'Setup'.
  3. Type in information on the "User Name" and "Search Location" fields.
Example of accessing the Setup menu with Administrator password
Figure 5.3. Example of access to setup menu

Step 4. Daylight Mode

SAM 950 supports switching to Daylight mode. This is a theme with a white background that helps improve visibility when the device is used outdoors. To switch to Daylight mode, follow these steps:

  1. Setup menu can be accessed by press menu button on the handle or Touch icon on the touch screen.
  2. Select a 'Setup'.
  3. Select "Daylight Mode" menu on Setup.
  4. A popup will appear asking for a restart application to switch to Daylight mode.

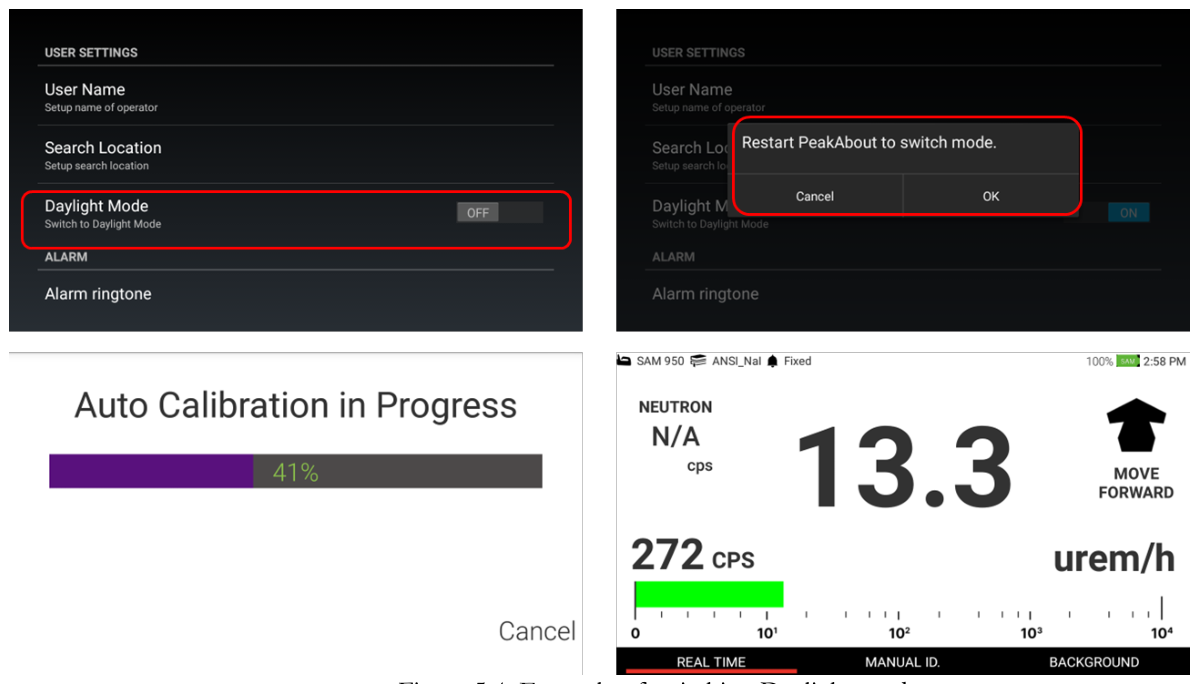

Switching to Daylight mode: restart prompt and white-background main screen
Figure 5.4. Example of switching Daylight mode

To switch to Normal mode, do the same by click turn of daylight mode.

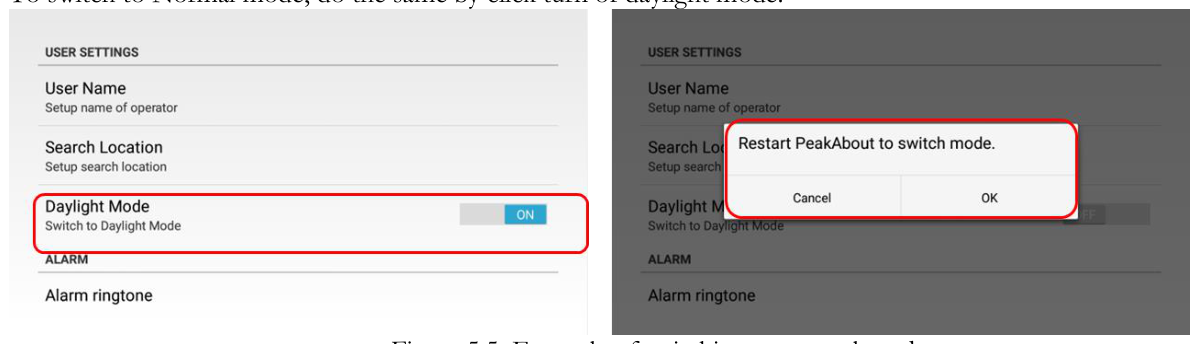

Switching back to Normal mode from Daylight mode
Figure 5.5. Example of switching to normal mode

Step 5. Alarm Threshold

SAM 950 provides two options for alarm triggering described in the following table.

ModeDescription
Fixed (Set) Alarm ThresholdAlarm is ON when the count rate exceeds the fixed (set) value. This method is prone to false alarms if the NORM background is fluctuating (usually the case when the system is in motion during search mode).
Variable Alarm ThresholdThe threshold value is automatically set according to the statistical fluctuation of the measured background which is updated every 10 seconds. The standard deviation (σ) value is automatically calculated. The threshold value for the background is a multiple of this sigma (σ) value. This multiple is selected during the setup procedure. When the incoming count rate exceeds the threshold value then the system will alarm. This mode is recommended for search mode when the system is in motion and subject, therefore, to fluctuating background.
  1. Select 'Set Alarm Mode' (figure 5.6).
  2. Select either "Fixed alarm mode" or "variable alarm mode".
  3. Select a fixed count rate value from the 'Fixed alarm mode' menu OR
  4. Select a standard deviation (sigma) value from the "Variable alarm mode".

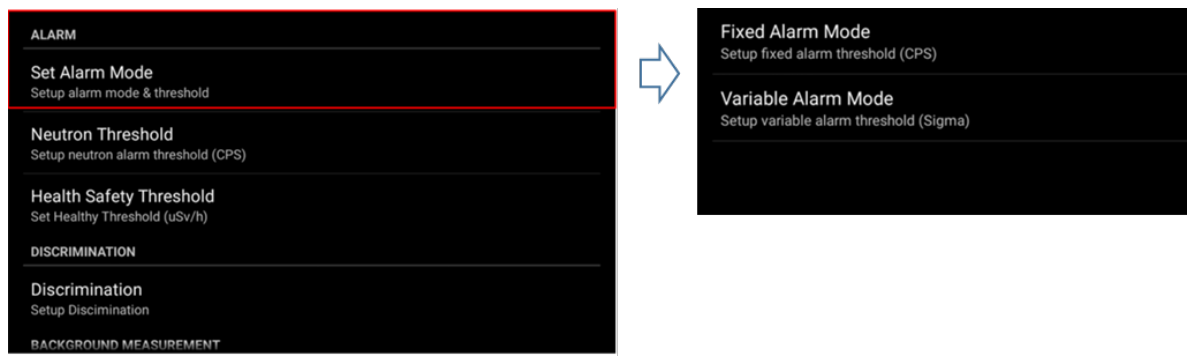

Alarm threshold configuration: Set Alarm Mode, Fixed and Variable alarm mode
Figure 5.6. Example of Alarm threshold configuration

Step 6. Alarm Ringtone & Sound Level

The SAM 950 provides five alarm ringtone options as shown in Figure 5.7.

  1. Select 'Alarm ringtone' (figure 5.7).
  2. Select desired alarm ringtone.
  3. OK and save the ringtone.

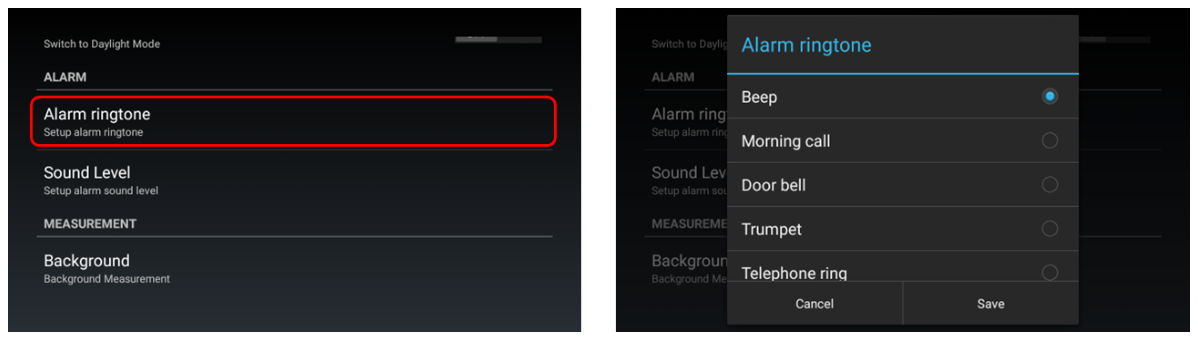

Selecting an alarm ringtone with Beep, Morning call, Door bell, Trumpet, Telephone ring options
Figure 5.7. Select ringtone

The sound volume of the alarm can also be adjusted, as shown in Figure 5.8.

  1. Select 'Sound level' (figure 5.8).
  2. Select the desired alarm volume level.

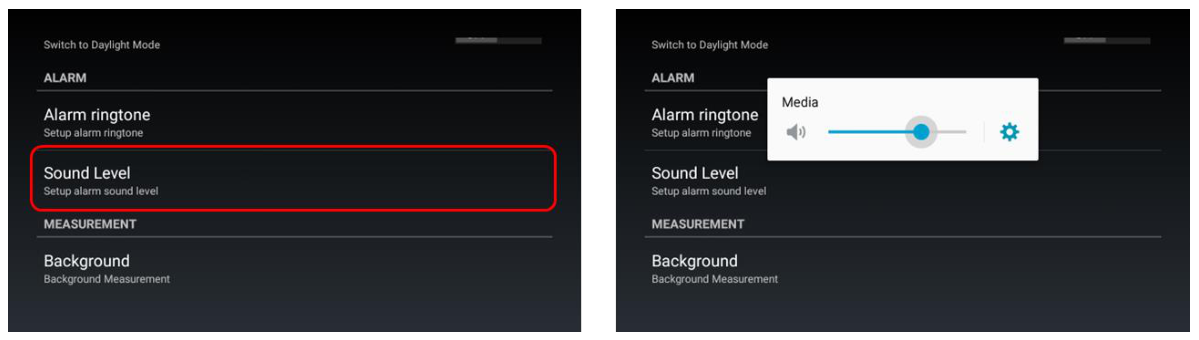

Selecting the alarm sound level
Figure 5.8. Select sound level

Step 7. Background Measurement

Reliable background information is critical for good nuclide identification and alarm performance. The software employs an advanced "NORM Rejection Algorithm" to reduce false alarms due to the fluctuations in the naturally occurring background. Appropriate background measurement and system calibration of the SAM 950 will ensure that the best possible results are obtained.

Background measurement is easily accessed by clicking the Background menu on the primary GUI screen, as shown in the figure.

Measured background spectrum on the main screen
Figure 5.9. Measured Background on the main screen

Background measurement can also be performed in the Setup menu by following steps 1 and 3.

  1. Select 'Setup' menu.
  2. Select 'Background' menu.
  3. Measure background information.
Accessing the Background menu from Setup
Figure 5.10. Background measurement example (menu access)
Background measurement spectrum updating in blue during acquisition
Figure 5.10. Background measurement example
Ensure that no radiation sources are in the vicinity of the SAM 950 during the background measurement. The background spectrum (displayed in blue) is automatically updated during the measurement. The criteria to determine the background acquisition time are defined in the 'Setup' menu.

Step 8. Energy Calibration

  1. Select 'Set up' menu.
  2. Log in as User or Administrator (password protected).
  3. Select the desired setup procedure, i.e., Energy Calibration.
  4. Place Cs-137 source front to the SAM 950.
  5. Select 'Calibration' menu.
Accessing the Energy Calibration menu
Figure 5.11. Calibration example (menu access)
Energy calibration screen with spectrum and acquisition info
Figure 5.11. Calibration example

The calibration information is saved in the memory of SAM 950. And the new calibration information can be replaced by click "Save" when calibration is completed as shown in 5.12. By selecting "Cancel" the new calibration is NOT replaced to the new one.

Depend on HW and firmware version, this feature may or may not being supported.
Replace calibration information dialogs
Figure 5.12. Replace calibration information
It is recommended that the total integrated counts in the background spectrum should be not less than 100,000. The total count is defined in the 'Setup' menu.

Step 9. Radiation Monitoring

Now the SAM 950 is ready for operation.

  1. Gamma activity is displayed in both dose-rate (uSv/h or rem/h) and count rate (cps) units.
  2. Figure 5.13 shows the main screen.
If "Variable Threshold" background method is selected, allow the unit to collect background statistics for about 20 seconds before starting radiation monitoring.
Primary GUI with labelled library/alarm, battery, neutron count, dose rate, count rate and menu bar
Figure 5.13. Primary GUI description
ItemDescription
PDA informationPDA status information is displayed in this window. For details, refer to the "Samsung Galaxy Player" manual.
Status Information
  • Alarm mode: selected threshold method
  • Library: selected nuclide isotope library
  • SAM battery: paired SAM 950 battery life indicator
  • Neutron: 'None' for no neutron detector option. Otherwise, it displays Neutron activity count rate.
Gamma activity displayGamma activity is displayed in the selected 'dose rate' units.
The default gamma activity unit is uSv/h or mrem/h. It can select a 'Set up' menu. Several methods have been proposed for the calculation of dose rate using spectral data provided by a NaI(Tl) detector. The SAM 950 employs a method defined by Kwon et.al. [1].

Step 10. Alarm & Isotope Identification

When the SAM 950 alarms the display changes to red (as shown in figure 5.14) and the alarm audible warning is activated.

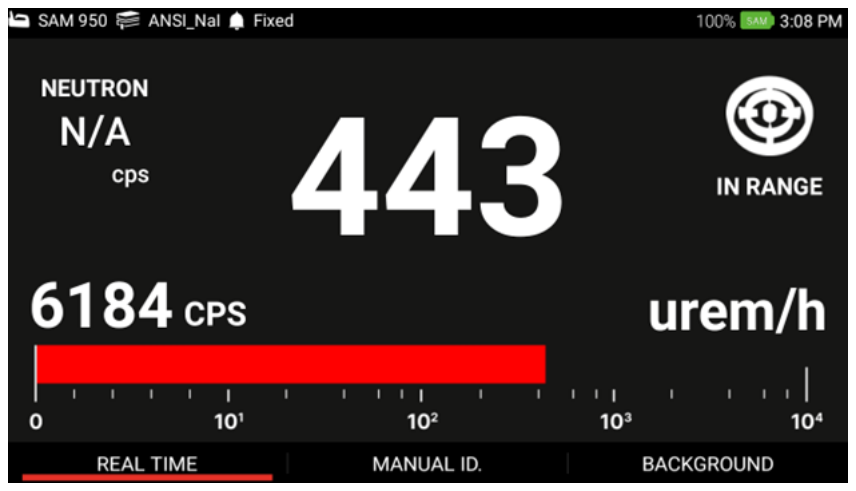

Alarm screen with red display indicating an alarm condition
Figure 5.14. Alarm Screen
The required nuclides must be in the selected radionuclide library. Refer to 'Nuclide Library Management' session for details of library management.

SAM 950 provides 4 alarm status. Details are summarized in table 5.1.

Alarm TypeDescription
MOVE FORWARD alarm iconActivity level is too low to trigger alarm. User has to move forward to activate alarm.
MOVE BACK alarm iconActivity level is too high. User has to move back for safety.
IN RANGE alarm iconAppropriate alarm condition. Manual ID can be performed in this range.
DANGER alarm iconActivity level is extremely high and user has to be evacuate immediately.

Table 5.1. Alarm type and its description

Step 11. Manual ID

There are three ways to execute 'Manual ID': 1. Press and hold the 'Enter' key for about 2 seconds, 2. Touch the 'Source ID' menu on the main screen, or 3. Scroll and locate the red bar on the 'manual ID' menu by using left/right button on the handle and press 'Enter' key.

  1. Touch the Manual Identification bar and an Event Spectrum will begin immediately.
  2. The default capture time for Manual Identification is 30 seconds. You may increase or decrease the capture time by touching the symbols ▲ or ▼ respectively. Default time is increased or decreased in increments of 10 seconds.

Default capture time and increment can be programmable in Setup menu. When the capture time has elapsed, the Isotope Identification screen will return to the ID result screen.

Source ID mode screen with labelled spectrum, counts and isotope ID
Figure 5.15. Source ID Mode

Step 12. Event Log List

The Event Log associated with a 'Manual ID' is automatically generated and saved in the PDA device. The Event Log screen provides a summary of every alarm event. This data is transferred to the command center software database by connecting the PDA to the command center PC. Once the information is downloaded to the database, the content is automatically deleted on the PDA.

Complete analysis of the spectra for the stored events can be performed with either the PDA or the Command Center SW installed on the Command Center PC.

  1. Select 'menu button' (Long Press).
  2. Select 'Event Log' menu.
Entering the Event Log menu from the main screen pop-up
Figure 5.16. Example of entering Event log menu

The SAM 950 provides the following functions in the Event Log list:

Send event(s) from Event Log to Reach-Back

User also can send any event(s) stored in Event Log either to Reach-Back center or third-party server (RadResponder).

  1. Select event from the Event log list and hold for about 2 seconds.
  2. Select 'Reach-back' icon as destination to send.
  3. Select transmit.
Sending an event from the Event Log to Reach-back, transmit dialogs
Figure 5.17. Sending event(s) from Event Log to Reach-back.

Send event(s) from Event Log to RadResponder

With similar manner to Reach-back service, the event(s) can be send to a server of third party directly. We have partner with RadResponder team and setup necessary account and data format to send our event file. For details about RadResponder please visit www.Radresponder.net

  1. Select event from the Event log list and hold for about 2 seconds.
  2. Select 'RadResponder' icon as destination to send.
  3. Sign in with RadResponder account.
  4. Click 'Grant'.
Sending an event from the Event Log to RadResponder, sign-in and authorization
Figure 5.18. Sending event(s) from Event Log to RadResponder.

Validation of file transfer to RadResponder server: User can validate file transfer by examining 'success' tag on the event or visiting RadResponder site (www.radresponder.net: /data/spectra). Figure 5.19 shows examples of successful file transfer.

Successful RadResponder transfer validation example
Figure 5.19. Successful transfer validation example.

Send event(s) from Event Log to other devices (Window OS, Android OS)

The event(s) can be sent to another device with Windows (PC, tablet) or Android OS via Bluetooth transfer. All selected events are saved in a ZIP file and sent.

  1. Select event(s) from the Event log list and hold for about 2 seconds.
  2. Select 'RadResponder' icon as destination to send.
  3. Select desired device to send.
  4. On the receiving device, click "Accept" file, and the file will be sent.

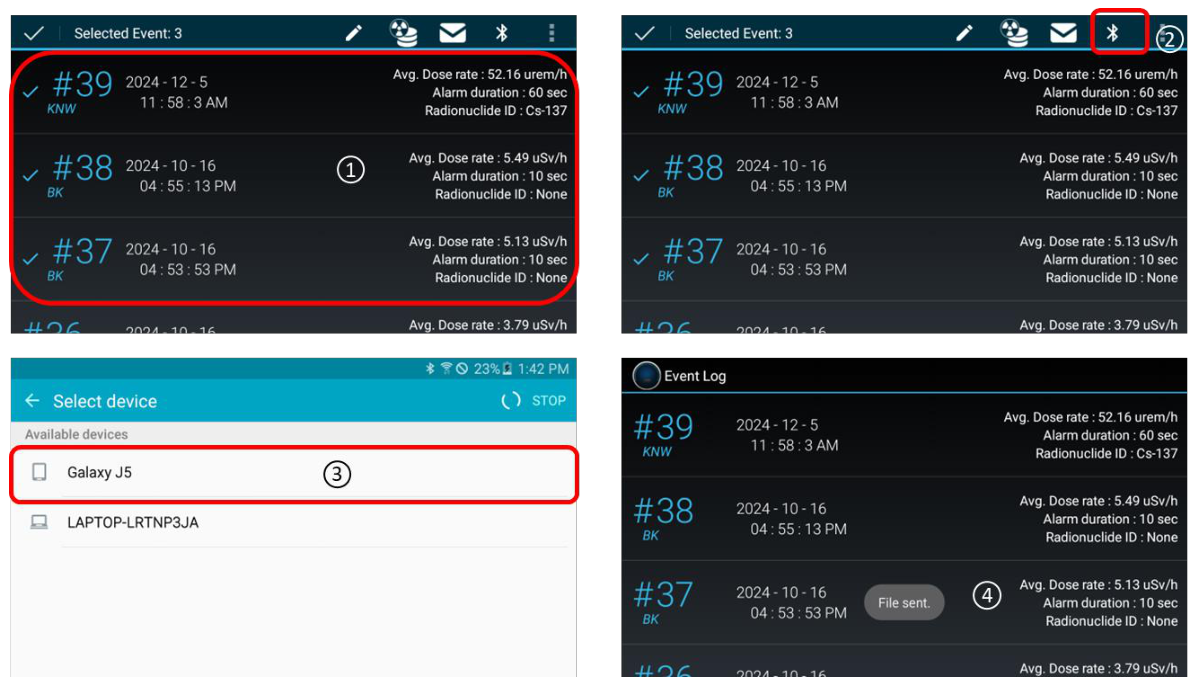

Sending events from the Event Log to another device via Bluetooth, device selection
Figure 5.20. Sending event(s) from Event Log to other devices.

Download event(s) to PDA

  1. Select event(s) from the Event log list and hold for about 2 seconds.
  2. Select Download menu.
  3. A dialog asking to save will pop up. File name is editable. Click OK to save as a ZIP file.
  4. The file will be saved on device PDA's storage.

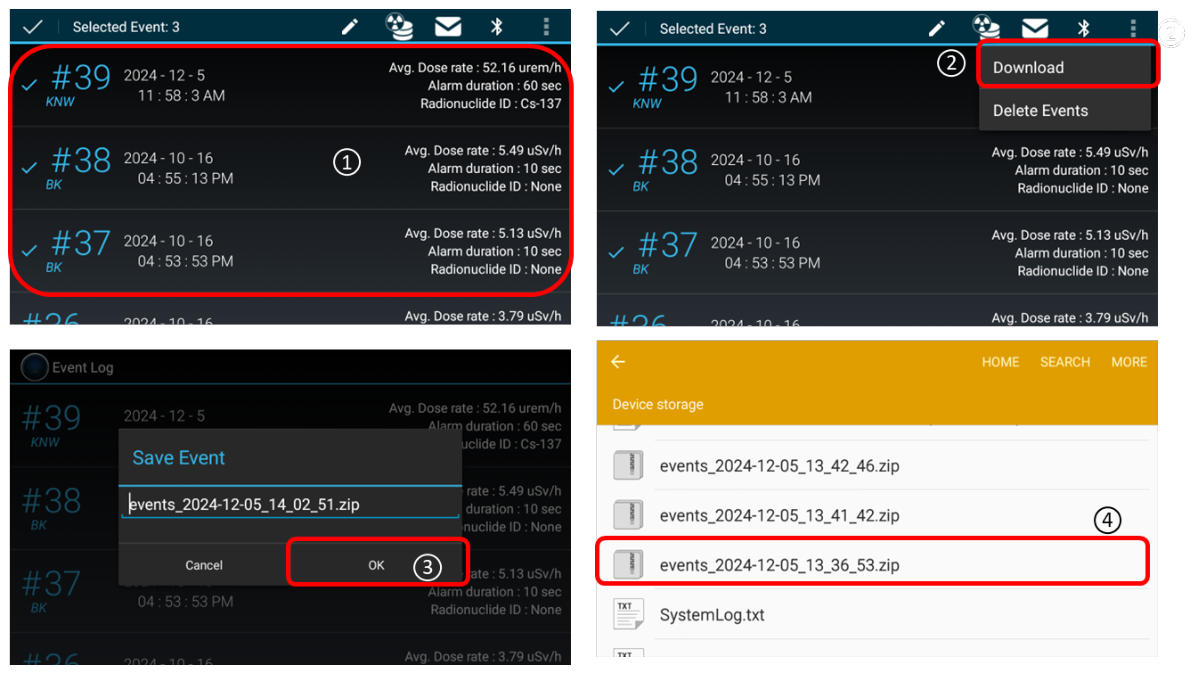

Downloading events to PDA storage, save dialog and device storage listing
Figure 5.21. Sending event(s) to PDA.

Event type change

  1. Select event(s) from the Event log list and hold for about 2 seconds.
  2. Select 'Edit' icon as destination to send.
  3. A dialog asking to edit will pop up. Select type desired event and click OK to process.
  4. The result shows that the event type has been changed.

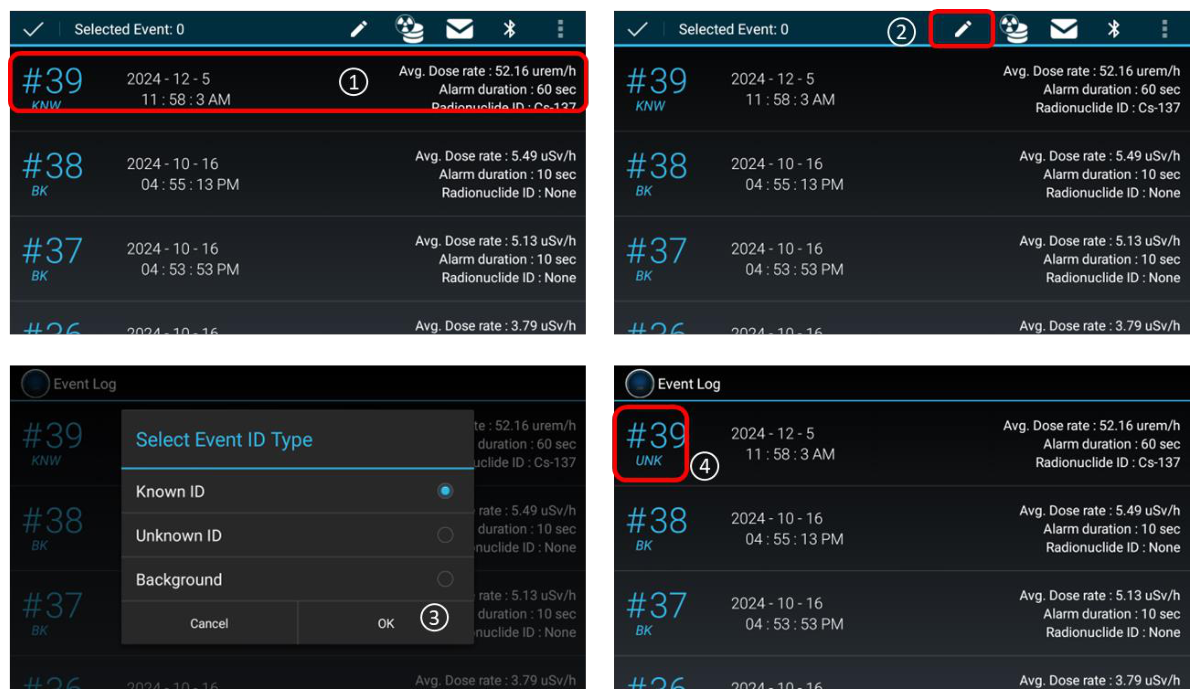

Edit event type: Select Event ID Type dialog (Known ID, Unknown ID, Background)
Figure 5.22. Edit event(s) type

Delete event

  1. Select event(s) from the Event log list and hold for about 2 seconds.
  2. Select '3 dot' icon.
  3. Select "Delete Event" menu.
  4. A dialog asking to delete will pop up. Click OK to delete event.

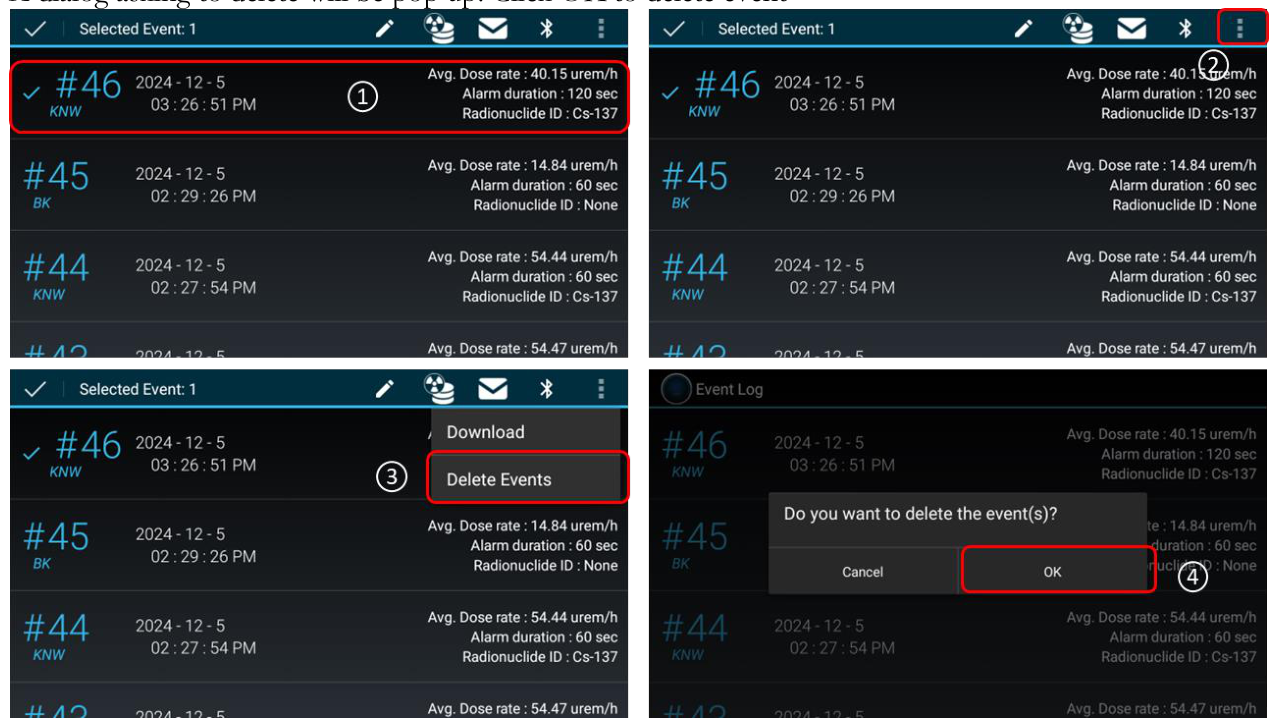

Delete event example with Delete Events menu
Figure 5.23. Delete event example

Step 13. Event ID and Info

An event spectrum and its associated information can be displayed by touching the event on the list (Figure 5.16). The Event Log screen appears as shown in figure 5.24. The Event Log screen consists of 3 tabs, i.e., EVENT ID, EVENT INFO and PHOTO/VIDEO. Figure 5.24 and 5.25 shows EVENT ID and EVENT INFO screen, respectively.

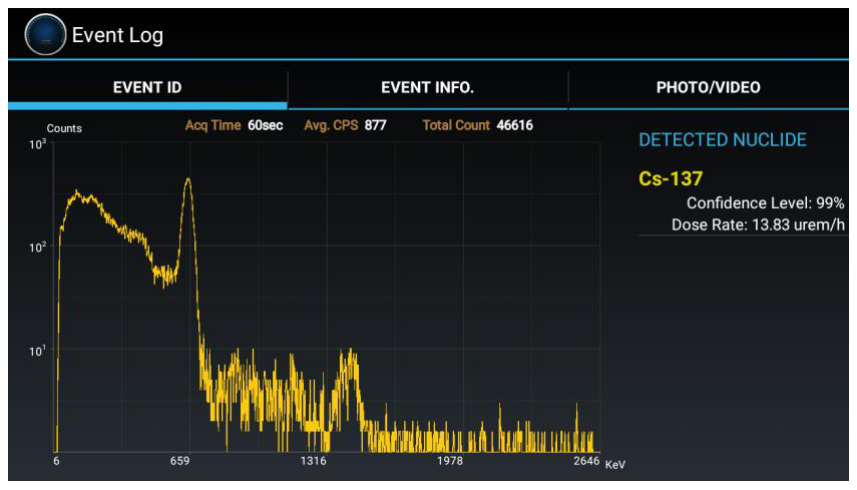

Event ID screen with spectrum and detected nuclide
Figure 5.24. Event ID screen

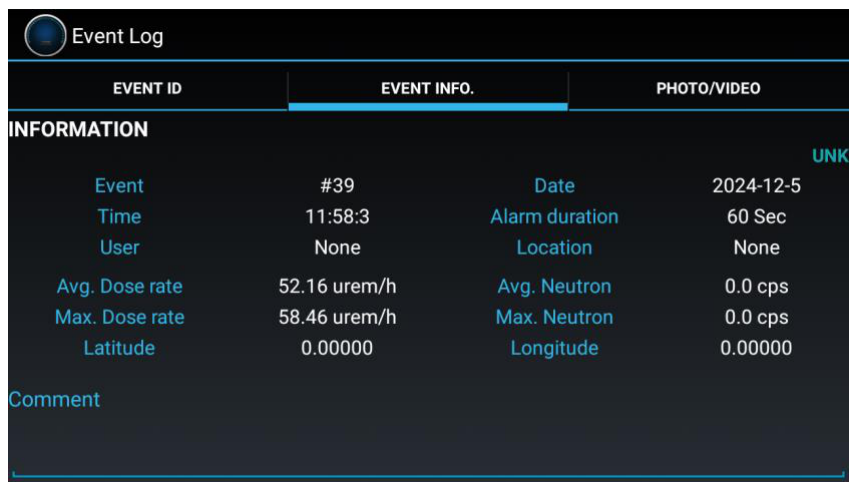

Event info screen with event, time, user, dose rate, neutron and location fields
Figure 5.25. Event info screen

General information of any detected nuclide can be displayed by touching a nuclide from the list. A popup "Help screen" is appeared as shown in the figure below.

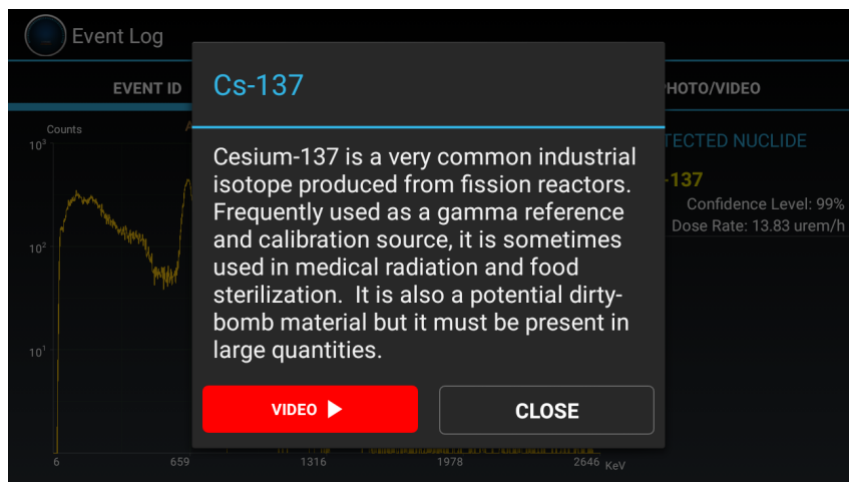

Nuclide help screen popup describing Cs-137 over the Event ID spectrum
Figure 5.25. Nuclide help screen popup

Step 14. Note and Photo

Text comments and/or photo/video may be attached to the opened event. 'Attach text comment' procedure is shown in figure 5.26.

  1. Touch 'EVENT INFO' tab. 'EVENT ID' screen switches to 'EVENT INFO' screen.
  2. Touch comment area. The keypad and typing window screen appeared.
  3. Type in comments and touch 'Done' button.
Attach text comment procedure with keypad and typed comment
Figure 5.26. Attach text comment procedure

'Attach photo / Video / Recorder' procedure is described in figure 5.27.

  1. Touch "PHOTO/VIDEO/RECORDER" tab.
  2. Touch menu key (Long press). Then, Photo/Video/Recorder bar is showed up.
  3. Touch "Photo" or "Video" or "Recorder" bar. Photo or Video or Recorder application is now opened.
  4. Take photo or video or recorder and touch "Save" button.
Attaching photo procedure with Photo/Video/Recorder bar and capture panels
Figure 5.27. Attaching photo procedure

Auto Calibration and Stabilization

The auto calibration and stabilization feature adjusts the calibration parameters of the system to correct for any drift caused by environmental changes (generally ambient temperature).

Auto calibration is automatically executed when the SAM 950 is powered up (refer to figure 5.28). If user determines to cancel the auto calibration, it can be stop by touch 'Cancel' button. The auto stabilization is executed every 3 minutes unless the unit is in alarm status.

When auto calibration and stabilization is executed the system automatically adjusts its gain using radiation generated by the K-40 radionuclide found in natural potassium. The 1.4 MeV peak from the K-40 nuclide present in naturally occurring potassium is utilized. A calibration source is not needed. KCl powder is already securely installed if it is desired to achieve stabilization in a shorter time, as might be in the rare case of a location where there are unnaturally low levels of potassium. The stopping criteria for this automatic feature are the integrated counts in the K-40 peak. The value for the integrated counts is defined in the setup configuration. Typically 5,000 counts are recommended in order to ensure that the stabilization K-40 peak is well defined. Supplemental Potassium Chloride (KCL) salt can be used to assist the stabilization if necessary.

If drift of more than ± 6% between the stabilized peak and the original peak (Cs-137 calibration peak) occurs then re-calibration using a Cs-137 source is required.

When Bluetooth connection is complete, the SAM 950 will typically perform Auto Calibration. It is advised that you wait for Auto Calibration to complete (100%) in order to proceed further, but if your device has been manually calibrated recently, then you may cancel if you wish.

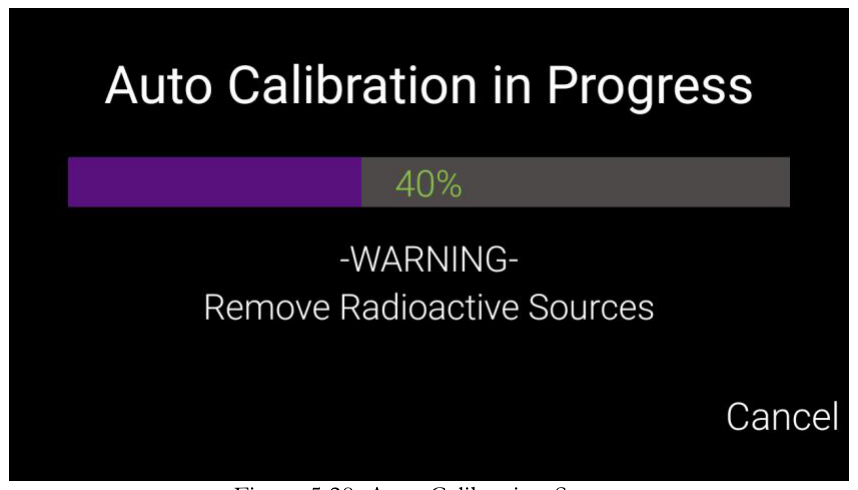

Auto Calibration in Progress screen with warning to remove radioactive sources
Figure 5.28. Auto Calibration Screen

6Command Center Software

Connection Between PDA and PC

Download of the event log data to the command center database is achieved by connecting the PDA to the PC with the provided USB cable. The procedure is detailed below:

  1. Exit the PeakAbout software.
  2. Connect SAM 950 to the PC using a USB cable. The USB port is located on the back of the SAM 950 unit.
  3. From PC, open PeakID software.
  4. Refer to the PeakID software chapter for backup/management database.

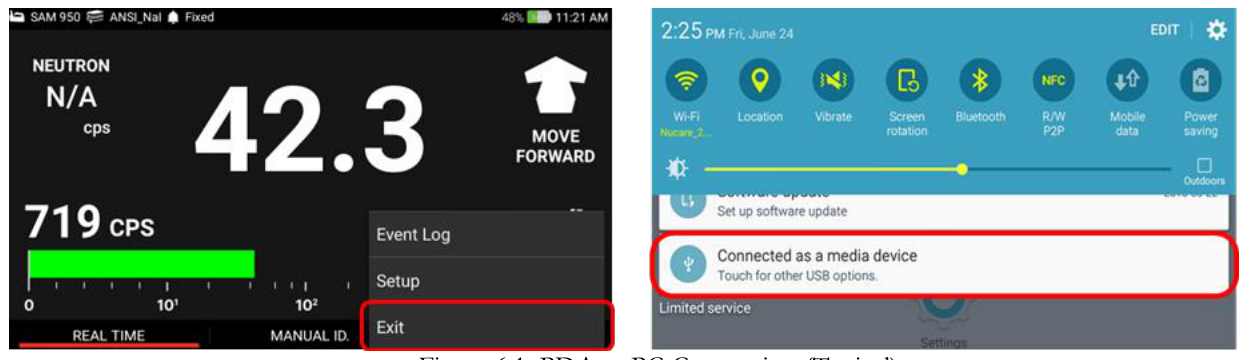

PDA to PC connection: exit PeakAbout, connect as media device
Figure 6.1. PDA to PC Connection (Typical)

Installation Instructions

Figure 6.2 (a) through (d) describe the installation of the Command Center software.

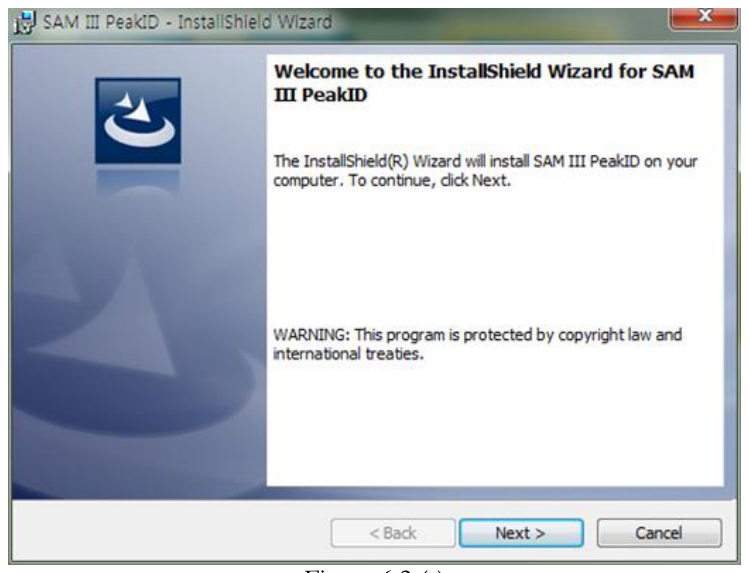

InstallShield Wizard welcome screen
Figure 6.2 (a)

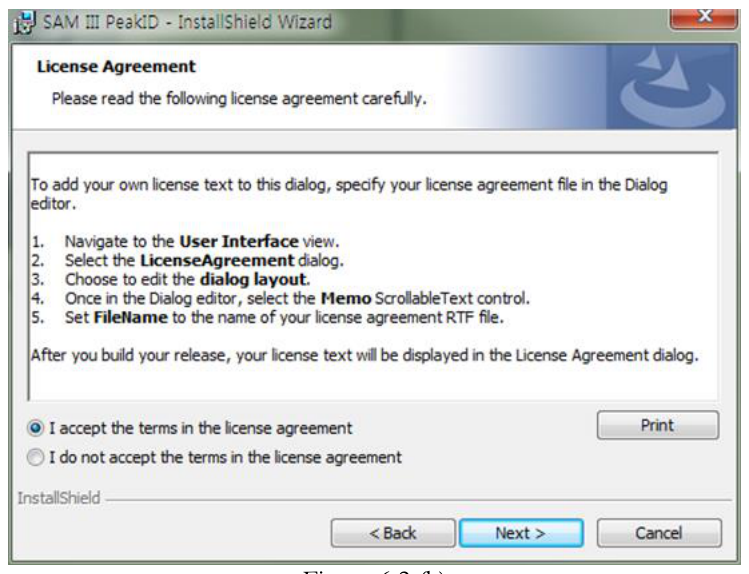

License Agreement screen
Figure 6.2 (b)

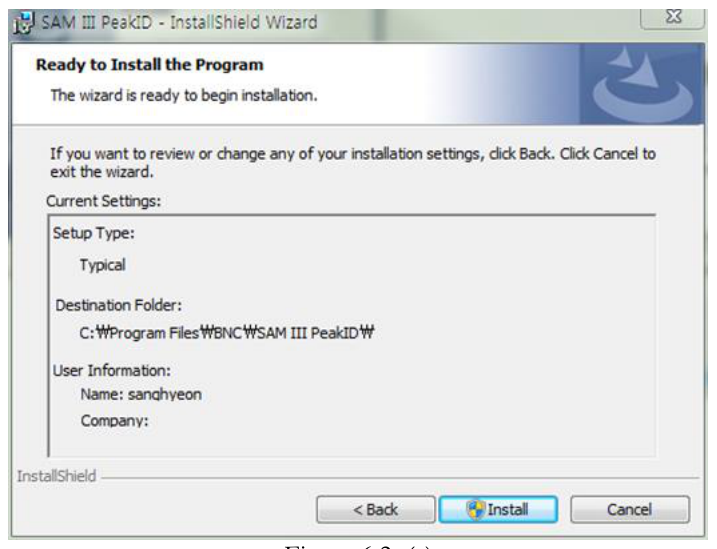

Ready to Install the Program screen with current settings
Figure 6.2 (c)

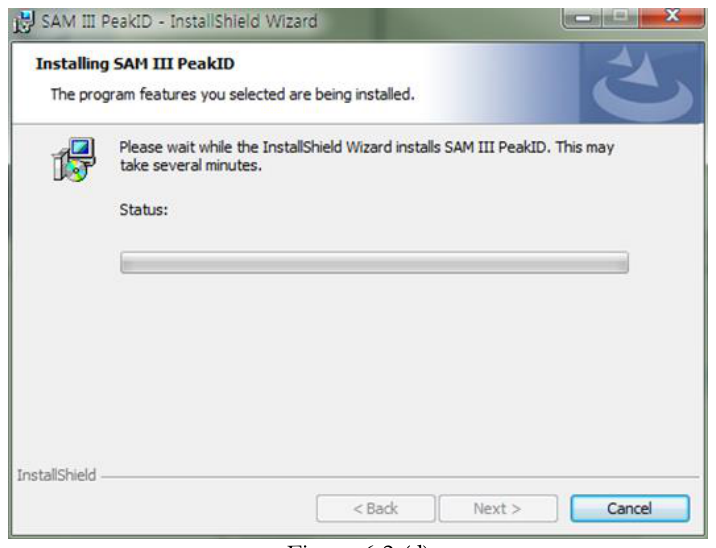

Installing SAM III PeakID progress screen
Figure 6.2 (d)

Primary GUI Description

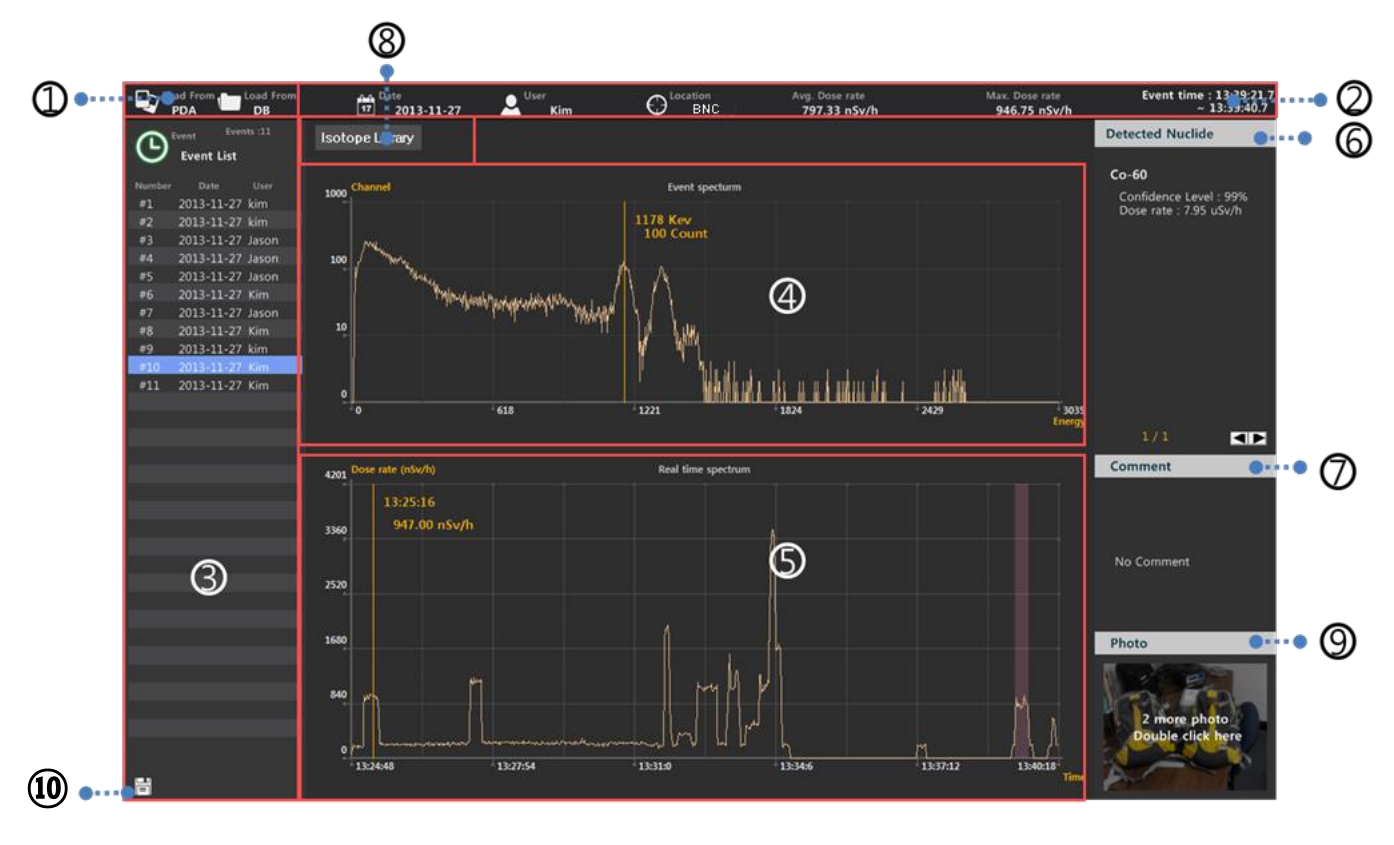

The primary GUI for the command center software is shown in figure 6.3 and described in the table that follows.

Command Center primary GUI with database directory, event list, spectrum, real-time activity, identification and photos
Figure 6.3. Primary GUI and its description
#ItemDescription
1Database directoryData can be transferred to the SAM III PeakID program either from PDA or from the database on PC
2General informationDate, agent, search place and event summary are displayed
3Event listList of event log
4Event SpectrumSpectrum of selected event
5Real Time activityActivity as a function of time
6IdentificationNuclide identification information of selected event
7CommentsAttached comments are displayed
8Nuclide LibraryLink to the nuclide library management tool
9PhotosAttached photos are displayed
10XML saveSave the file spectrum and report as XML file format

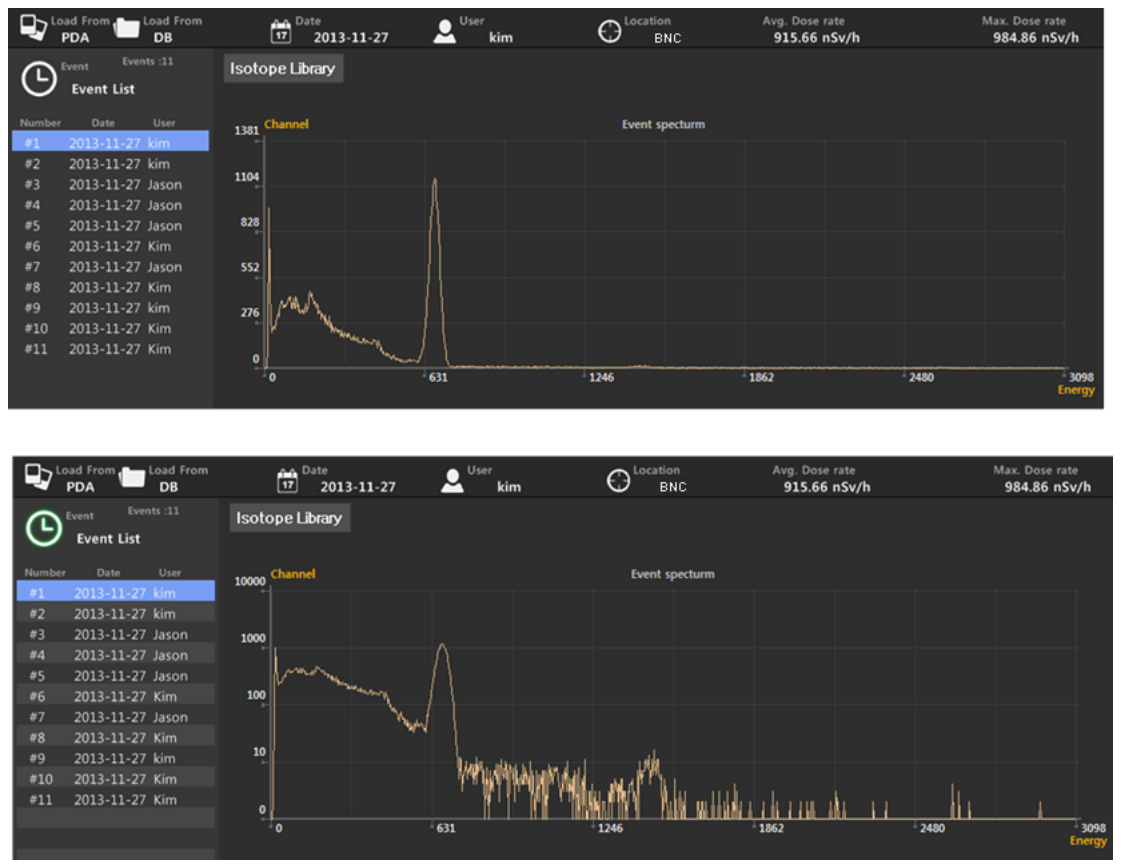

Spectrum Display Scale

The spectrum can be displayed as either a linear or a logarithmic scale. To switch simply click mouse button in the spectral area.

Command Center spectrum shown in linear and logarithmic scale
Figure 6.4. Spectrum display change between linear and logarithm scale

Radionuclide Library Management

The nuclide library is managed by the command center software installed on the PC. Only administrator can upload built-in library to the PDA. To upload a library:

  1. Open the nuclide library by clicking the "Isotope Library" button.
  2. Enter Administrator password and login (figure 6.5).
  3. Select library from the list (figure 6.6 left).
  4. Click "Upload to PDA".

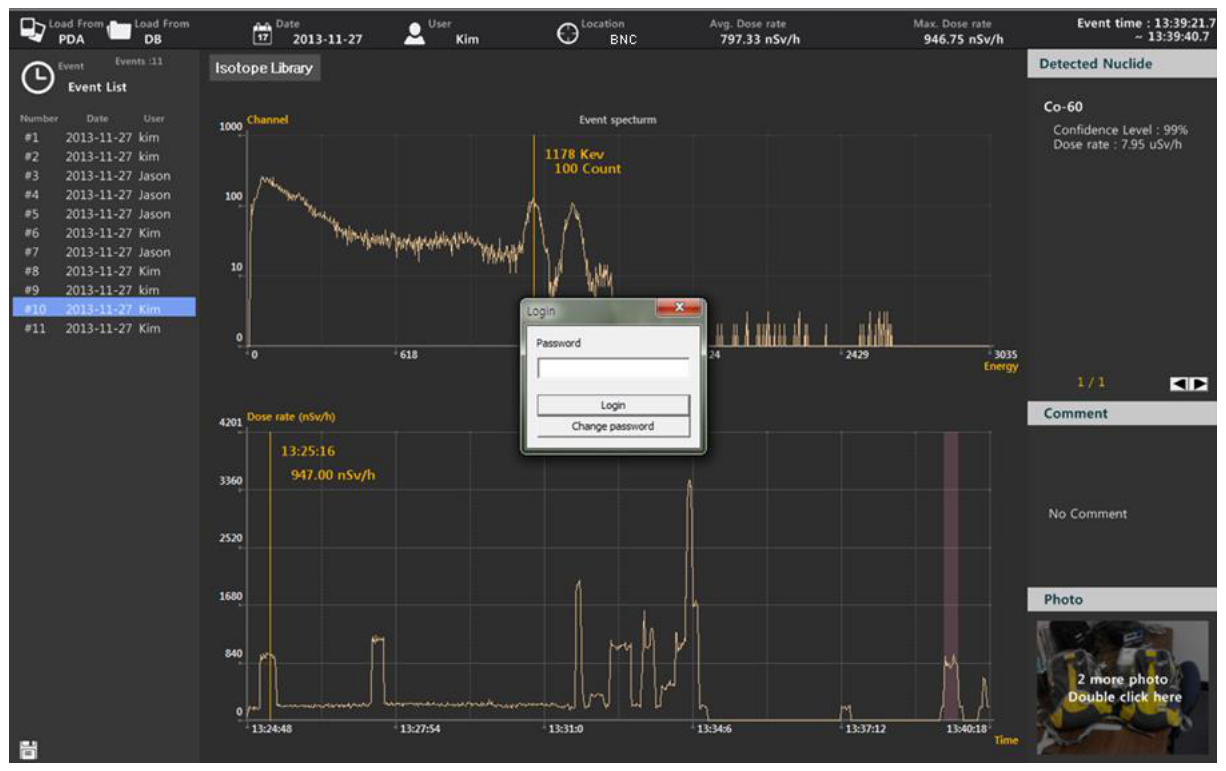

Administrator login dialog for uploading the nuclide library
Figure 6.5. Administrator login for uploading library

In research mode only (using factory defined special password with instruction) user can add, edit, or delete the library as described below.

  1. Open the nuclide library by clicking the "Isotope Library" button. The Nuclide library management screen will appear (figure 6.6 right).
  2. Press "New" button to generate new library or select library from the "Library name" list to modify existing library.
  3. Add nuclide: type in information for the new nuclide and click the "add" button.
  4. Edit nuclide: select a nuclide from the list and edit the information as desired.
  5. Delete nuclide: select a nuclide from the list and click 'delete' button.
  6. Upload to PDA: click "Upload to PDA" button.

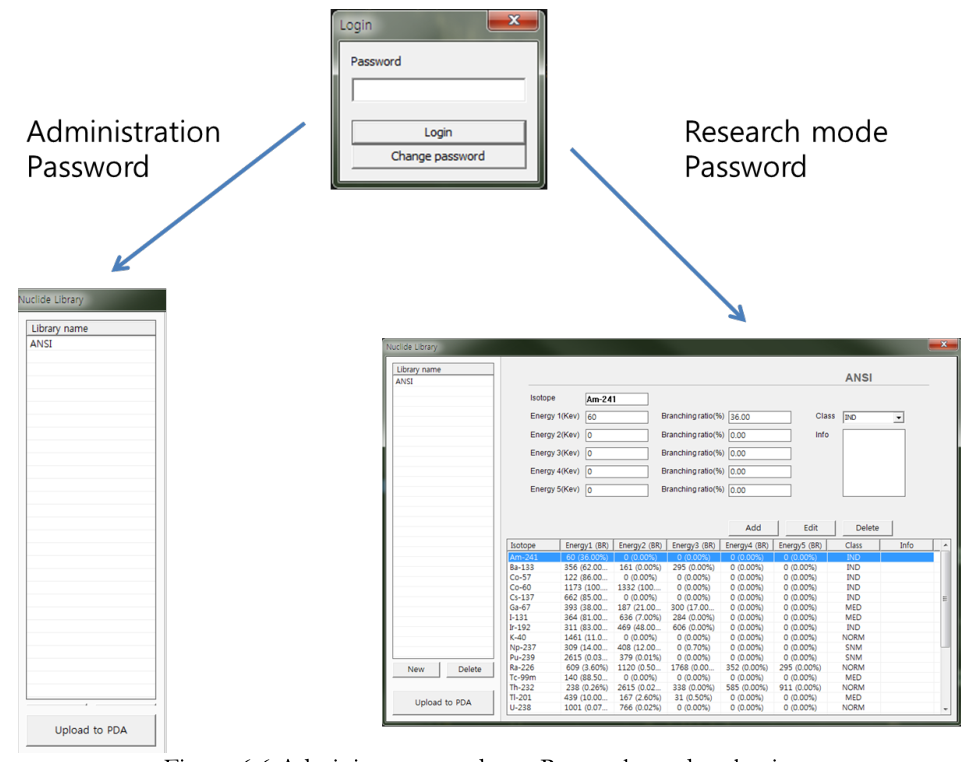

Administrator mode versus Research mode library management selection
Figure 6.6. Administrator mode vs. Research mode selection

Detectable Isotope List

CategoryIsotopes
NORMK-40, Ra-226 and daughters, Th-232 and daughters
MedicalF-18, Cr-51, Ga-67, Mo-99, Tc-99m, Pd-103, In-111, I-123, I-125, I-131, Xe-133, Sm-153, Tl-201
IndustrialNa-22, Co-57, Co-60, Se-75, Rh-106, I-132, I-133, Ba-133, Cs-134, Cs-137, Eu-152, Ir-192, Am-241
SNMU-233, U-235, U-238, Pu-239, Pu-241, Np-237

Table 6.1. Detectable Isotope List

XML File (ANSI42.42) Conversion

The spectrum in the event log can be saved in the standard ANSI42.42 XML file format. The procedure for saving such a file is described below.

  1. Select the event from the event list and click the disk icon in the lower left corner of the screen. The destination directory screen will appear (figure 6.6 below).
  2. Browse to, then select the desired directory and click "Save".

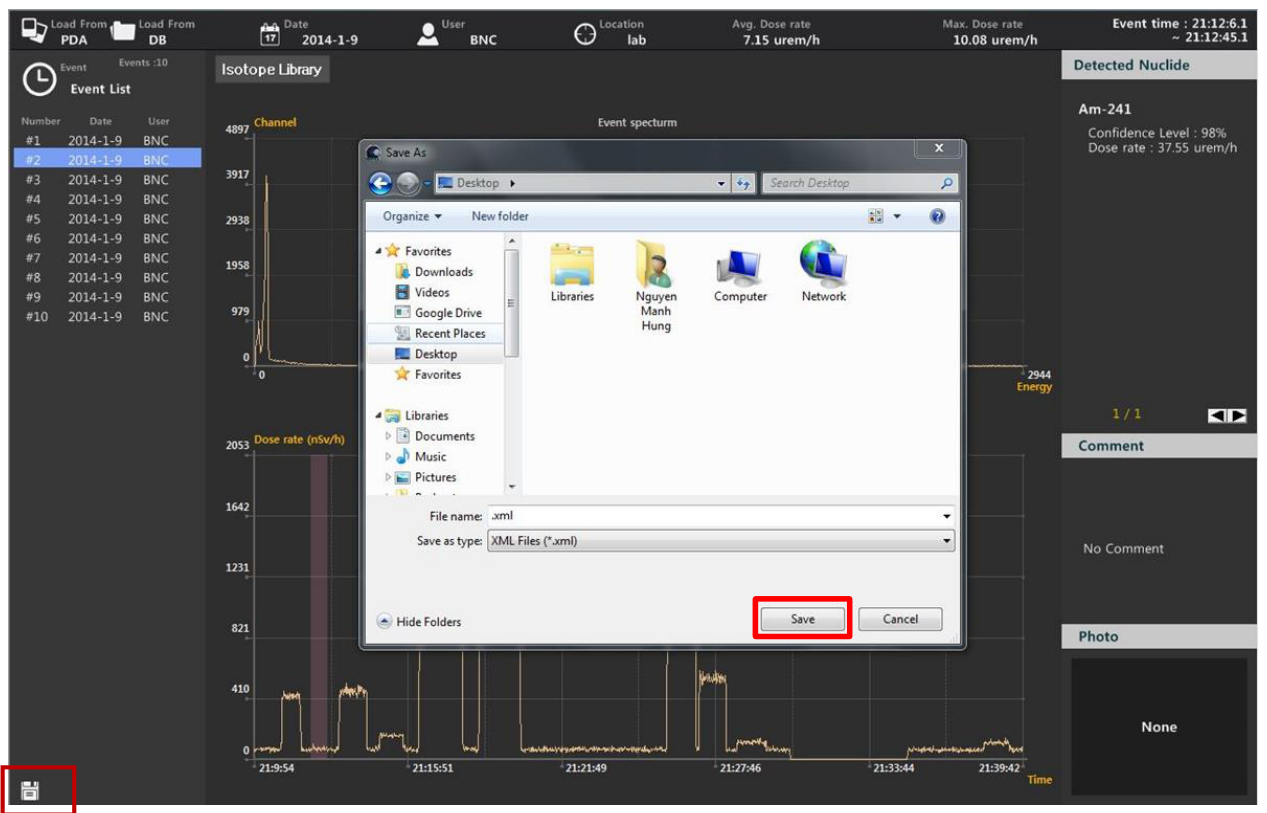

Save as ANSI42.42 XML file format with destination directory browser
Figure 6.6. Save as XML file format example

Step by Step Instruction for Command Center SW Operation

Step 1. Event log download from PDA to PC

  1. Open 'SAM III PeakID' software.
  2. Click "Load from PDA".
  3. The event log now downloads and the event list is displayed on the "event list" window.
  4. Select an event on the list. The spectrum is displayed on the "Event Spectrum" window.
  5. Time and duration of the selected event are highlighted on the "Real time activity" window.
  6. Nuclide identification information for the selected event is displayed in the "Detected Nuclide" window.

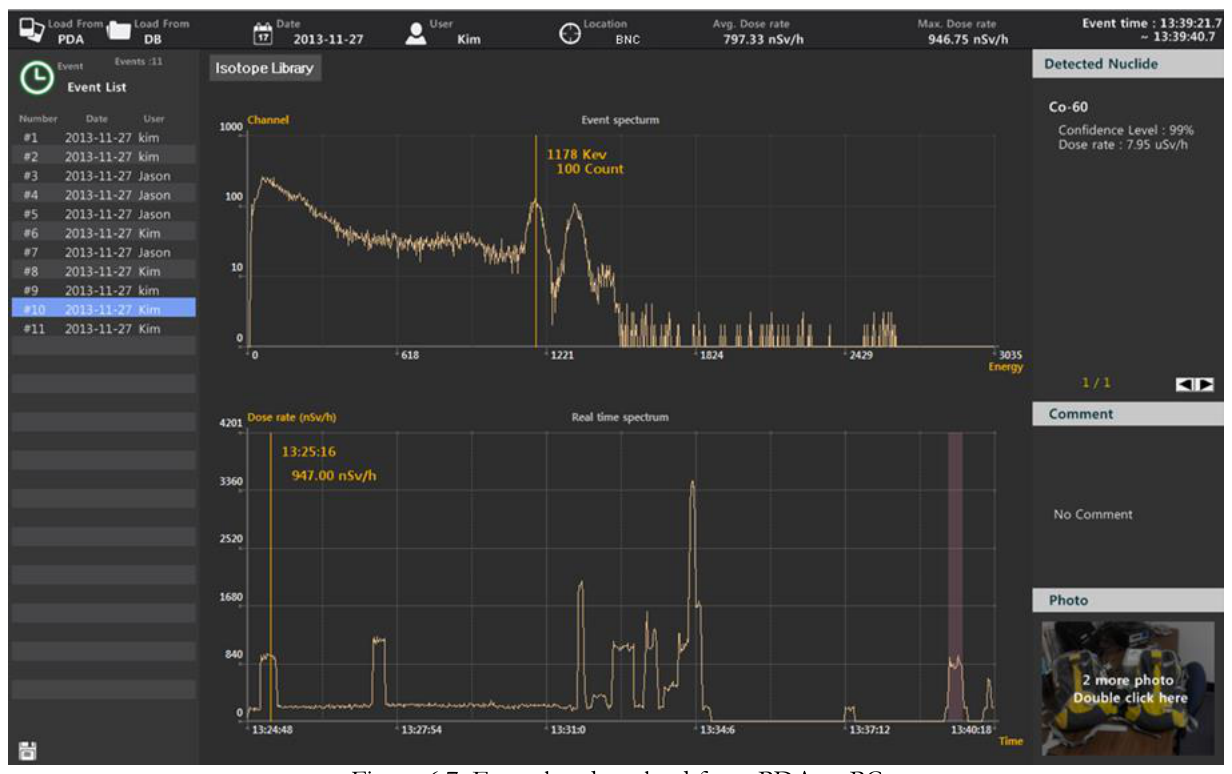

Event log download from PDA to PC in the Command Center software
Figure 6.7. Event log download from PDA to PC
The command center software automatically downloads the event log information to the event log database and deletes the event log from the PDA.

Step 2. Event analysis from the database

All the events collected from multiple units may be stored in a single database and managed by the command center software. Display and analysis of the events in the database do not require that a PDA is connected to the PC.

  1. Click "Load from DB". The database folder information popup appears.
  2. Click on the folder of interest. Sub-folders are sorted according to connected SAM 950 devices.
  3. Select the sub-folder for the desired SAM 950 unit.
  4. The list of event(s) for the selected folder is displayed in the "Event list" window.
  5. Select the desired event from the list. The spectrum will appear in the "Event Spectrum" window.
  6. The time of day and acquisition time are highlighted in the "Real time activity window".

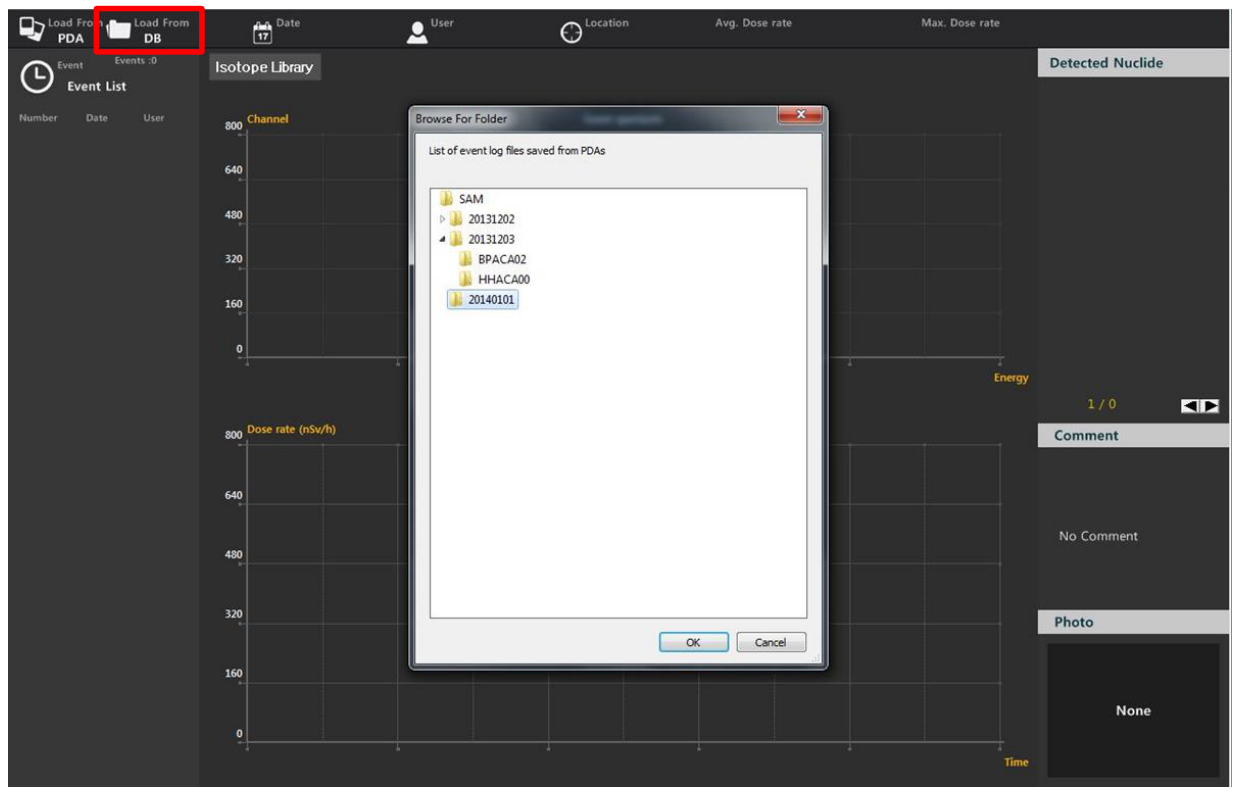

Event log download from the database with folder browser
Figure 6.8. Event log download from database
To delete folder or sub-folder, select folder of interest and right click on mouse. And select delete command. Event Database contains folders and subfolders named by event dates and unit name, respectively.

7Reminders & Useful Tips

  • Do not open the cover. The servicing of the unit should only be handled by BNC qualified/trained personnel.
  • Do not connect the PDA to the PC (USB cable) while the PDA-SAM 950 is in operating status.
  • Turn off unnecessary PDA applications to optimize the performance of PDA-SAM 950 communication and operation.
  • Be familiar with the PDA operation. Please refer to the Samsung Galaxy Player user manual.

8Contact

Berkeley Nucleonics Corporation

Document Version: v1.5  |  Print Code: 52028210
